| Brand Name: | Juneng |
| Model Number: | LWS450 |
| MOQ: | 1 set |
| Price: | USD25000-100000/set |
| Delivery Time: | 50 work days |
| Payment Terms: | L/C, T/T |

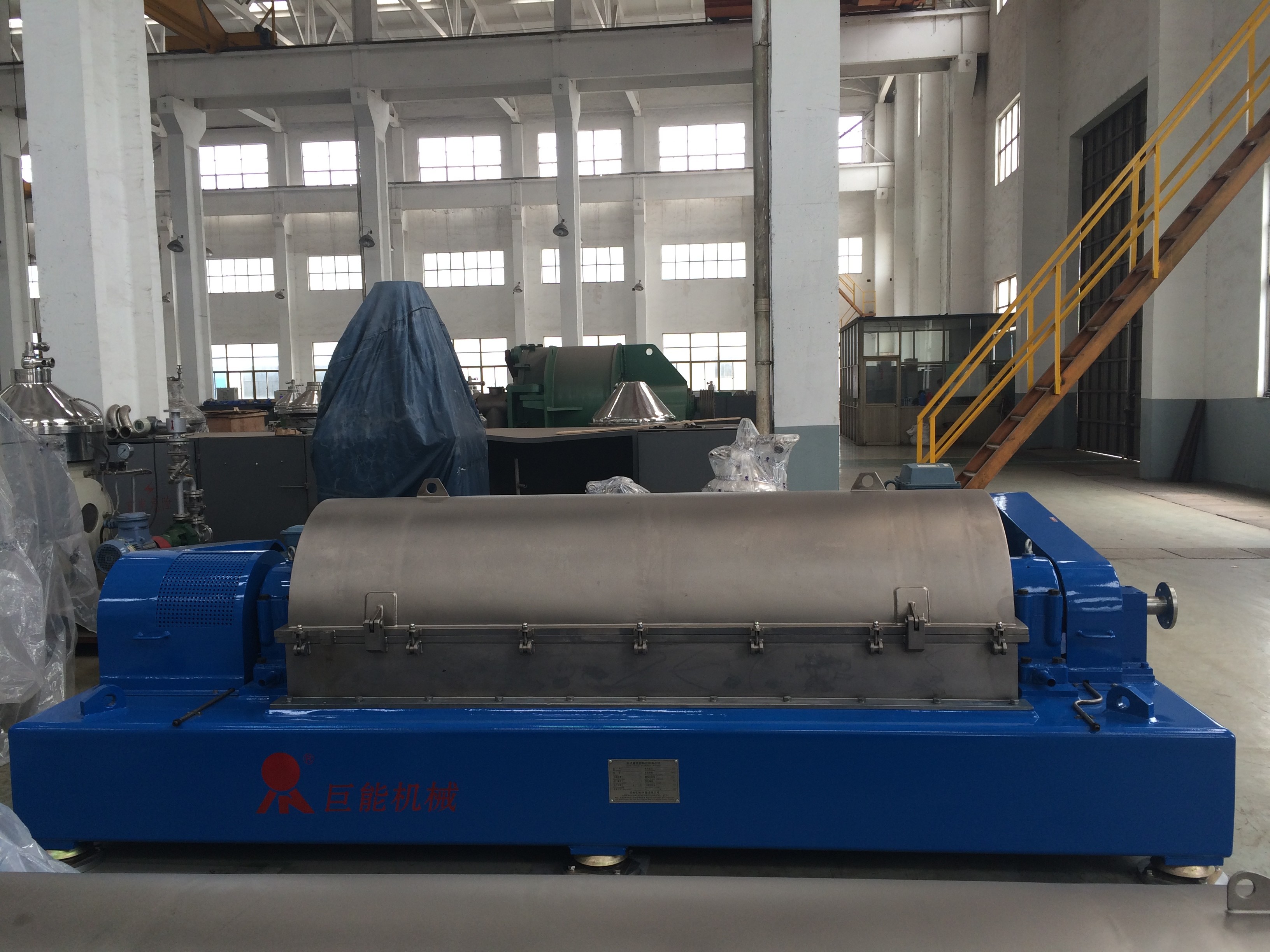

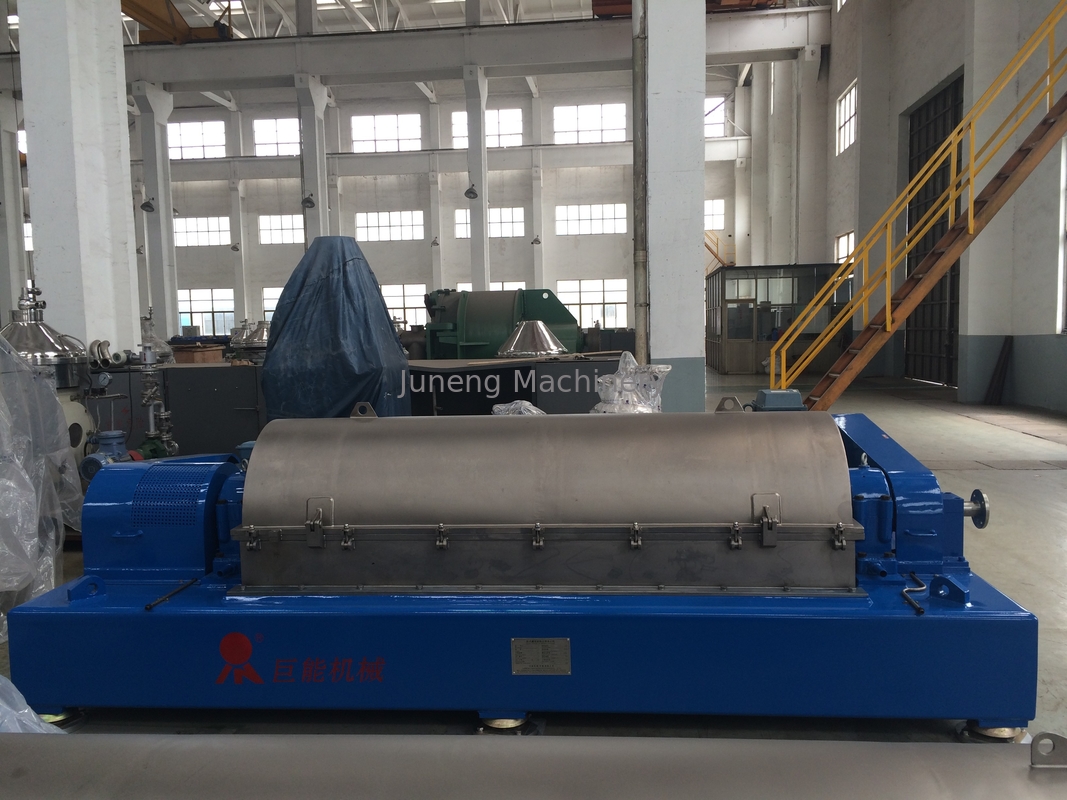

Horizontal centrifuge for kitchen waste collection, transportation and disposal
1.Product Description
Decanter centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference.
The centrifuges which made by out factory can clarify, dehydrate and classify the suspensions with 0.002-3 mm solid-phase particles and thickness range at 0.5~40%. The product can be classify into two type LW-counter-current and parallel-current base on its structure feature.
According to feed feature, product can be divide into LW two-phase separator, LWS three-phase separator. It is suitable for separating different feed under different process condition, and widely use in pharmaceutical, food, chemical, light industry, environmental protection industry etc.
2.Technological parameters
| Model | LWS450 |
| Drum inner diameter(mm) | 450 |
| Effective length of drum(mm) | 2551 |
| Speed of drum(r/min) | 3600 |
| Protection class of motor | IP55 |
| Insulation class | F |
3.Working principle
Operation principle : Drum and screw rotate at a certain different speed . The feed enters the drum through a stationary inlet tube and is accelerated smoothly by an inlet rotor . The resulting centrifugal forces make the solids collect on the wall of the drum . Screw conveyor continual moving the solid to conical end of drum , discharge through discharge port after dried in the dry area , however , light liquid forms the inner layer and effusion through overflow port of drum , then discharge through liquid outlet port .
4.Applications
1)Washing and dehydration of starch
2) Dehydration of soybean wheat proteins
3) Dehydration of fish meal and fish
4) Dehydration of brewers' grains
5) Purification of juice and dehydration of fruit fiber
6) Separation and purification of animal and vegetable oil
5.Company profile
We are devoted to centrifuges and dryers, which could used in various industries, such as environmantel protection, food industry, chemical industry and pharmaceutic industry etc.
