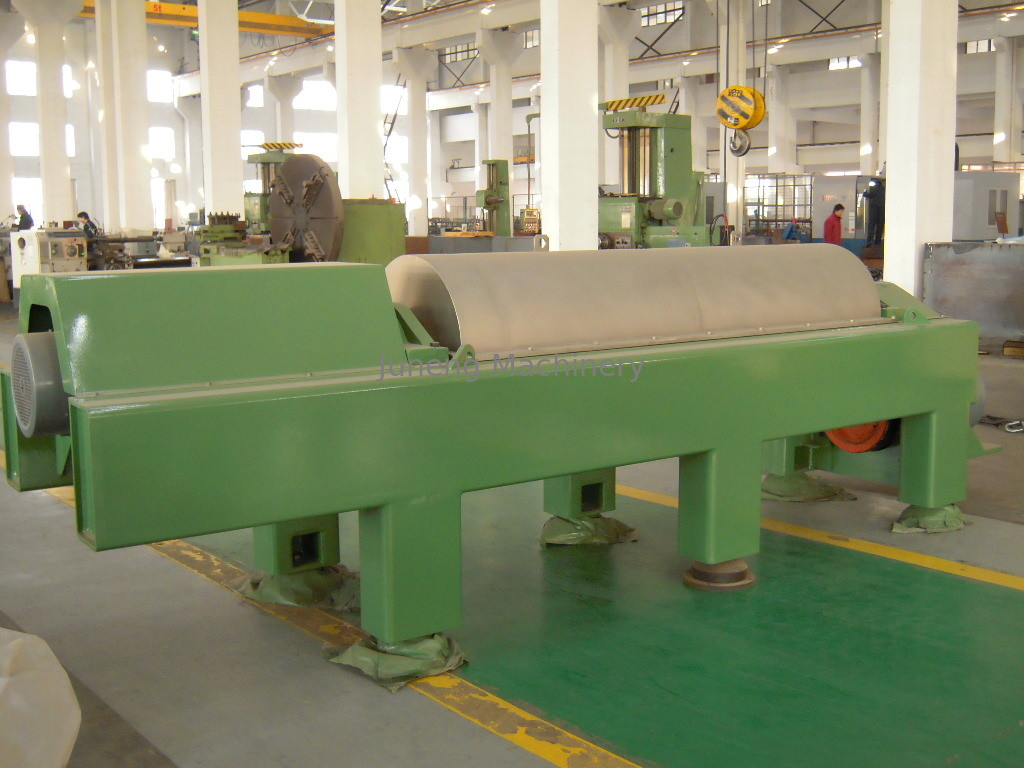

Scroll Discharge Decanter Centrifuge For Waste Water

Place of Origin Jiangsu,China
Brand Name Juneng
Certification ISO/CE
Model Number LW
Minimum Order Quantity 1 set
Price USD25000-100000/set
Packaging Details seaworthy packing
Delivery Time 50 work days
Payment Terms L/C, T/T
Supply Ability 20 sets/month
Product Details
Product Name China Juneng Scroll Discharge Decanter Centrifuge For Waste Water Voltage Design For Different Country
After-sales Service Provided Online Support,Video Technical Support Weight According To The Model
Dimension(l*w*h) Depend On Model Choosing Power(w) According To The Model
Application Waste Water Treatment,waste Water And So On
High Light

Discharge Decanter Centrifug

,

Decanter Centrifuge For Waste Water

,

Scroll Decanter Centrifuge

Leave a Message
Product Description

China Juneng scroll discharge decanter centrifuge for waste water



1.Product description



Decanter centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference.

The centrifuges which made by out factory can clarify, dehydrate and classify the suspensions with 0.002-3 mm solid-phase particles and thickness range at 0.5~40%. The product can be classify into two type LW-counter-current and parallel-current base on its structure feature.

According to feed feature, product can be divide into LW two-phase separator, LWS three-phase separator. It is suitable for separating different feed under different process condition, and widely use in pharmaceutical, food, chemical, light industry, environmental protection industry etc.

Scroll Discharge Decanter Centrifuge For Waste Water 0





2.Product structure



With the decanter centrifuges from JUNEGN MACHINERY , two liquids with different specific gravities can be individually separated from solids.



Scroll Discharge Decanter Centrifuge For Waste Water 1





3.Main specification and technological parameters

Model Drum diameter(mm) Inlet liquid capacity(m³/h) Power of main/auxiliary motor(Kw) Weight(Kg) Dimension(max)(mm)
LW250W 250 1~5 11/4 1300 2750*720*900
LW350W 350 5~18 22/5.5 2200 3412*1090*950
LW450W 450 5~28 30/11 3200 4380*1080*1360
LW520W 520 10~35 45/11 5000 4840*1160*1465
LW550W 550 10-45 55/11 6500 5038*1388*1578
LW650W 650 20-60 90/15 8500 5100*1800*1560
LW720W 720 35-85 110/22 12000 5200*1900*1620







4.Process flow



Scroll Discharge Decanter Centrifuge For Waste Water 2





5.Our company



Juneng Machinery (China) Co., Ltd in Nanjing

We are devoted to centrifuges and dryers, which could used in various industries, such as environmantel protection, food industry, chemical industry and pharmaceutic industry etc.

 Scroll Discharge Decanter Centrifuge For Waste Water 3

Scroll Discharge Decanter Centrifuge For Waste Water 4

Scroll Discharge Decanter Centrifuge For Waste Water 5
