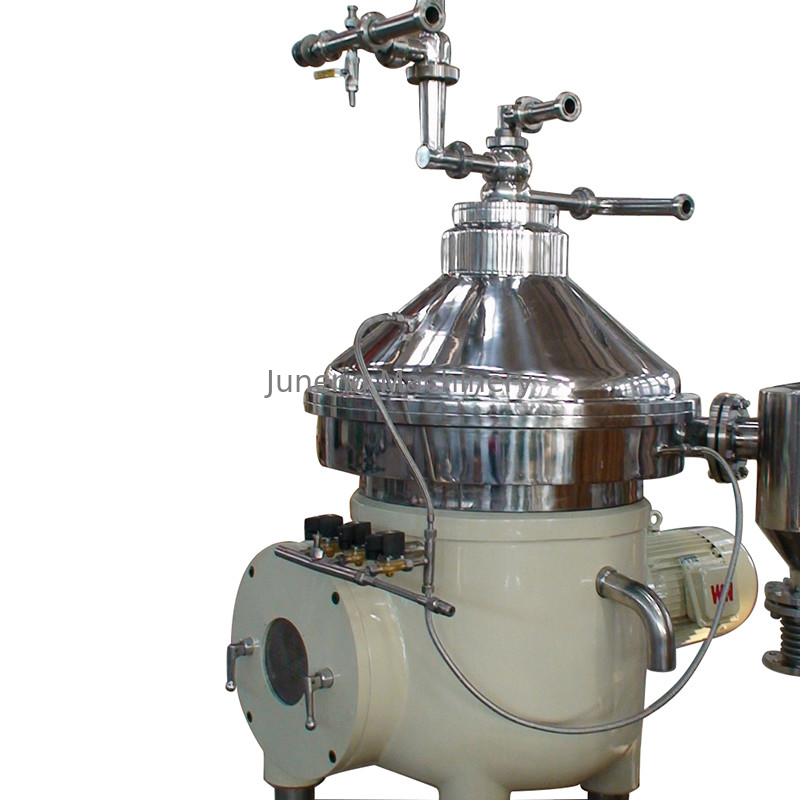

Continuous Operation Milk Cream Separator Disc Centrifuge Automatic

Brand Name:	Juneng
Model Number:	DHNZ360
MOQ:	1 SET
Price:	USD5000-15000/set
Delivery Time:	30 days
Payment Terms:	TT, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu Yixing

Certification:

CE/ISO

Product Name:

Automatic Continuous Operation Milk Cream Disc Centrifuge Separator

Core Components:

PLC, Engine, Bearing, Motor

Voltage:

440V

Power:

15000

Weight:

500kg

Dimension(L*W*H):

1800*1200*1800

Motor Power:

7.5kw-22 Kw

Capacity:

500-10000LPH

Packaging Details:

wooden case

Supply Ability:

40 set / months

Highlight:

Milk Cream Disc Centrifuge Separator

Automatic Milk Cream Disc Separator

Continuous Milk Cream Disc Centrifuge

Product Description

Automatic continuous operation milk cream disc centrifuge separator

1.Product description

With the gradual increasing in people's living, the dairy and beverage consumer market also continues to expand, as a result the people's attitudes of consumer also increase strongly from "drink milk" to "drink good milk". So the advanced equipments are very imprtant in the production process.The centrifugal separator from Juneng has the special design for the centripetal pump and inlet/outlet port will create a soft separation environment for the material to ensure the active ingredient in the material is not destrooyed and made the nutritional value and freshness as well as original flavor keep well.

Juneng Separator enable separate the extreme tiny ( as less than 1mm) solid particles which dispersed in suspensions from the liquid phase out.

Milk cream separator is mainly used in milk processing industry, continually separate out cream and defatted milk from pure milk, at the same time remove the impurities and sediments, and it also can realize milk standardization according to fat content.

2.Technical parameter

DHN model is applied to milk clarify industry
Model	Capacity L/H	Inlet Pressure	Outlet pressure	Weight	Dimension mm
DHN360	2000-5000	0.05 Mpa	0.1-0.35 Mpa	1200 kg	153011501500
DHN470	5000-10000	0.05 Mpa	0.1-0.4 Mpa	1600 kg	180012001750
DHN550	10000-20000	0.05 Mpa	0.1-0.4 Mpa	2300 kg	195015501960
DHN616	25000-35000	0.1 Mpa	0.3 Mpa	3000 kg	218517282082

DHNZ model is applied to milk degrease industry
Model	Capacity L/H	Inlet pressure	Outlet pressure	Weight	Dimension mm
DHNZ204	500-1000	0.05 Mpa	0.1-0.2 Mpa	520 kg	8108501350
DHNZ360	1000-3000	0.05 Mpa	0.1-0.2Mpa	1200 kg	153011501500
DHNZ470	3000-7000	0.05 Mpa	0.1-0.2 Mpa	1600 kg	180012002030
DHNZ550	5000-10000	0.05 Mpa	0.1-0.2Mpa	2300 kg	195015501960

3.Working principle

2 Phase Separator working principle for milk clarify industry

Clarification mean two phase separation. The materials are feeding into the heart parts of this machine, the inside of the bowl. Under the action of strong centrifugal force, the impurity will be removed from the raw material then get the clean milk.

3 Phase Separator working principle for dairy skimming

The disc separator is specially used for the two-phase and three-phase separation. The two-phase separation is to separate the s uspended solid from liquid or s eparate two liquids which have the different specific gravity and are immiscible. The three-phase separation is to separate the two immiscible liquid phases and a phase of solid at the same time .

Continuous Operation Milk Cream Separator Disc Centrifuge Automatic 0

4.Application

1) Hot milk separation

2) Cold milk separation

3) Whey protein separation

4) Buttermilk separation

5) Dairy whey clarification

6) Disinfection of dairy products

7) Casein

8) Syrup clarification

9) Vegetable juice clarification

10) Tea drinks, coffee, Beer and other liquid clarification

5.Detailed images

5.1 Parts in the rotating bowl drum

ll parts & components contacting materials are made of stainless steel, can effectively minimize the corrosion from the materials to be separated, and meet hygienic requirements for food.

The separator bowl has gone through precise dynamic balance, it can run steadily, with low vibration and noise at operation.

Continuous Operation Milk Cream Separator Disc Centrifuge Automatic 1

5.2 Vertical shaft and horizontal shaft
All the parts are made of stainless steel
High quality machining
Refining Machine

Continuous Operation Milk Cream Separator Disc Centrifuge Automatic 2

5.3 Drum

Material	Super stainless steel
Function	Running in High speed
Assembly	Precision assembly
Speed	5000-12000 RPM

Continuous Operation Milk Cream Separator Disc Centrifuge Automatic 3

6.Our company

6.1 Commercial cooperation and Exchange

Over the years, Junegn is focusing on international collaboration in technical aspect and commercial in order to learn better on the advance management system and experience from relevant experts of the United State of America, Canada, Germany, Russia and South-East Asia countries. The Company always believe that, one day, Juneng can becomes a Giant in the industry in China and also in worldwide.

Continuous Operation Milk Cream Separator Disc Centrifuge Automatic 4

6.2 Production workshop

The largest production factory in China in Separator, Centrifuge and Filter

Continuous Operation Milk Cream Separator Disc Centrifuge Automatic 5
