NCB Series Centrifugal Transfer Pump Carbon Steel Diesel Water Internal Gear

Place of Origin Jiangsu,China
Brand Name Juneng
Certification ISO/CE
Model Number NCB 18/0.7
Minimum Order Quantity One set
Price USD$ 200-20000 / set
Packaging Details Standard Wooden Case
Delivery Time 60 days
Supply Ability 40 set / months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name NCB Series Carbon Steel Liquid Transfer Diesel Water Internal Gear Pump Pressure Low Pressure, 0.5Mpa
Material Carbon Steel Motor Power 5.5kw
Capacity 1000L-32000LPH Speed 500-360 RPM
Weight 140 Kg
High Light

NCB Series Centrifugal Transfer Pump

,

Carbon Steel Centrifugal Transfer Pump

,

Diesel Water Internal Gear Pump

Leave a Message
Product Description



NCB series carbon steel liquid transfer diesel water internal gear pump





1.Product description:



NCB Series Internal Gear Pump is a volumetric pump for transporting liquid, which has advanced structure and good performance. This pump employs the inside engagement for gears, the pitch circles of both inside and outside gear are at one side, another side is separated by "swing link" on the pump cover and forms up feeding and discharging chamber. The driving inside gear on the main shaft drives the pinions to rotate in same direction, in the feeding chamber, the gear teeth are separated each other, this forms up negative pressure surface, so it sucks in liquid. Gear teeth enter into the engagement surface continuously in the discharging chamber and extrude liquid out.
The pump is applicable for various applications. The materials transported can be light volatile liquid to heavy viscous liquid, and can be high temperature media. During operation, the pump will not besiege oil, it runs smoothly, with low noise. It is of compact size, high flow, long service life, and easy to maintain.

NCB Series Centrifugal Transfer Pump Carbon Steel Diesel Water Internal Gear 0




2.Product Specifications:



Model
Flow
m3/h
Pressure
Mpa
Motor Model

Motor Power
KW
Assembly style
NCB1.2/0.3
1.2
0.3
Y90L-6
1.1
Belt driven
or
Coupler
driven
or gear box driven
NCB1.8/0.3
1.8
0.3
Y100L-6
1.5
NCB3/0.3
3
0.3
Y132S-8
2.2
NCB6/0.5
6
0.5
Y100L-4
3
NCB8/0.5
8
0.5
Y100L-4
3
NCB12/0.5
12
0.5
Y132M-4
4
NCB16/0.5
16
0.5
Y160M-6
5.5
NCB20/0.5
20
0.5
Y160L-6
7.5
NCB12/0.7
12
0.7
Y160M-4
7.5
NCB18/0.7
18
0.7
Y160L-6
11
NCB24/0.5
24
0.5
Y160M-4
11
NCB30/0.5
30
0.5
Y160L-4
15
NCB15/1.5
15
1.5
Y180L-6
15
NCB20/0.7
20
0.7
Y160L-6
11
NCB25/0.7
25
0.7
Y180L-6
15
NCB35/0.5
35
0.5
Y160L-4
15
NCB40/0.5
40
0.5
Y200L-6
18.5
NCB50/0.5
50
0.5
Y200L-6
18.5
NCB60/0.5
60
0.5
Y200-6
22
NCB70/0.5
70
0.5
Y225M-6
30
NCB80/0.5
80
0.5
Y250M-6
37
NCB100/0.5
100
0.5
Y280S-6
45
NCB120/0.5
120
0.5
Y280M-6
55





3.Advanced structure
1)Small size
2) Large Flow
3) Low noise
4) Smoothly running
5) Long service life
6) Easy to maintain





4.Detailed images

We have different kinds of models.

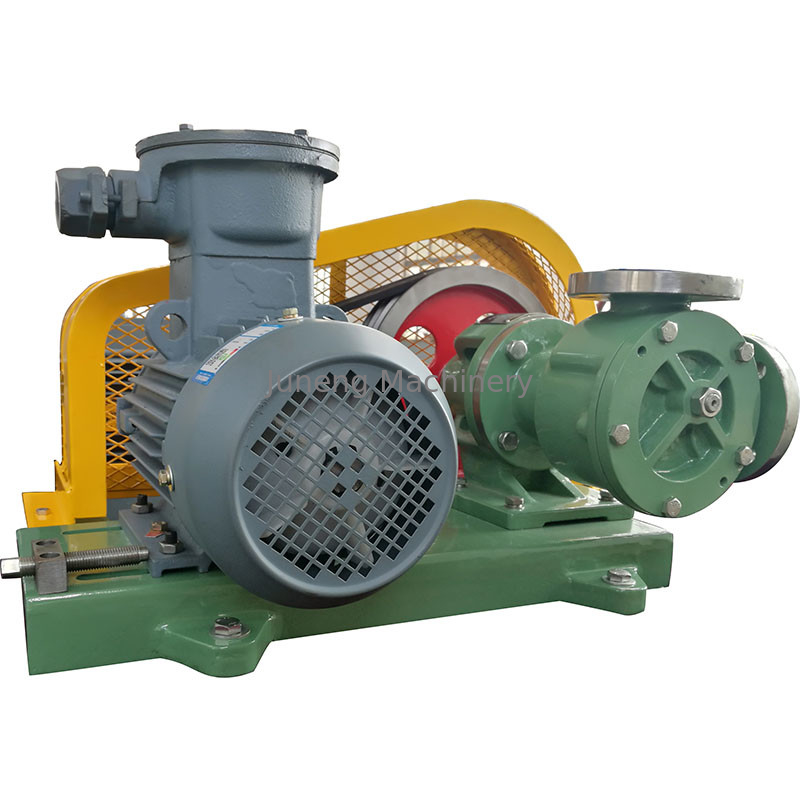

1)Carbon steel and stainless steel for choosing Belt driven

NCB Series Centrifugal Transfer Pump Carbon Steel Diesel Water Internal Gear 1



 2)Coupling driven









NCB Series Centrifugal Transfer Pump Carbon Steel Diesel Water Internal Gear 2



 Pump Parts
Name: Pump cover and small pinion
Brand: Juneng
Material : stainless steel or carbon steel







NCB Series Centrifugal Transfer Pump Carbon Steel Diesel Water Internal Gear 3



 Pump Parts
Name : Large gear and shaft
Material: stainless steel or carbon steel



NCB Series Centrifugal Transfer Pump Carbon Steel Diesel Water Internal Gear 4





5.Appliation scope

It is applied to convey liquid from all kinds of light or volatility to deep sticky, even to half-solid. It is widely used in petroleum , chemistry, oil, paint etc.



6.Packing & Delivery

NCB Series Centrifugal Transfer Pump Carbon Steel Diesel Water Internal Gear 5

Packaging







Packaging Details

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

NCB Series Centrifugal Transfer Pump Carbon Steel Diesel Water Internal Gear 6

Packaging







Packaging Details

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.















7.Certifications

NCB Series Centrifugal Transfer Pump Carbon Steel Diesel Water Internal Gear 7





8.Our services

NCB Series Centrifugal Transfer Pump Carbon Steel Diesel Water Internal Gear 8
NCB Series Centrifugal Transfer Pump Carbon Steel Diesel Water Internal Gear 9

Pre-Sales Service                                                          After-Sales Service

 * Inquiry and consulting support.                                    * Training how to instal the machine, training how to use the machine.
* Sample testing support.                                                * Engineers available to service machinery overseas.
* View our Factory.
