Continuous Horizontal Decanter Tricanter Centrifuge Stainless Steel Olive Oil

Place of Origin Jiangsu,China
Brand Name Juneng
Certification ISO/CE
Model Number LW
Minimum Order Quantity 1 set
Price USD25000-100000/set
Packaging Details seaworthy packing
Delivery Time 50 work days
Payment Terms L/C, T/T
Supply Ability 30 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Continuous Stainless Steel Olive Oil Decanter Centrifuge Tricanter Centrifuge In Discount Voltage Design For Different Country
Power 4 - 90 Kw Weight Design For Different Country
Discharge Self-cleaning (PLC Control) Operation Automatic Continuous Operation
Material Stainless Steel
High Light

Continuous Horizontal Tricanter Centrifuge

,

Olive Oil Tricanter Centrifuge

,

Decanter Tricanter Centrifuge

Leave a Message
Product Description

Continuous stainless steel olive oil decanter centrifuge tricanter centrifuge in discount



1.Product description

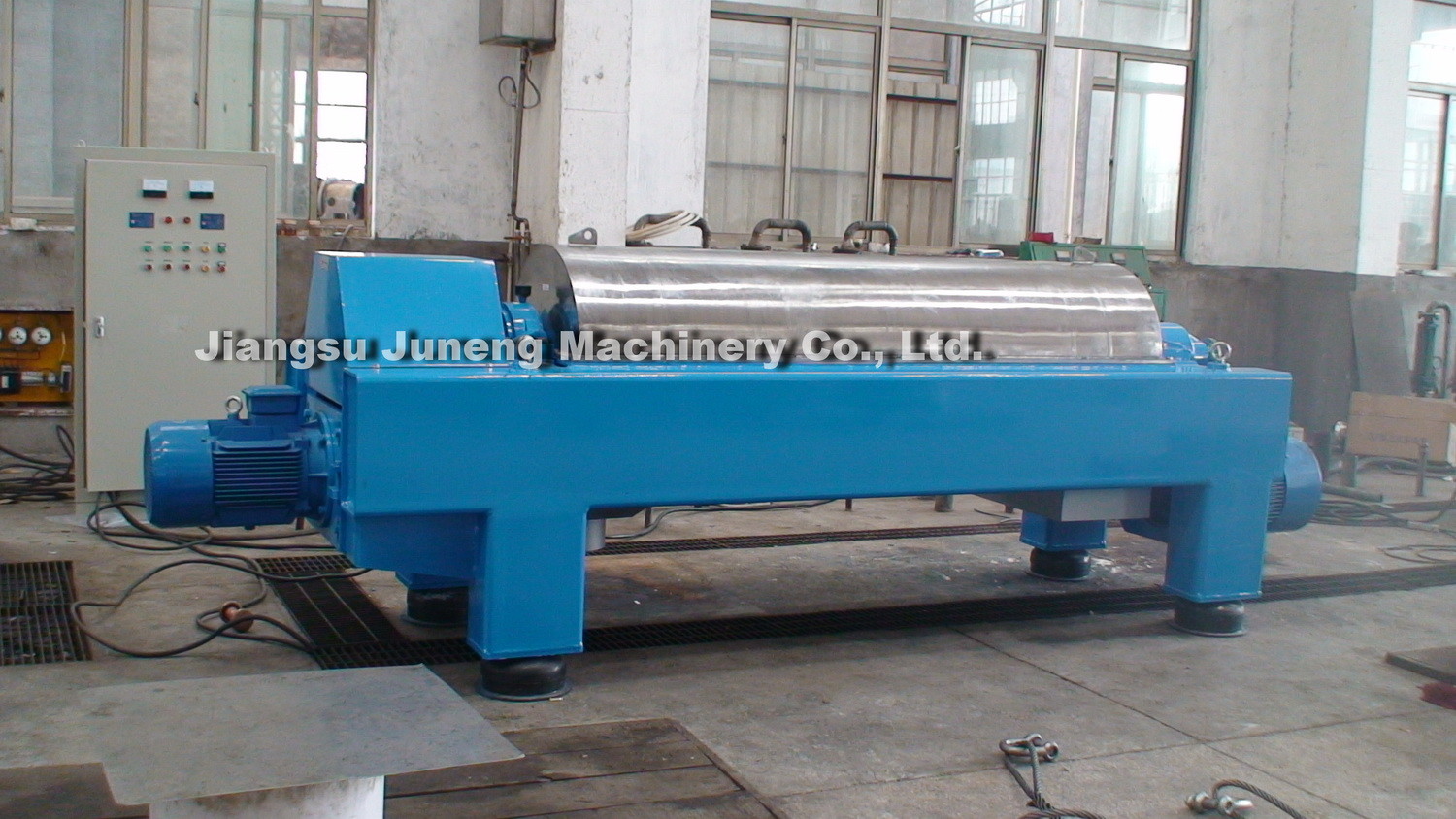

Continuous Horizontal Decanter Tricanter Centrifuge Stainless Steel Olive Oil 0

Olive oil decanter centrifuge

It applies to carry out separating liquid and solid of the suspensions material which weight thickness of solid phase ≤ 10% (or volume concentration of ≤ 50% after settlement24 hours) and equivalent diameter of solid-phase particle ≥ 0.005 ~ 2 mm, liquid-solid density difference ≥ 0.05 g / cm 3, such as calcium carbonate, calcium sulfate, polyvinyl chloride, lees, bean dregs , soy protein, paper pulp, vegetable oil and palm oil, kaolin, white mud, sludge from environmental protection industry and also applies to various types of chemical products which use settlement centrifugal separation principle, these material all can be carried out effectively.

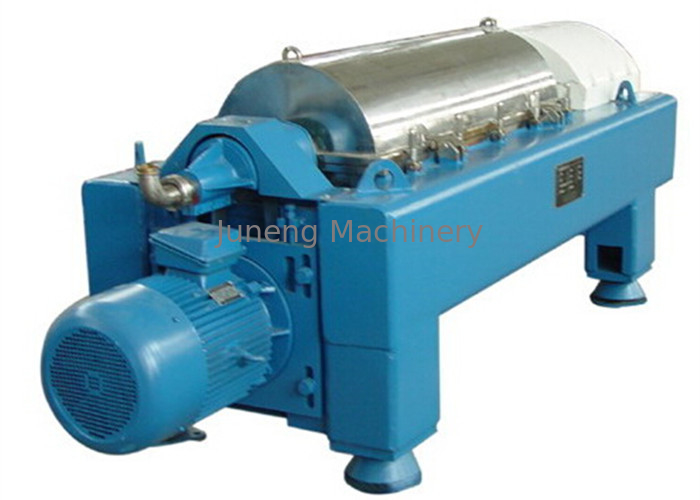

 Continuous Horizontal Decanter Tricanter Centrifuge Stainless Steel Olive Oil 1

The material(crude palm oil) passing through the center feeding pipe into the centrifuge(axid feed). Under the action of centrifugal force and material pressure,it passes through the distributor distributed to the drum. The dense solid phase is deposited on the drum wall, and is transported to the drum body cone by auger delivery then falls from the discharge port to the solid collector box.At the same time, the relatively light liquid phase(processed palm oil) is not moving with the spiral because of its fluidity, but through the outlet overflow into the liquid aggregate box.





2.Model



Model

LW250

Drum diameter mm

250

Inlet liquid capacity㎥/h

1-4

Power of main/auxiliary motor Kw

11/4

Continuous Horizontal Decanter Tricanter Centrifuge Stainless Steel Olive Oil 2





3.Other successful applications



= waster water treatment

= oil sludge

= chemistry

= pharmacy
= biotechnology

= vegetable oil
= food and beverage industry
= animal fat

= regenerative fuels

= brewer's grain







4.Packing & Delivery

Continuous Horizontal Decanter Tricanter Centrifuge Stainless Steel Olive Oil 3

Packaging

 Transport

Ocean shipping sea transportation transport by sea

 Container

20'GP, 40'HC or Shipping LCL

Packaging Details

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.





5.Company profile



5.1 Juneng Machinery (China) Co., Ltd in Nanjing

We are devoted to centrifuges and dryers, which could used in various industries, such as environmantel protection, food industry, chemical industry and pharmaceutic industry etc.
