| Brand Name: | Juneng |
| Model Number: | GXG |
| MOQ: | 1 set |
| Price: | USD10000-200000/set |
| Delivery Time: | 60 work days |
| Payment Terms: | L/C, T/T |

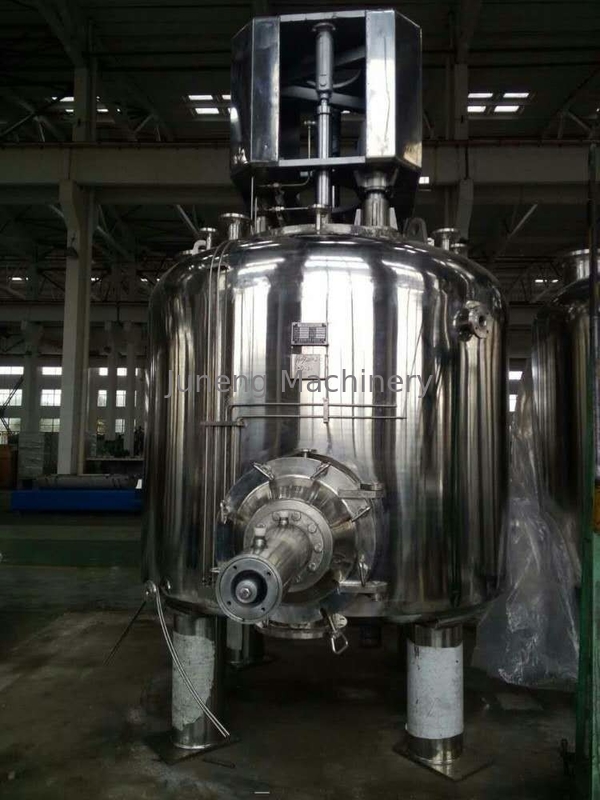

Muti-functions agitated nutsche filtration filtering,washing,drying machine
1.Product description:
GXG series multi-functions filtering, washing , drying (three in one ) machine is a solid-liquid equipment with the functions of filtration, washing, drying reaction and residue discharging automatically.
2.Applications:
It is widely used in fine chemical, petroleum, foodstuff, printing, pharmaceutical industries, Glyphosate, Penicillin and so on.
3.Features of products:
1)Full enclosed filter, no leakage, no pollution
2)Solid-liquid separation can be realized under pressure or vacuum state. Filter cakes evenly distributed when filtering which has good effect.
3)Stirring system can stepless speed regulating and multi-function work. It can enlarge furthest for the cake space, thus filter cake can be fully cleaned; the time of drying is reduced greatly, with high efficiency.
4)Discharge valve can discharge automatically which can lower labor intensity.
5)Especially suitable for the material that large solid content, and recovering liquid phase and solid phase respectively.
6)Adopting horizontal placing filter material, one time completely filtering no remains. Filter material has unique sealing structure which is easy to be changed.
7)Anticorrosion three in one system is made of special material which can be suitable for multiform anticorrosion medium.
8)Stirring, mixing , beating , reacting, washing and multiform process working can be practiced in the body and it can carry out full automatic control.
4.Main technological parameters:
| Model | Filtration area m2 | Shell diameter (mm) |
Work pressure (Mpa) |
Nominal volume (m3) |
Filter cake height (mm) |
| GXG-600 | 0.28 | 600 | -0.1~0.3 | 0.2 | 150 |
| GXG-800 | 0.5 | 800 | -0.1~0.3 | 0.5 | 180 |
| GXG-1200 | 1.1 | 1200 | -0.1~0.3 | 1.3 | 250 |
| GXG-1600 | 2.0 | 1600 | -0.1~0.3 | 2.8 | 350 |
| GXG-2000 | 3.1 | 2000 | -0.1~0.3 | 4.8 | 400 |
| GXG-2400 | 4.5 | 2400 | -0.1~0.3 | 6.5 | 450 |
| GXG-2600 | 5.3 | 2600 | -0.1~0.3 | 8.7 | 450 |
| GXG-2800 | 6.0 | 2800 | -0.1~0.3 | 12 | 450 |
| GXG-3000 | 7 | 3000 | -0.1~0.3 | 13 | 500 |
| GXG-3200 | 8 | 3200 | -0.1~0.3 | 14.5 | 500 |
| GXG-3400 | 9 | 3400 | -0.1~0.3 | 15 | 500 |
| GXG-3600 | 10 | 3600 | -0.1~0.3 | 20 | 500 |
| GXG-3800 | 11.3 | 3800 | -0.1~0.3 | 23 | 500 |
5.Our company
We are devoted to centrifuges and dryers, which could used in various industries, such as environmantel protection, food industry, chemical industry and pharmaceutic industry etc.
