Tricanter continuous decanter centrifuge specially for aging oil treatment

Place of Origin Jiangsu,China
Brand Name Juneng
Certification ISO/CE
Model Number LWS350
Minimum Order Quantity 1 set
Price USD25000-100000/set
Packaging Details seaworthy packing
Delivery Time 50 work days
Payment Terms L/C, T/T
Supply Ability 20 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Tricanter Continuous Decanter Centrifuge Specially For Aging Oil Treatment Core Components PLC, Motor
Voltage 380V Power 22000
Dimension(L*W*H) 3412*1090*950 Material Stainless Steel
Discharge Self-cleaning (PLC Control) Drum Speed Appr 3200r/min
Leave a Message
Product Description



Tricanter continuous decanter centrifuge specially for aging oil treatment

1.Product description



The three-phase separation decanter centrifuge is a fully enclosed, fully automatic and continuous process for the treatment of aging oil. This product has been successfully used in Daqing Oilfield and Liaohe Oilfield.



The aging oil from the storage tank has a high viscosity due to a long deposition time, so it must be heated and a demulsifier added to reduce the viscosity. The aged oil enters the three-phase decanter centrifuge through the pump, and the centrifuge rotates at a high speed. Under the action of a large centrifugal force, the solid (sludge) with high density settles on the drum wall. Two liquid phases with different densities form concentric cylinders, with the lighter liquid phase (oil) in the inner layer and the heavier liquid phase (water) in the outer layer. The thickness of different liquid rings can be adjusted by the liquid adjusting plate. The sludge deposited on the drum wall is conveyed by the screw conveyor to the cone end of the drum body, and discharged from the discharge port. It can be transported to the designated place by the conveyor belt. A trolley can also be used to transport sludge. The separated oil is transported to the storage tank through the oil discharge pipeline, and the separated water is also discharged through the drainage pipeline.

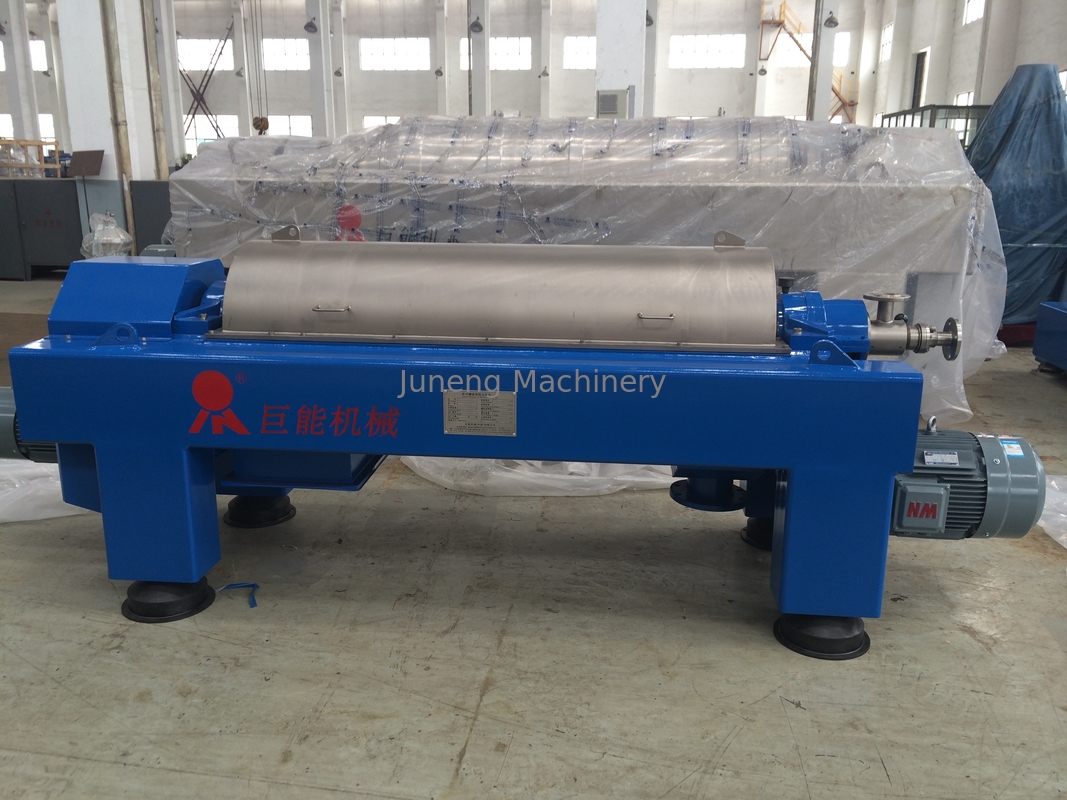

Tricanter continuous decanter centrifuge specially for aging oil treatment 0

Tricanter continuous decanter centrifuge specially for aging oil treatment 1



                                       Three phase


2.Technological parameters



Model

Drum diameter mm

Inlet liquid capacity㎥/h

Power of main/auxiliary motor Kw

Weight Kg

LW250

250

1-4

11/4

1200

LW(F)250

250

1-4

11/4

1200

LW250(W)

250

1~5

11/4

1300

LW350

350

5~15

22/5.5

2000

LW(F)350

350

5~15

22/5.5

2000

LW350(W)

350

5~18

15/5.5

2200

LW(S)350

350

2~10

22/5.5

2000





3.Applications



1. Washing and dehydration of starch

2. Dehydration of soybean wheat proteins

3. Dehydration of fish meal and fish

4. Dehydration of brewers' grains

5. Purification of juice and dehydration of fruit fiber

6. Separation and purification of animal and vegetable oil





4.Main features

• All parts coming into contact with the product are made of stainless steel.
• 3-phase AC motor for controlled torque starting via frequency converter
• Approximately 80 to 90 % of the oil is recovered.
• Low personnel costs due to continuous and automatic operation.
• Highest g-force for higher solids output
• Adjustable bowl speed via VFD
• Automatic adjustment of differential speed via VFD
• Two motor drive

• Belts for both primary motor and secondary motor





5.Certifications

Tricanter continuous decanter centrifuge specially for aging oil treatment 2Tricanter continuous decanter centrifuge specially for aging oil treatment 3



6.Our company



Tricanter continuous decanter centrifuge specially for aging oil treatment 4
Product Name
Juneng Machinery Factory
Separator
Jiangsu Juneng Machinery Co.,Ltd(South)
Centrifuge
Juneng Machinery (China) Co.,Ltd(Nanjing)
Filter
Jiangsu Juneng Machinery Co.,Ltd(North)
Dryer
Juneng Machinery (China) Co.,Ltd(Nanjing)
Pump
Jiangsu Juneng Machinery Co.,Ltd(South)





Juneng Machinery (China)Co., Ltd., established in 2006, is a professional manufacturer engaged in the research, development, production, sale and service of Filter, Separator, Decanter centrifuge and pump. We have four factories which located in Nanjing and Yixing City with convenient transportation access.
