Horizontal pressure leaf plate type filter for copper sulfate solution

Place of Origin Jiangsu,China
Brand Name Juneng
Certification ISO/CE
Model Number WYB
Minimum Order Quantity 1 set
Price USD15000-200000/set
Packaging Details Standard Wooden Case
Delivery Time 60 work days
Payment Terms L/C, T/T
Supply Ability 30 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Horizontal Pressure Leaf Plate Type Filter For Copper Sulfate Solution Material Carbon Steel
Application Copper Sulfate Solution Model According To Customer Required
Color Green Or According To Your Request Weight Base On Size & Material
Type Plate Type
Leave a Message
Product Description

Horizontal pressure leaf plate type filter for copper sulfate solution



Horizontal pressure leaf plate type filter for copper sulfate solution 0
Carbon steel horizontal leaf filter.
Thank you very much for choosing WYB series horizontal leaf filter manufactured by Juneng company. This equipment is an efficient,energy saving solid-liquid separation equipment of enclosed operation type. It is widely employed in industries such as chemical engineering, petroleum, foodstuff and pharmaceutical, etc.

This product is of novel design, the main body of filter consists of filtration tank, screen, end-plate pullout device, automatic dreg discharging device, etc. During filtering, the filter aid is mixed up with material in the mixing cylinder then transmitted by pump onto the filter screen to form a filter cake layer. Once the stable filter cake is realized, the minute filter aid particles provide countless micro passages, which entrap the suspended impurity and let the clear liquid through.

Therefore, the real filtration is realized through the cake layer. In case that the filter cake over the surface of filter screen reaches certain thickness, or the filtration pressure is up to 0.4 MPa, the feeding shall be stopped, and compressed air or steam shall be employed to blow dry the cake, and then pull out the filter screen, the vibration dreg discharging device shall be switched on, the dregs shall be unloaded because of weight and vibration. As to sticky filter cake, manual help shall be provided to clean up the dregs.
Specification
Applicable Industries
Copper sulfate solution
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Automatic Grade
Automatic
Material
Carbon Steel
After-sales Service Provided
Engineers available to service machinery overseas
After Warranty Service
Spare parts available

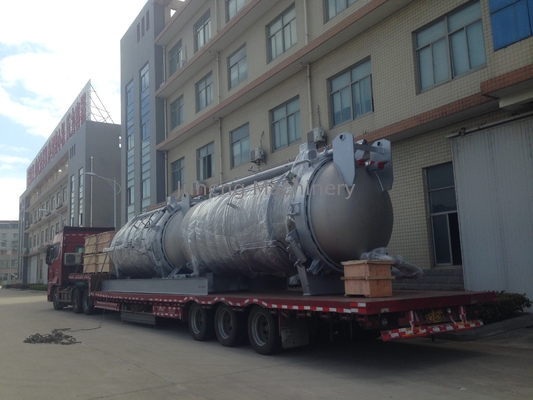

Packing & Delivery
Horizontal pressure leaf plate type filter for copper sulfate solution 1
Horizontal pressure leaf plate type filter for copper sulfate solution 2

Packing.

1. Simple package: Covered with plastic film to prevent moisture and dust.
2. Packed as customer required

Delivery.

Internal transportation: physical distribution,load carriage
international transport: 1. sea transportation
2. railway transportation

Company Profile
00:00

02:07

Jiangsu Juneng Machinery Co., Ltd. consists of Yixing Filtration Equipment Factory and Yixing Industrial Pump Factory. Our company is mainly engaged in the research, development, manufacture and sales of filtration separation equipment, industrial pumps and other pressure vessels. We are one of the earliest filtration manufacturers in China, as well as one of the largest filtration separation equipment manufacture bases currently. Founded in 1980s, with more than two decades of development, our company has now covered an area of 89,000 square meters, with fixed assets of USD12.25 million and over 750 sets of large and medium manufacture equipment. We have set up a complete physical and chemical experiment center, a non-destructive testing lab and a super speed testing lab. At present, our company has more than 580 employees, including 8 people holding senior technical titles, 26 people holding intermediary titles, over 60 people with the junior college degrees, 35 salesmen and 50 after-sales servicemen. By the end of 2004, we have fully implemented the ERP management and achieved office automation. Our company holds Grade BRI Pressure Vessel Manufacture Permit and Pressure Vessel Design Permit. All our activities are conducted in compliance with the regulations of ISO9001 International Quality Management System and Pressure Vessel Standard, so that all the behaviors are standardized and recorded. Our company was awarded as High-tech Enterprise in Jiangsu Province, Enterprise Honoring Contract & Keeping Promise in Wuxi City, and Quality Trustworthy Enterprise in Yixing City. In 2005, we successfully became the member of China's petrochemical equipment resource market. At present, our company is capable of manufacturing specialized filtration equipment, centrifugal separation equipment, conveyance equipment and pressure vessels in more than 300 specifications and types. It is our quality guarantee to contribute to all the industries with excellent products and services. We consider high quality, excellent service, reasonable price and foremost credit as our operation purpose, and we will keep on the development of new products, so that the products can constantly win the markets and demonstrate strong development. All our company employees will fulfill our guarantee to the customers with the highest enthusiasm and the best services.
Exhibition



Exhibitions We Attended.

We have attended various exhibitions during these years, such as ACHEMA, AchemAsia 2019, ProFood Tech --The Food & Beverage Processing Event, 21st Interphex Week Japan, Spring and Autumn Conton Fair and other domestic fairs.

Horizontal pressure leaf plate type filter for copper sulfate solution 3Horizontal pressure leaf plate type filter for copper sulfate solution 4
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2006,sell to Domestic Market(67.00%),Africa(12.00%),North America(7.00%),Western Europe(6.00%),Eastern Asia(3.00%),Southeast Asia(2.00%),Southern Europe(2.00%),South Asia(1.00%). There are total about 501-1000 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Filter,Disc Separator,Industry Centrifuge,Industry Pump,Pressure Vessel

4. why should you buy from us not from other suppliers?
Our company has been established more than 30 years . The first leaf filter and centrifuge separator in China are designed by our company . We can supply the the most professional suggestion and high quality product of all the kinds centrifuge separator.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DEQ;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
