Large Capacity Corn Starch Concentration Centrifuge Separator

Place of Origin Jiangsu , China
Brand Name Juneng
Certification ISO/CE
Model Number DPF800
Minimum Order Quantity 1 set
Price USD120000-300000/set
Packaging Details Seaworthy packing
Delivery Time 60 work days
Payment Terms L/C, T/T
Supply Ability 10 sets/ Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Large Capacity Corn Starch Concentration Centrifuge Separator Core Components PLC, Bearing, Gearbox, Motor, Gear
Voltage Customized, According To Buyer Power 90000~132000
Dimension(L*W*H) 2.8*1.5*2.2m Weight 5500 KG
Capacity 22-115 T/H
Leave a Message
Product Description

Large Capacity Corn Starch Concentration Centrifuge Separator

Product Description

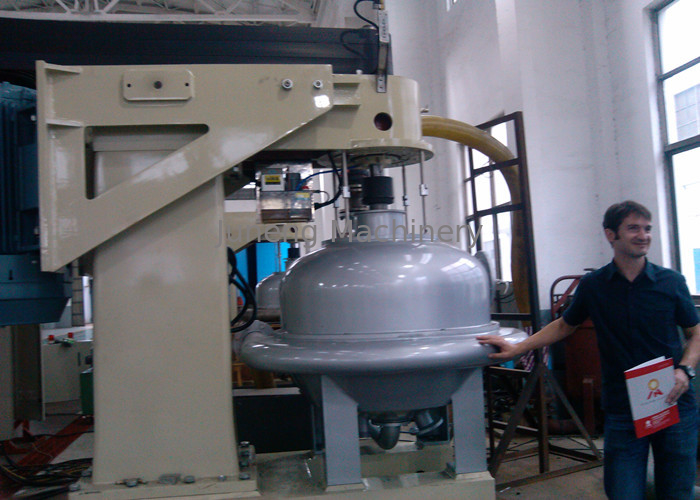

Large Capacity Corn Starch Concentration Centrifuge Separator 0
DPF800 disk separator is the main equipment used in the big starch process industry.

DPF800 disc separator with the upper belt transmission structure, and adopt the upper suspended supporting type for the main shaft, using nozzle discharge. So it is benefits significantly higher than other structures of the starch separators.

DPF series disc separator applys to :
1,Corn startch and gluten separation;
2,Concentration of gluten;
3,Pre-concentration of starch milk;
4,Clarify; also suitable for other similar product’s separation.
Specification
The separator mainly consists of base, cantalever, hydraulic oil cylinder, motor ram, main axis suspension device, drum, upper volute and lower volute, etc.

Among which the base is the frame part of machine, base is composed of axis and pedestal’s connection. Lower shell and lifting oil cylinder cover is directly fixed to the base

Suspension branch is used to instal motor ram and axis cantalever part, upper volute is suspended on the suspension branch with three steeve. Suspension branch is connected to vertical axis part(on the pedestal) through ascending oil cylinder, the suspension branch can ascend driven by hydraulic pump station; when the suspension branch ascend to certain height, push it with hand, it will rotate according to oil cylinder’s axes.

Drum is composed of drum axis, disk rack, drum body, drum cover, seal ring, disk, refluence pipe, diffluence pipe and nozzle. The drum is connected to main axis through its big nut.

In the axis suspension facility, it is equipped with axis, bearing, etc. on the upper side of axis, it is equipped with triangle
strap. The axis suspension facility is equipped to the suspension branch. On the two sides of motor ram is rolling wheels, which make the ram move in the guide rail. On the upper side of suspension branch is spring tensioner, which used to regulate the tension power of triangle adhesive tape.
Main Technological Parameters
Inner Diameter of Drum
800mm
Nozzle Diameter
1.8 ~ 3.4 mm
Separation Factor
Max 4600
Main Axis Rotation Speed
Max 3050 rpm
Motor Power
90~132KW
Company Profile
Large Capacity Corn Starch Concentration Centrifuge Separator 106:22

Large Capacity Corn Starch Concentration Centrifuge Separator 2
Large Capacity Corn Starch Concentration Centrifuge Separator 3
Large Capacity Corn Starch Concentration Centrifuge Separator 4
Large Capacity Corn Starch Concentration Centrifuge Separator 5
Large Capacity Corn Starch Concentration Centrifuge Separator 6
Large Capacity Corn Starch Concentration Centrifuge Separator 7
Juneng Group is a large scale manufacturer of industrial products in China. This group principally engaged with the in-house research & development as well as manufacturing of various industrial filters, separators , centrifuges and pumps.
The Company now has its three production bases with a total capacity of 280,000 square meters in Nanjing city and Yixing City ,permanent workforces not less than 1100 people and the production line is well equipped with more than 2000 inits of advanced production equipment and test Instrumentation.
Packing & Delivery
Large Capacity Corn Starch Concentration Centrifuge Separator 8
Large Capacity Corn Starch Concentration Centrifuge Separator 9
Plastic film package inside, wooden case package outside.
Test & Inspection

1. Material Test Report 2. Magnetic Particle Examination

3. Nondestructive Examination 4. Liquid Penetrant Examination

5. Dynamic Balancing Test 6. Radiographic Examination
