Large Capacity Disc Oil Centrifuge Separator For Vegetable Oil, Animal Oil

Place of Origin Jiangsu China
Brand Name Juneng
Certification ISO CE
Model Number DHZ550
Minimum Order Quantity 1 set
Price USD 20000-50000 / Set
Packaging Details Packed by international standard fumigation wooden case
Delivery Time 50 days after order
Payment Terms L/C, T/T
Supply Ability 20 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Alias Vegetable Oil Separation Machine Control System PLC Automatic Control
Voltage 220V/380V/400V/440V/460V Power 7.5 Kw
Function Three Phase Separation Warranty Date 12 Months
Leave a Message
Product Description

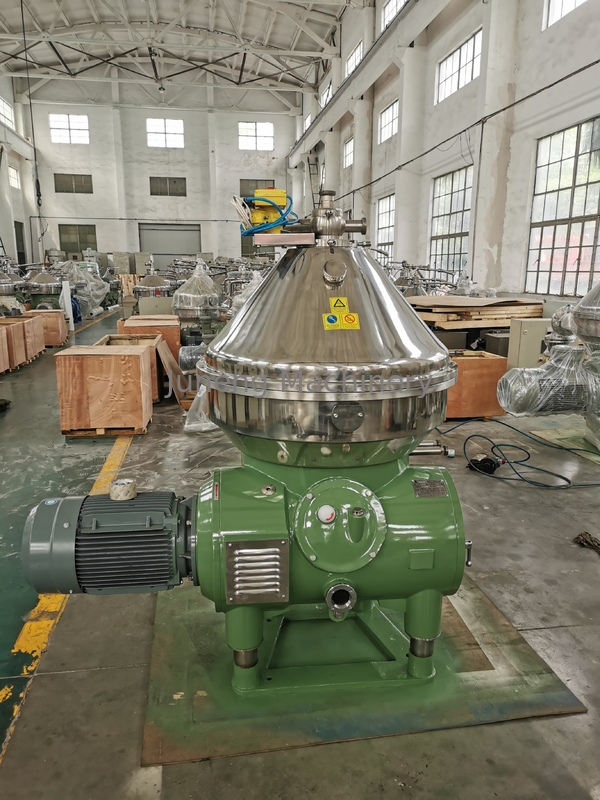

Large Capacity Disc Oil Centrifuge Separator For Vegetable Oil, Animal Oil

Product Description:

DHZ550E Disk separator is widely used for such process as degumming, de-soaping and water washing for the continuous refining vegetable oil, is one of the best devices for modern oil refining. Meanwhile, depending on different users’ requirements, it is also applicable for separating two liquids, liquid and solid that have different specific gravities in such industries as light industry, chemical, medicine and food, etc.

Large Capacity Disc Oil Centrifuge Separator For Vegetable Oil, Animal Oil 0

The drum of disc centrifuge has a set of disc-shaped parts overlapped with each other. It is an important component of disc centrifuge - disc. There is a small gap between the disc and the disc. The suspension is added to the drum by the feeding tube located at the center of the drum. When the suspension flows to the gap between the discs, the solid particles settle on the disc under the action of centrifugal force to form sediment. The sediment slides along the disc surface and falls off the disc and accumulates in the diameter of the drum. The separated liquid discharges the drum at the outlet.


The main function of disc centrifuge is to shorten the settling distance of solid particles and enlarge the settling area of the drum. The production capacity of the separator is greatly improved by installing discs in the drum. Solids accumulated in the drum need to be artificially cleared or discharged from the drum through the slag discharge mechanism when the separator shuts down.


Large Capacity Disc Oil Centrifuge Separator For Vegetable Oil, Animal Oil 1


This special design separator has the full automatic control box which used for safety protection and equips and also been equipped with advanced automatic vibration tester which can view vibrating value at any time. We can make separating and discharging to the best affection from regulating separation parameter directly at the screen.

It has advantages of high speed, smooth operating, compact structure, small footprint, all sealed of the inlet and discharge, low noise, good separation. The materials of centrifuge which contact with the parts are stainless steel which meets the requirements of food grade.


Product application

DHZ series disc centrifuge for vegetable oil refining are widely used in continuous degumming, neutralizing, dewaxing, and washing of vegetable oils .
Vegetable oil: Colza oil, cottonseed oil, Corn oil, palm oil, soybean oil, Peanut oil, Rice oil, Sesame oil, Safflower oil and son on.
Animal oil: fish oil and other various animal fat clarification.



Product model list



Model Flowrate Inlet pressure Outlet pressure Power Weight
DHZ360 1200-2500 LPH  0.05 MPA 0.1-0.25 MPA 7.5 KW 1280 KG
DHZ470 2500-7000 LPH 0.05 MPA 0.1-0.25 MPA 15 KW 1880 KG
DHZ550 5000-15000 LPH 0.05 MPA 0.1-0.25 MPA 18.5 KW 2200 KG
DHZ700 15000-30000 LPH 0.1 MPA 0.2 MPA 30 KW 3300KG


Product Advantages

We can make separating and discharging to the best affection from regulating separation parameter directly at the screen.
1. Continuous feeding
2. High separation factor
3. Automatic residue discharging
4. Concise bowl design without frequent washing
5. Hydraulic coupling driving with longer service
6. PLC system automatic control
Large Capacity Disc Oil Centrifuge Separator For Vegetable Oil, Animal Oil 2


Disc Oil Separator Accessories



Large Capacity Disc Oil Centrifuge Separator For Vegetable Oil, Animal Oil 3

Separator on site
Large Capacity Disc Oil Centrifuge Separator For Vegetable Oil, Animal Oil 4
 Our company

Large Capacity Disc Oil Centrifuge Separator For Vegetable Oil, Animal Oil 5


Our team
Large Capacity Disc Oil Centrifuge Separator For Vegetable Oil, Animal Oil 6
Our service
1. Professional Engineer wil recommend you the most suitable model according to your requirement.
2. Supply reference process flow chart .
3. Supply on-site installation and operation test
4. Integration for control system and process
5. Customized size and structure
6. 12Months guarantee period from machine arriving date.

FAQ
1) Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.
If you come from domestic city, air or train directly to Wuxi station. We will pick you up at railway station.

2) Q: How do you ensure the quality of your products?
A: Our Company is a state owned enterprise with more than 30 years experience , strict operation policy is performed,advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing,transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state.

3)Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .

4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning .

5) Q: What's the shipment terms and delivery time of your company?
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.

6) Q:Do you give any Discount?
A: I will surely try my best to help you get those by the best price and good service at the same time
