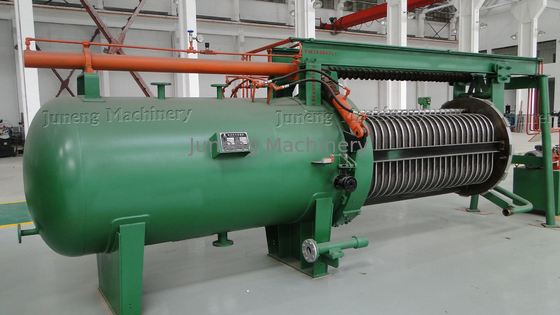

Hermetic Horizontal Pressure Leaf Filter Carbon Steel

Place of Origin Jiangsu China
Brand Name Juneng
Certification CE、ISO、ASME
Model Number WYB10 WYB15 WYB 20 WYB25 WYB 30 WYB 40 WYB 50 WYB 60 WYB 70 WYB 80 WYB 90 WYB 100 WYB-120 WYB-150
Minimum Order Quantity 1 set
Price USD 2000-100000/ unit
Packaging Details Internation plywood case and container
Delivery Time 60 days after order
Payment Terms L/C, T/T
Supply Ability 800 sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Carbon Steel High-efficiency, Energy-saving And Auto-hermetic Horizontal Leaf Filter Condition New
Plate Filter Area 10-150 M2 Product Name Horizontal Pressure Leaf Filter
Voltage 3PH/380V 50HZ, 3PH/415V, 50HZ Warranty 12 Months
Color Standard Greed Or Customised Application Liquid Filtration
After-service Enginner Available For Commissioning Cake Discharge By Vibration Or Water Spray
High Light

ASME Horizontal Pressure Leaf Filter


Hermetic Horizontal Pressure Leaf Filter


Carbon steel horizontal metal leaf filter

Leave a Message
Product Description

Carbon steel high-efficiency, energy-saving and auto-hermetic horizontal leaf filter


Production Description

WYB horizontal pressure leaf filter is an efficient, energy saving solid-liquid separation equipment of enclosed operation type. It is widely employed in industries such as chemical engineering, petroleum, foodstuff and pharmaceutical, etc.


Generally, the filtration system consists of mixing tank, main machine of the filter, liquid transmission pump, piping, valves, electrical appliance control cabinet, operation workbench, etc.


Filter main body consists of filtering tank, filter screen, shell cover pulling structure, automatic discharging device, hydraulic station, etc.



Hermetic Horizontal Pressure Leaf Filter Carbon Steel 0

Filter model list


Area Series (m2) : WYB 5,10,15,20,25,30,35,40,45,50,60,70,80,90,100,120,140,160,180,200


Shell Diameter Series (mm) : 900,1200, 1400, 1500, 1600,1700,1800,2000


Work Pressure (Mpa):0.4 Mpa


Work Temperature (℃): 150℃


Promimate Treatment for oil : 0.5 T/H.M2


Applicable Industries

Manufacturing Plant, Food & Beverage Factory

Video outgoing-inspection


Machinery Test Report


Automatic Grade



Carbon Steel


Dewaxing of oil

After-sales Service Provided

Engineers available to service machinery overseas

After Warranty Service

Spare parts available


List of consumable parts


Name Specification Material
Gasket of the large cover DN1800×10×15 Silica gel
Filter screen “O” ring ¢41 × 3.5 Silica gel
Outlet pipe “O” ring ¢118 × 5.3 Silica gel
Vibrator sealing part ZD-60 /


Working principle


This product is of novel design, the main body of filter consists of filtration tank, screen, end-plate pullout device, automatic dreg discharging device, etc. During filtering, the filter aid is mixed up with material in the mixing cylinder then transmitted by pump onto the filter screen to form a filter cake layer.


Once the stable filter cake is realized, the feeding shall be stopped, and compressed air or steam shall be employed to blow dry the cake, then discharge the filtration cake .

Hermetic Horizontal Pressure Leaf Filter Carbon Steel 1


Filter Plates


The filter screen plate is the major component for the filter. It consists of multiple layers of stainless steel screens of different specification. In the middle there is a passage for the filtrate, at the outside there is frame.


At the lower part of screen plate there is a nozzle for the discharge port which is inserted into the collection pipe, in between the nozzle and socket of collection pipe there is rubber “O” ring for sealing.

Hermetic Horizontal Pressure Leaf Filter Carbon Steel 2




1. Filtration area range 5 to 500 Square meter

2. Ideal for high polish applications, 0.1 Micron removal

3. Dry and/ or wet solids discharge .

4. Automated closed system

5. Jackets available- steam/Water/Cooler

6. Control options-semi automatic or fully automatic.



Main use and Application of Pressure leaf filter :

1.  Filtration of pressed crude oil and remove mechanical impurities ;
2. Filtration of decolored oil and grease with carclazyte ;
3. Dewaxing filtration of oil and grease .


Packing & Delivery


Hermetic Horizontal Pressure Leaf Filter Carbon Steel 3
Hermetic Horizontal Pressure Leaf Filter Carbon Steel 4


1. Simple package: Covered with plastic film to prevent moisture and dust.

2. Packed as customer required


Internal transportation: physical distribution,load carriage

international transport: 1. sea transportation

2. railway transportation


Company detail


Juneng Group is a large scale manufacturer of industrial products in China.


This group principally engaged with the in-house research & development as well as manufacturing of various industrial filters, separators , centrifuges and pumps.


The Company is proud to be the leader in such industry with approximately 90% domestic market share in Oils & Fats industry, Chemical industry, Pharmaceutical industry, Beverage industry, Petrol-chemical industry, and now is one of the well-known producers and suppliers in World .


The Company now has its three production bases with a total capacity of 280,000 square meters in Nanjing city and Yixing City , permanent workforces not less than 1500 people and the production line is well equipped with more than 2000 inits of advanced production equipment and test Instrumentation .

Hermetic Horizontal Pressure Leaf Filter Carbon Steel 5

Why Choose Juneng brand


1. International High quality Certification production chain .

2. Manufacturer, more reasonable price .

3. Solid technical support and after-sales service

4. Exports to more than 20 countries and regions, good customers feedback.

5. One-top service, customised Exclusive project feasibility report .


After service :

1. Months guarantee period from machine arriving date.
2. Sufficient spare parts in stock are available .
3. Technicians are availabled for overseas service.
4. 24 hours technical consultation .
5. The customer could get trained by our experienced tecnician.
6. Routine tracing will be done timely.
7. Guide you do the normal maintenance.
8. Suggestions and any comments &reflection from customer would be treated in priority.
9. Markting team will visiting if you need.

10. Provide Clients one-yar warranty to make sure the machine work well.

11. We always keep certain inventory level of spare parts, which means the replacement can be sent to you timely.

12. Send every client a preferential quotation.

Hermetic Horizontal Pressure Leaf Filter Carbon Steel 6
