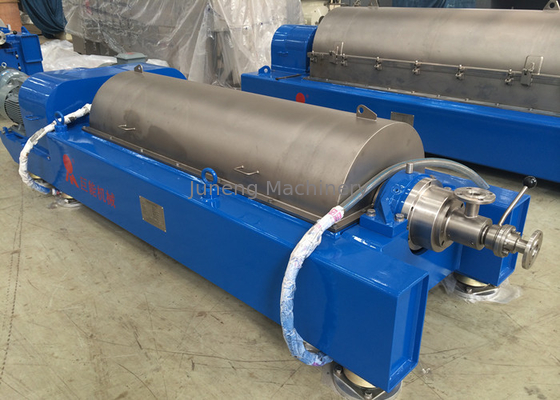

Three Phase Scroll Decanter Centrifuge For Kitchen Waste Leachate
|Product Name||Three Phase Scroll Discharge Decanter Centrifuge For Kitchen Waste Leachate||Material||Stainless Steel|
|Core Components||PLC，Motor, Pressure Vessel, Bearing||Voltage||Design For Different Country|
|Power||According To The Model||Weight||According To The Model|
|Dimension(L*W*H)||Depend On Model Choosing||Drum Diameter||Depend On Model Choosing|
|After Warranty Service||Video Technical Support, Online Support|
Three Phase scroll decanter centrifuge,
Kitchen Waste Leachate scroll decanter centrifuge,
SS316L solid bowl decanter centrifuge
Three Phase Scroll Discharge Decanter Centrifuge for Kitchen Waste Leachate
Decanter centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference.
The centrifuges which made by out factory can clarify, dehydrate and classify the suspensions with 0.002-3 mm solid-phase particles and thickness range at 0.5~40%.
|Diameter||250mm-720mm||Voltage :||220V, 380V,440V,460V|
|Speed||Inverter Control||Electrical Components:||World Famous Brand|
|Operation||Continuous||Separation :||Three phase|
|Bearing||SKF||Moc :||SS304, SS316L, SS2205|
3.Product structure and operation principle
Operation principle : Drum and screw rotate at a certain different speed . The feed enters the drum through a stationary inlet tube and is accelerated smoothly by an inlet rotor . The resulting centrifugal forces make the solids collect on the wall of the drum . Screw conveyor continual moving the solid to conical end of drum , discharge through discharge port after dried in the dry area , however , light liquid forms the inner layer and effusion through overflow port of drum , then discharge through liquid outlet port .
4.Main specification and technological parameters
*** F: Ex-proof, W:Waste water, S: Three phase FS: Ex-- proof and three phase
- All parts coming into contact with the product are made of stainless steel.
- 3-phase AC motor for controlled torque starting via frequency converter
- Approximately 80 to 90 % of the oil is recovered.
- Low personnel costs due to continuous and automatic operation.
- Highest g-force for higher solids output
- Adjustable bowl speed via VFD
- Automatic adjustment of differential speed via VFD
- Two motor drive
- Belts for both primary motor and secondary motor
8.Packing & Delivery
|Packaging||Seaworthy wooden case|
|Transportation||Automobile transport to shipping port|
9.1 Our service
After-sales Service Technical Team
Our company has set up a professional after-sales service technical team. All sell-offs products shall have engineer to guide installation, assist debugging and train operators until they have mastered them.
If problem occurs while the equipment operation, we will immediately process it, promise to feedback within two hours after informed. After-sales service engineer shall be arranged to the site to solve the problems. He will never leave, until the user satisfaction.
9.2 Juneng Group
Juneng Machinery (China)Co., Ltd., established in 2006, is a professional manufacturer engaged in the research, development, production, sale and service of Filter, Separator, Decanter centrifuge and pump. We have four factories which located in Nanjing and Yixing City with convenient transportation access.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including Filter, Separator, Decanter centrifuge and pump.
In addition, we have obtained CE certificates, ASME U certificate and ISO 9001 certificate. And Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as USA,German, Korea,Japan, Pakistan, Malaysia, Singapore, Vietnam and so on.
We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
