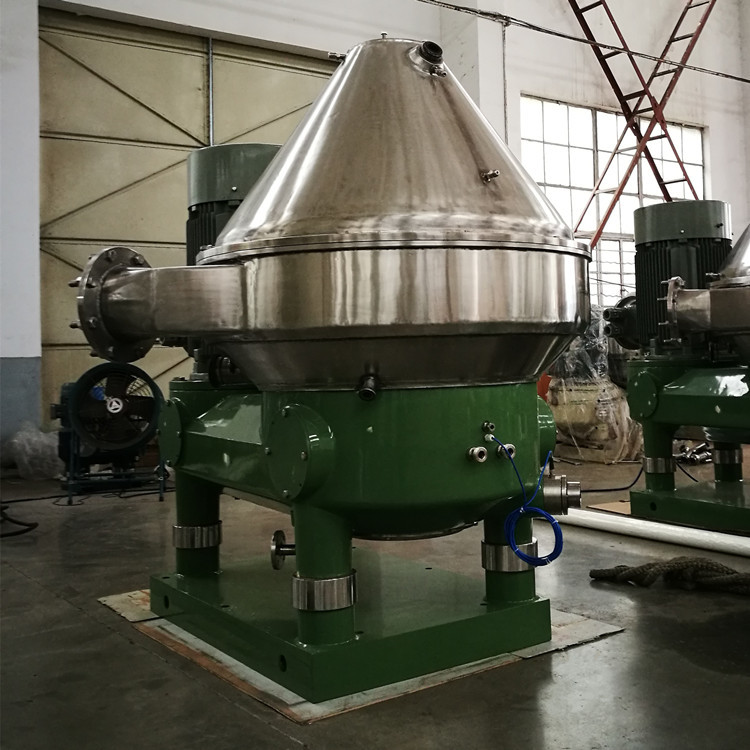

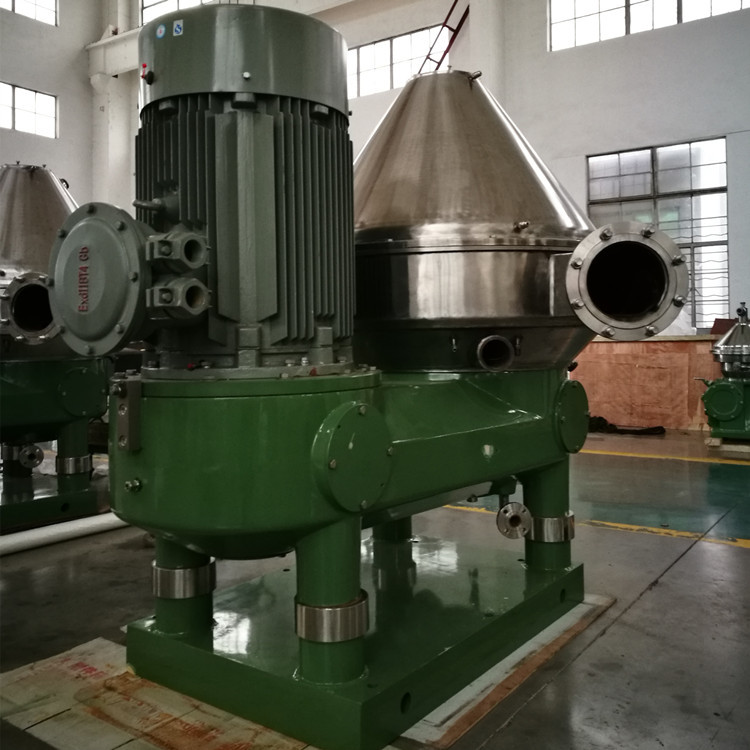

35m3/H Disc Centrifuge Separator Pharmaceutial Solid Liquid Centrifugal Separator

Place of Origin Jiangsu,China
Brand Name Juneng
Certification ISO/CE
Model Number DHC620
Minimum Order Quantity 1 set
Price USD25000-100000/set
Packaging Details Standard Wooden Case
Delivery Time 50 work days
Payment Terms L/C, T/T
Supply Ability 20 set/month
Product Details
Product Name Stainless Steel Biology,pharmaceutial Solid Liquid Disc Centrifuge Separator Voltage Customized
Power 55 Kw Weight 3700 Kg
Dimension(L*W*H) 2360x1690x2500 Capacity 35m3/h
High Light

35m3/h disc centrifuge separator

,

55Kw disc centrifuge separator

,

pharmaceutial solid liquid centrifugal separator

Leave a Message
Product Description

Stainless steel biology,pharmaceutial solid liquid disc centrifuge separator

Product description

DHC620 separator can discharge automatically with ring valve, and it is controlled automatically by computer system and Industrial Personal Computer. It can discharge regularly and quantificationally without stopping feeding, and has many advantages as high automation, can be suitable for many process line, easy to adjust or regulate, and obtain satisfactory separation effect.



Separation technical parameter for fermentation liquor
Model
Treatment capacity (L/H)
Inlet Pressure (Mpa)
Outlet pressure (Mpa)
Motor power (Kw)
Weight (Kg)
Outline dimension (mm)
DHC211
3-8
0.1
≤0.2
15
1880
1800*1120*1910
DHC214
5-15
0.2
≤0.4
22
2200
1980*1550*2020
DHC216
15-25
0.2
≤0.4
37
3300
2100*1900*2400
DHC611
3-8
0.2
≤0.4
18.5
2000
1875*1250*1800
DHC614
5-15
0.2
≤0.4
30
2100
2000*1600*1900
DHC620
20-35
0.2
≤0.4
55
3600
2360*1690*2500





35m3/H Disc Centrifuge Separator Pharmaceutial Solid Liquid Centrifugal Separator 0



Operation principle

The separated material will be input into the heart of the separator, i.e. the drum. By the strong centrifugal force field, the material passes the separation partition consists of disk string, The liquid with large specific gravity moves along the disk wall to the outside of the neutral hole, where the heavy slag accumulates in the sediment area, and the heavy phase flows to the upward centripetal pump; The liquid with small specific gravity moves along the disk wall to the neutral hole and converges to the lower centripetal pump. The light and heavy phases are output by the lower centripetal pump and the upper centripetal pump respectively; Heavy slag is discharged regularly; With continuous production.



Successful application

Separation of the extract(such as penicillin,vitamin,colibacillus,antibiotics,hormones,etc.),vaccine,microbial concentration,concentration and clarification of fermentation broth,blood separation,etc.

Certifications
35m3/H Disc Centrifuge Separator Pharmaceutial Solid Liquid Centrifugal Separator 1
Detailed Images





Main Features

Name: Drum
Brand: Ju neng
Original: China
Domestic famous engines, strong driving force,

35m3/H Disc Centrifuge Separator Pharmaceutial Solid Liquid Centrifugal Separator 2
35m3/H Disc Centrifuge Separator Pharmaceutial Solid Liquid Centrifugal Separator 3









Maintain and Repair.

During warranty period, our engineer could service door-to-door if necessary, or customer could send the fault equipment to our factory.

Our Company
35m3/H Disc Centrifuge Separator Pharmaceutial Solid Liquid Centrifugal Separator 4

Operational Tenets of Juneng Group:

*Strategy: Being professional and devoted to build up core competitiveness
*Market: European quality, Chinese price
*Mangement: practical, standard and successive improvement
*Service: honest, responsable and timely
*Talent: merits, cooperation and caring
*Technology: technology leadership


Our philosophies of development:

* Based on continuous strengthen ourselves with full of innovative ideas
* 5% of sales revenue is allocated into intensive research
* 8% of workforce is allocated into development activity
* Plenty of patent and good quality new products


Our Service
35m3/H Disc Centrifuge Separator Pharmaceutial Solid Liquid Centrifugal Separator 5
35m3/H Disc Centrifuge Separator Pharmaceutial Solid Liquid Centrifugal Separator 6

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
35m3/H Disc Centrifuge Separator Pharmaceutial Solid Liquid Centrifugal Separator 7
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
