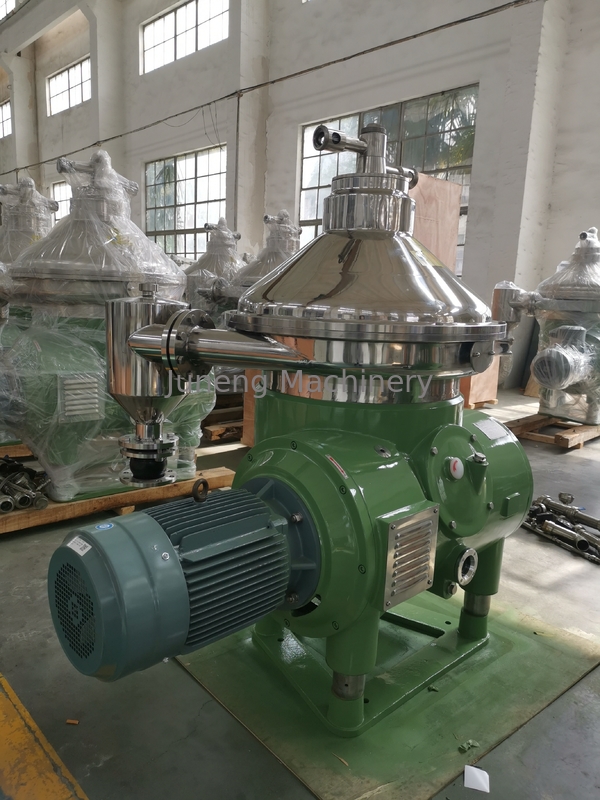

Automatic Disc Oil Separator Three Phase Disc Centrifuge Separator

Place of Origin Jiangsu China
Brand Name Juneng
Certification ISO CE
Model Number DHYY Series
Minimum Order Quantity 1 set
Price USD 20000-100000/ Set
Packaging Details Packed by international standard fumigation wooden case
Delivery Time 30 days after order
Payment Terms L/C, T/T
Supply Ability 1000 set per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Stainless Steel Animal Oil Separator Which Extract Oil From The Viscera Of Fish Control System PLC Automatic Control
Voltage 220V/380V/400V/440V/460V Drive Hydraulic Coupler / Belt / Transducer
Separation Factor 10300 Outline Dimension (L×W×H) 1690x1120x1930mm
High Light

Automatic Disc Oil Separator

,

Biology Fermentation Disc Oil Separator

,

Three Phase Disc Centrifuge Separator

Leave a Message
Product Description

Stainless steel animal oil separator which extract oil from the viscera of fish



Product Description

DHYY470 separator adopts ring valve type automatic slag discharge, which is automatically controlled by computer program and IPC. It can carry out regular and quantitative slag discharge according to the setting requirements without stopping the feeding. It has high degree of automation, strong adaptability to process adjustment, convenient adjustment and satisfactory separation effect.



DHYY470 separator is mainly used for the separation of two kinds of non-phase solution bodies and a small number of impurities.
 Automatic Disc Oil Separator Three Phase Disc Centrifuge Separator 0


Product Principle

The separated material will be input into the heart of the separator, i.e. the drum. By the strong centrifugal force field, the feed passes the separation partition consists of disk string, by taking the neutral holes in disk as the separating surface,

the liquid in higher specific gravity (heavy phase) will move outward the neutral holes along disk wall, and the heavy residue will accumulate at the residue-settling area, and the residue will flow toward the big centripetal pump.

The liquid in lower specific gravity (light phase) will move inward and upward along disk wall, then assemble at the small centripetal pump. The heavy and light phase will be output separately by small and big centripetal pump.



Product model list



Model Flowrate Inlet pressure Outlet pressure Power Weight
DHYY360 1200-2500 LPH  0.05 MPA 0.1-0.25 MPA 7.5 KW 1280 KG
DHYY470 2500-7000 LPH 0.05 MPA 0.1-0.25 MPA 15 KW 1880 KG
DHYY550 5000-15000 LPH 0.05 MPA 0.1-0.25 MPA 18.5 KW 2200 KG



Application

1. Purifiation of animal fat
2. Purification of fish oil
3. Kitchen waste oil
4. Separation of fish pressed liquid
5. Waste oil
6. Hogwash oil

......
Factory use virgin coconut oil centrifuge machine continuous operate disc oil separator Factory use virgin coconut oil centrifuge machine continuous operate disc oil separator



Kinds of Discharge types



1. Solid retaining

2. Continuous discharge

3. Intermittent discharge



Product Advantage

We can make separating and discharging to the best affection from regulating separation parameter directly at the screen.

(1)High speed;

(2)stable operation;

(3)fully closed of inlet and outlet system;

(4)low noise;

(5)good separation;

(6)high oil rate;

(7)fully automatic control ;

(8)easy to operate...




5.Detailed Images
Automatic Disc Oil Separator Three Phase Disc Centrifuge Separator 3

Parts in the rotating bowl drum

ll parts & components contacting materials are made of stainless steel, can effectively minimize the corrosion from the materials to be separated, and meet hygienic requirements for food.

The separator bowl has gone through precise dynamic balance, it can run steadily, with low vibration and noise at operation.

Automatic Disc Oil Separator Three Phase Disc Centrifuge Separator 4

Vertical shaft and horizontal shaft
All the parts are made of stainless steel
High quality machining
Refining Machine



Automatic Disc Oil Separator Three Phase Disc Centrifuge Separator 5
Material



Super stainless steel
Function
Running in High speed
Assembly
Precision assembly
Speed
5000-12000 RPM
Automatic Disc Oil Separator Three Phase Disc Centrifuge Separator 6

PLC control box

The separator is equipped with an automatic control cabinet. It consist of an industrial computer and auto overload protector, is highly automated, highly adaptive to change in process, easy to adjust, can greatly reduce the operation labor of workers.

Automatic Disc Oil Separator Three Phase Disc Centrifuge Separator 7

Product Equipment

Our company has set-up a first class laboratory for Chemical composition analysis, metallographic analysis, spectrum analysis, performance analysis, radiographinc inspection, magnetism inspecion, ultra-sonic inspection and etc. This is to imply with the latest adva nce instrumentationss and rigorous working attitude to ensure every part of product is stable and reliable.

Separator on site


Automatic Disc Oil Separator Three Phase Disc Centrifuge Separator 8



Our service


1. Professional Engineer wil recommend you the most suitable model according to your requirement.
2. Supply reference process flow chart .
3. Supply on-site installation and operation test
4. Integration for control system and process
5. Customized size and structure
6. 12Months guarantee period from machine arriving date.


Our company



Juneng Group

Juneng Group is a large scale manufacturer of industrial products in China. This group principally engaged with the in-house research & development as well as manufacturing of various industrial filters, separators , centrifuges and pumps.

The Company is proud to be the leader in such industry with approximately 90% domestic market share in Oils & Fats industry, Chemical industry, Pharmaceutical industry, Beverage industry, Petrol-chemical industry, and now is one of the well-known producers and suppliers in World .

The Company now has its three production bases with a total capacity of 280,000 square meters in Nanjing city and Yixing City , permanent workforces not less than 1100 people and the production line is well equipped with more than 2000 inits of advanced production equipment and test Instrumentation .

Automatic Disc Oil Separator Three Phase Disc Centrifuge Separator 9

Jiangsu Juneng Machinery Co., Ltd in Yixing

We are professional in manufacturing disc separators and liquid pumps.If you would have any plan on these items,please feel free to contact us. We are happy to recommend the most suitable model for you.



Operational Tenets of Juneng Group:

*Strategy: Being professional and devoted to build up core competitiveness
*Market: European quality, Chinese price
*Mangement: practical, standard and successive improvement
*Service: honest, responsable and timely
*Talent: merits, cooperation and caring
*Technology: technology leadership
