Food Grade Stainless Steel 304 Juice Separator 380mm Diameter

Place of Origin Yixing, Jiangsu
Brand Name Juneng
Certification CE
Model Number DBY609
Minimum Order Quantity One set
Price $ 10,000-30,000 / set
Packaging Details Standard Wooden Case
Delivery Time 70 Days
Payment Terms TT, L/C
Supply Ability 10 set / months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product High Speed, Run Steady, Hermetic And High Efficiency Juice Separator Material SS304 Food Grade
Inner Diameter Of Drum 380mm Max Speed ~7600rpm
Volume Of Drum ~5 L Period Of Discharging 120~9999S,can Be Adjusted
Weight ~1300Kg
High Light

food grade Juice Separator


stainless steel 304 Juice Separator


380mm liquid separator

Leave a Message
Product Description

High speed, run steady, hermetic and high efficiency juice separator




People never stop bringing forward higher requirements for high quality and diversity of beer, wine, fruit juice, vegetable juice, coffee, tea, milk and other beverage.


Solid-liquid separation is a chain of great importance in the beverage manufacturing process.


The separators made by Juneng can meet the requirements in the above industries, because the dividualized process control can realize maximized processing efficiency during the processing.

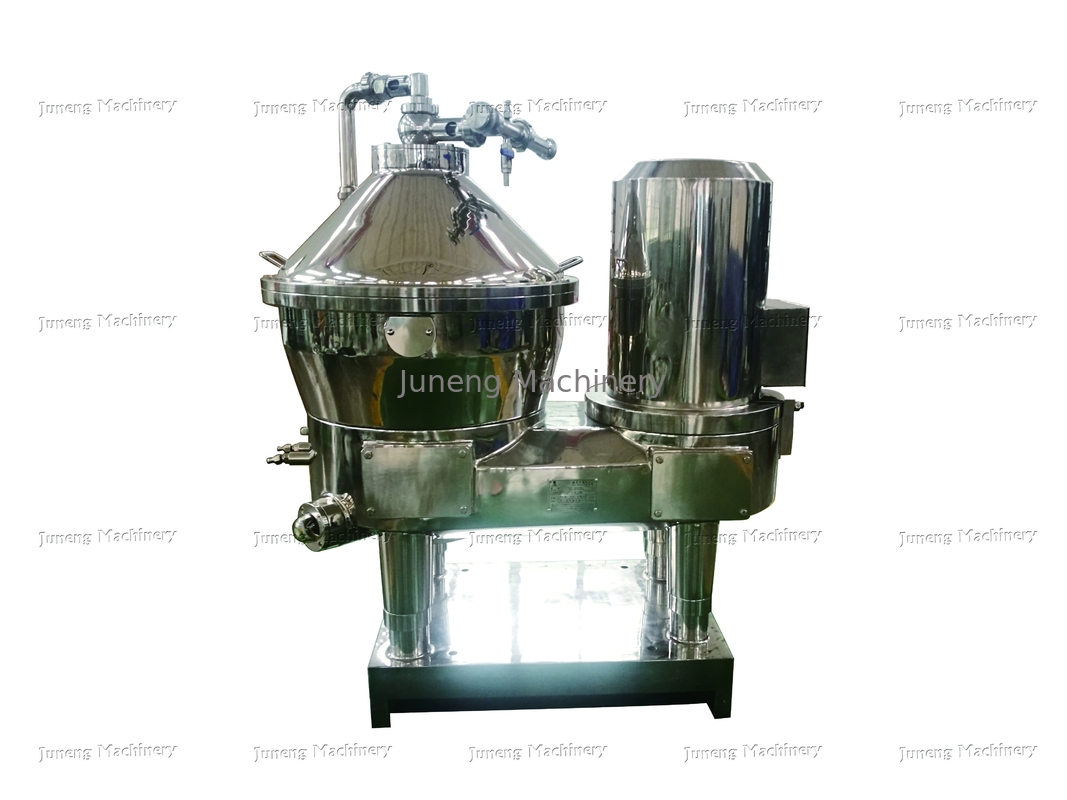

Food Grade Stainless Steel 304 Juice Separator 380mm Diameter 0




Disk Separators are full automatic control equipments which have high speed, run steady, hermetic and high efficiency. All parts & components contacting materials are made of stainless steel, can effectively minimize chemical reaction between the materials to be separated and part surface contacted. The separated light phase material will be output by centripetal pump, maximum output pressure can get to 0.3MPa. This machine is fed upper, so it has very low inlet pressure for materials.

 Food Grade Stainless Steel 304 Juice Separator 380mm Diameter 1



Details Information


 Model  DBY609
 Control  PLC control cabinet

 Continuously operation

Inner diameter of drum  380mm
 Voltage  220 V, 380 V , 460 V or others
 Weight  1300kg
 Material  SS304 food grade
 Product  Coconut water, coconut milk, green tea, coffee, bear etc.


Working principle


The separated material will be input into the heart of the separator, i.e. the drum. By the strong centrifugal force field, the material passes the separation partition consists of disk string, the solid in higher specific gravity (heavy phase) will move toward the big end along disk wall, accumulate at the residue-settling area, and be discharged regularly; The liquid in lower specific gravity (light phase) will move toward the small end along disk wall, then assemble at the small centripetal pump, and output by it.


Product Application


Juneng Juice Separator, with the special design for centripetal pump and inlet/outlet port, create a soft separation environment for material to ensure the active ingredient in the material is not destroyed and make the nutritional value and freshness as well as original flavor keep well.


Juneng Juice Separator is suitable for dairy clarifying, separation of milk and cream, syrup , vegetable juice, tea drinks, coffee, beer etc.


Quality Guarantee


1, Every company deeply understand that quality is the basic weapon for an enterprise to win. Quality is one of the factor that helped the business to achieve success, so we strive to provide qualitative business.

2, Our Quality Control department is comprised of experienced engineers, technicians and QC inspectors. The best products from the high reputation company and will do better than any other company


Why Choose Juneng


 1 . Factory visit is available if you need  2 . Preferential quotation is provided.
 3 . 24 hours technical consultation  4 . Compliance to delivery lead time
 5 . Technicians are availabled for overseas service  6 . Sufficient spare parts in stock are available.


Our company

Food Grade Stainless Steel 304 Juice Separator 380mm Diameter 2

Product Name

Juneng Machinery Factory


Jiangsu Juneng Machinery Co.,Ltd(South)


Juneng Machinery (China) Co.,Ltd(Nanjing)


Jiangsu Juneng Machinery Co.,Ltd(North)


Juneng Machinery (China) Co.,Ltd(Nanjing)


Jiangsu Juneng Machinery Co.,Ltd(South)


Juneng Manufacture Scope


 1 . Disc Separator


 2 . Decanter Centrifuge


 3 . Filter


 4 . Pump


 5 . Thin-film Evaporator


 6 . Siphonic Centrifuge


 7 . Heat Exchanger














Food Grade Stainless Steel 304 Juice Separator 380mm Diameter 3Food Grade Stainless Steel 304 Juice Separator 380mm Diameter 4
