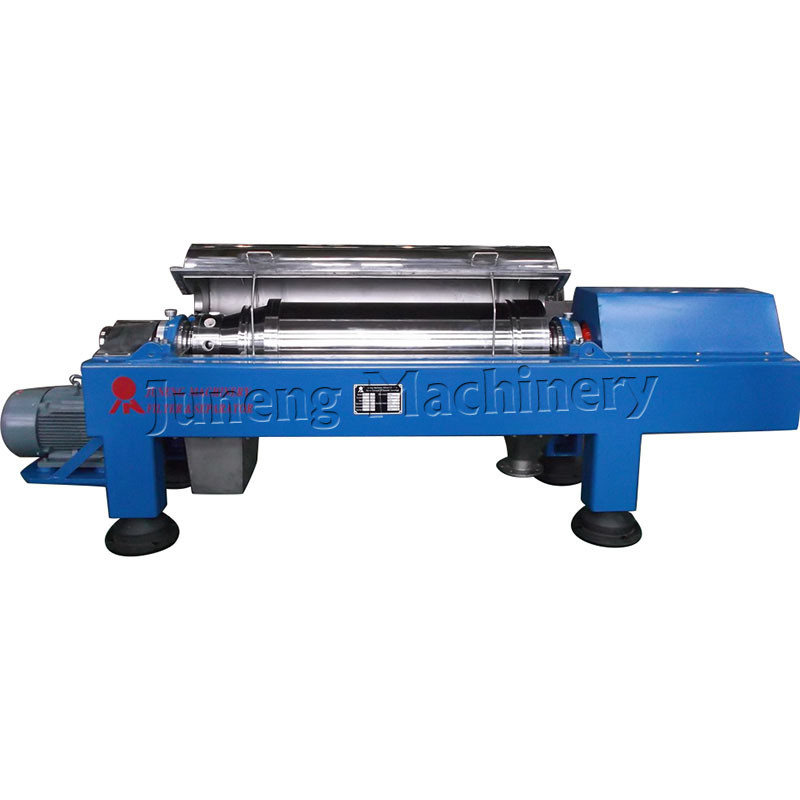

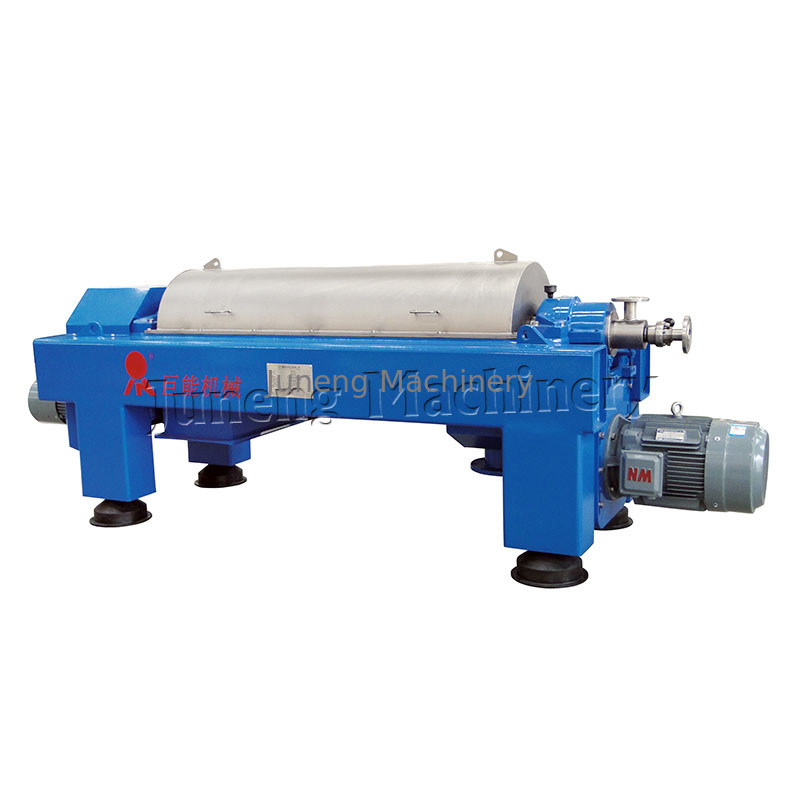

Two Phase Stainless Steel Scroll Decanter Centrifuge For Centrifugal Dewatering

Place of Origin Jiangsu,China
Brand Name Juneng
Certification CE/ISO
Model Number LW450W
Minimum Order Quantity 1 set
Price USD15000~100000/set
Packaging Details seaworthy packing
Delivery Time 30-50 days
Payment Terms L/C, T/T
Supply Ability 20 sets/month
Product Details
Product Name Two Phase Stainless Steel Scroll Decanter Centrifuge For Centrifugal Dewatering Material Stainless Steel
Working Hours Continuous (24h/d) Or Intermittent Operation Voltage Design For Different Country
Power According To The Model Weight According To The Model
Dimension(L*W*H) 4380×1143×1371
Leave a Message
Product Description

Two Phase Stainless Steel Scroll Decanter Centrifuge For Centrifugal Dewatering

1.Introduction

Decanter centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference.

The centrifuges which made by out factory can clarify, dehydrate and classify the suspensions with 0.002-3 mm solid-phase particles and thickness range at 0.5~40%.

Two Phase Stainless Steel Scroll Decanter Centrifuge For Centrifugal Dewatering 0

2.Technogical parameters



Diameter 450mm Voltage : 220V, 380V,440V,460V
Speed Inverter Control Electrical Components: World Famous Brand
Operation Continuous Separation : Two phase
Bearing SKF Moc : SS304, SS316L, SS2205
Control PLC Motor : 2

3.Product structure

The centrifuge is a countercurrent horizontal spiral discharge sedimentation centrifuge for sludge dewatering. The main engine is composed of drum (stainless steel 2205), screw (stainless steel 2205+316L) and differential system. The differential speed is automatically fed back and adjusted according to the load change, and the pushing power is automatically compensated to ensure the constant dryness of the solid slag and get a drier solid slag.

Two Phase Stainless Steel Scroll Decanter Centrifuge For Centrifugal Dewatering 1



It is poured by an integral centrifuge, and then processed by precision turning after solution treatment. The solid phase slag discharge port is equipped with replaceable tungsten carbide wear-resistant bushing. The inner wall of the centrifuge drum is welded with anti-skid wear-resistant strips to prevent the solid particles from tangential rotation and wear on the inner wall of the drum.

Two Phase Stainless Steel Scroll Decanter Centrifuge For Centrifugal Dewatering 2

The spiral hollow design allows the supernatant to easily flow axially and directly to the liquid outlet of the horizontal centrifuge, ensuring a high water flux, thus improving the processing capacity and clarity of the centrifuge.



Two Phase Stainless Steel Scroll Decanter Centrifuge For Centrifugal Dewatering 3

4.Main specification and technological parameters



Model
Drum diameter mm
Inlet liquid capacity㎥/h
Power of main/auxiliary motor Kw
Weight Kg
Dimension (max) mm
LW250
250
1-4
11/4
1200
2650*720*900
LW(F)250
250
1-4
11/4
1200
2650*720*900
LW250(W)
250
1~5
11/4
1300
2750*720*900
LW350
350
5~15
22/5.5
2000
3585*980*1238
LW(F)350
350
5~15
22/5.5
2000
3585*980*1238
LW350(W)
350
5~18
15/5.5
2200
3412*1090*950
LW(S)350
350
2~10
22/5.5
2000
3676*980*1238
LW450
450
5~20
30/11
3000
4380*1080*1360
LW(F)450
450
5~20
30/11
3000
4380*1080*1360
LW450(W)
450
5~28
30/11
3200
4380*1080*1360
LW(S)450
450
5~15
37/11
3200
4195*1080*1360
LW520
520
10~26
45/15
5000
4840*1160*1465
LW(F)520
520
10~26
45/15
5000
4840*1160*1465
LW520(W)
520
10~35
16742
5000
4840*1160*1465
LW550W
550
10-45
20394
6500
5038*1388*1578
LW650A
650
7-9T
110
8000
4407*2280*1340
LW650(W)
650
25-60
75/22
8000
5500*2280*1340
LW720A
720
8-10T
132/160
11000
4410*3280*1450
LW720(W)
720
35-85
110/30
13000
5600*3280*1450

*** F: Ex-proof, W:Waste water, S: Three phase FS: Ex-- proof and three phase





5 Our service

After-sales Service Technical Team

Our company has set up a professional after-sales service technical team. All sell-offs products shall have engineer to guide installation, assist debugging and train operators until they have mastered them.

If problem occurs while the equipment operation, we will immediately process it, promise to feedback within two hours after informed. After-sales service engineer shall be arranged to the site to solve the problems. He will never leave, until the user satisfaction.


Two Phase Stainless Steel Scroll Decanter Centrifuge For Centrifugal Dewatering 4





6 Juneng Group

Juneng Machinery (China) Co., Ltd in Nanjing

We are devoted to centrifuges and dryers, which could used in various industries, such as environmantel protection, food industry, chemical industry and pharmaceutic industry etc.



Product Name Juneng Machinery Factory
Separator Jiangsu Juneng Machinery Co.,Ltd(South)
Centrifuge Juneng Machinery (China) Co.,Ltd(Nanjing)
Filter Jiangsu Juneng Machinery Co.,Ltd(North)
Dryer Juneng Machinery (China) Co.,Ltd(Nanjing)
Pump Jiangsu Juneng Machinery Co.,Ltd(South)





Two Phase Stainless Steel Scroll Decanter Centrifuge For Centrifugal Dewatering 5



Our company has a professional design team of horizontal separators, which are researched and manufactured by professionals from the analysis of urban sewage materials, kitchen waste and gutter oil to the design, control and automation of machines.



Two Phase Stainless Steel Scroll Decanter Centrifuge For Centrifugal Dewatering 6

Our team



Two Phase Stainless Steel Scroll Decanter Centrifuge For Centrifugal Dewatering 7

Metallographic analysis



Two Phase Stainless Steel Scroll Decanter Centrifuge For Centrifugal Dewatering 8

Dynamic balance detection





Certifications

Two Phase Stainless Steel Scroll Decanter Centrifuge For Centrifugal Dewatering 9

Packing&Delivery

Two Phase Stainless Steel Scroll Decanter Centrifuge For Centrifugal Dewatering 10



Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Delivery
By train or by sea
