Milk Cream Separator Machine
Created with Pixso. Milk Clarify Or Milk Degrease Disc Separator Centrifuge With High Speed

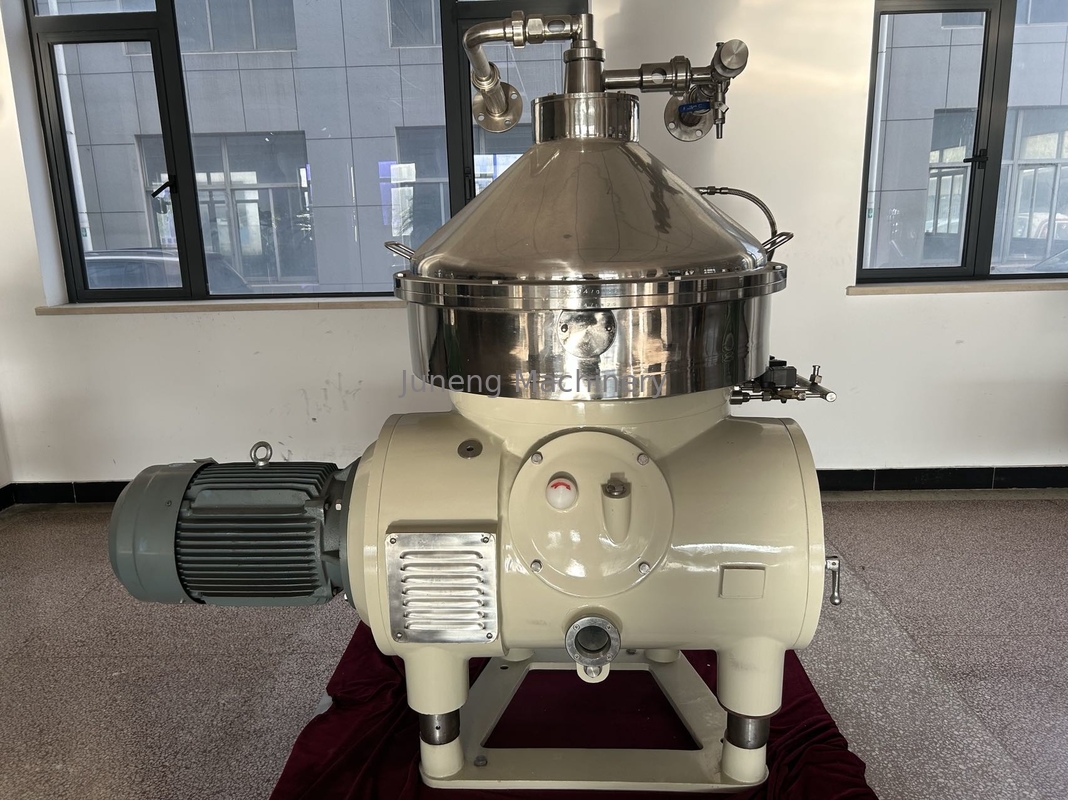

Milk Clarify Or Milk Degrease Disc Separator Centrifuge With High Speed

Brand Name: Juneng
Model Number: DHN470
MOQ: One set
Price: US.20000- US.100000
Delivery Time: 40 days
Payment Terms: TT, L/C
Detail Information
Place of Origin:
China(Yixing, Jiangsu)
Certification:
CE, ISO9001
Product Name:
Milk Clarify Or Milk Degrease Disc Separator Centrifuge With High Speed
Max Flow:
10m3/h
Motor Power:
18.5KW
Outline Dimension (L×W×H):
1800*1200*1750mm
Weight:
~1880Kg
Packaging Details:
Standard Wooden Case
Supply Ability:
40 sets / months
Highlight:

1800*1200*1750 mm Disc Separator Centrifuge

,

Disc Separator Centrifuge With High Speed

,

Milk Degrease Disc Separator Centrifuge

Product Description

Milk clarify or milk degrease disc separator centrifuge with high speed



1. Product Description



With the gradual increasing in people's living, the dairy and beverage consumer market also continues to expand, as a result the people's attitudes of consumer also increase strongly from "drink milk" to "drink good milk". So the advanced equipments are very imprtant in the production process.



The centrifugal separator from Juneng has the special design for the centripetal pump and inlet/outlet port will create a soft separation environment for the material to ensure the active ingredient in the material is not destrooyed and made the nutritional value and freshness as well as original flavor keep well.



Milk cream separator is mainly used in milk processing industry, continually separate out cream and defatted milk from pure milk, at the same time remove the impurities and sediments, and it also can realize milk standardization according to fat content.



Juneng Separator enable separate the extreme tiny ( as less than 1mm) solid particles which dispersed in suspensions from the liquid phase out.

Milk Clarify Or Milk Degrease Disc Separator Centrifuge With High Speed 0

2.Separator model list

DHN model is applied to dairy clarification

Model Capacity L/H
Inlet Pressure
Outlet pressure
Weight
Dimension mm
DHN360
2000-5000
0.05 Mpa
0.1-0.35 Mpa
1200 kg
1530*1150*1500
DHN470
5000-10000
0.05 Mpa
0.1-0.4 Mpa
1600 kg
1800*1200*1750
DHN550
10000-20000
0.05 Mpa
0.1-0.4 Mpa
2300 kg
1950*1550*1960
DHN616
25000-35000
0.1 Mpa
0.3 Mpa
3000 kg
2185*1728*2082



DHNZ model is applied to dairy skimming


Model
Capacity L/H
Inlet pressure
Outlet pressure
Weight
Dimension
DHNZ204
500-1000
0.05 Mpa
0.1-0.2 Mpa
520 kg
810*850*1350
DHNZ360
1000-3000
0.05 Mpa
0.1-0.2Mpa
1200 kg
1530*1150*1500
DHNZ470
3000-7000
0.05 Mpa
0.1-0.2 Mpa
1600 kg
1800*1200*2030
DHNZ550
5000-10000
0.05 Mpa
0.1-0.2Mpa
2300 kg
1950*1550*960



3.Working principle





3.1 Separator working principle for dairy clarification

Clarification mean two phase separation. The materials are feeding into the heart parts of this machine, the inside of the bowl. Under the action of strong centrifugal force, the impurity will be removed from the raw material then get the clean milk.



3.2 Separator working principle for dairy skimming

The disc separator is specially used for the two-phase and three-phase separation. The two-phase separation is to separate the s uspended solid from liquid or s eparate two liquids which have the different specific gravity and are immiscible. The three-phase separation is to separate the two immiscible liquid phases and a phase of solid at the same time .

 Milk Clarify Or Milk Degrease Disc Separator Centrifuge With High Speed 1





4.Separator application

1. Hot milk separation

2. Cold milk separation

3. Whey protein separation

4. Buttermilk separation

5. Dairy whey clarification

6. Disinfection of dairy products

7. Casein

8 . Syrup clarification

9. Vegetable juice clarification

10 Tea drinks, coffee, Beer and other liquid clarification



5.Main features

1, High rotating speed
2, Operating stability
3, Completely sealed up of the inlet and outlet system
4, Lower noise
5, Perfect separating affection.

6.Detailed Images
Milk Clarify Or Milk Degrease Disc Separator Centrifuge With High Speed 2

Parts in the rotating bowl drum

ll parts & components contacting materials are made of stainless steel, can effectively minimize the corrosion from the materials to be separated, and meet hygienic requirements for food.

The separator bowl has gone through precise dynamic balance, it can run steadily, with low vibration and noise at operation.

Milk Clarify Or Milk Degrease Disc Separator Centrifuge With High Speed 3
Vertical shaft and horizontal shaft
All the parts are made of stainless steel
High quality machining
Refining Machine



Milk Clarify Or Milk Degrease Disc Separator Centrifuge With High Speed 4
Material
Super stainless steel
Function
Running in High speed
Assembly
Precision assembly
Speed
5000-12000 RPM
Milk Clarify Or Milk Degrease Disc Separator Centrifuge With High Speed 5

PLC control box

The separator is equipped with an automatic control cabinet. It consist of an industrial computer and auto overload protector, is highly automated, highly adaptive to change in process, easy to adjust, can greatly reduce the operation labor of workers.

Milk Clarify Or Milk Degrease Disc Separator Centrifuge With High Speed 6

Product Equipment

Our company has set-up a first class laboratory for Chemical composition analysis, metallographic analysis, spectrum analysis, performance analysis, radiographinc inspection, magnetism inspecion, ultra-sonic inspection and etc. This is to imply with the latest adva nce instrumentationss and rigorous working attitude to ensure every part of product is stable and reliable.
