Mutifunctions Agitated Filtration Washing Dryer Filter Vertical Compact

Place of Origin Jiangsu,China
Brand Name Juneng
Certification ISO/CE
Model Number GXG
Minimum Order Quantity 1 set
Price USD36000-200000/set
Packaging Details seaworthy packing
Delivery Time 60 work days
Payment Terms L/C, T/T
Supply Ability 20 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Muti-functions Agitated Filtration Washing Dryer Filter Which Can Keep Warm Service Machinery Overseas Material Carbon Steel, Stainless Steel 304/316, Hastelloy
After Warranty Service Video Technical Support, Online Support, Spare Parts Structure Vertical Compact Structure
Function Seperation Type Liquid Filter
High Light

Multi functions agitated filtration dryer filter

,

agitated filtration dryer filter

,

Vertical Compact agitated filtration dryer filter

Leave a Message
Product Description

Muti-functions agitated filtration washing dryer filter which can keep warm



Product Description

This multi-functions filtering, washing , drying (three in one ) machine is a solid-liquid equipment with the functions of filtration, washing, drying reaction and residue discharging automatically.

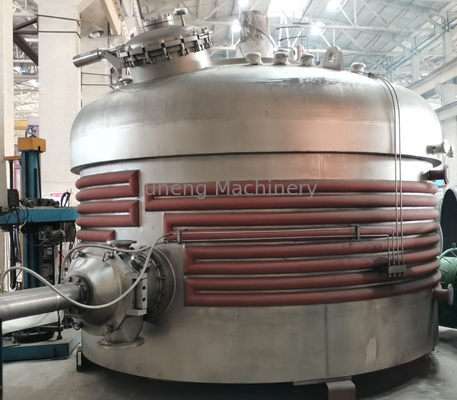

Mutifunctions Agitated Filtration Washing Dryer Filter  Vertical Compact 0







Main technological parameters

Model

Filtration area ㎡

Shell
diameter (mm)



Work
pressure (Mpa)



Nominal
volume (m3)



Filter cake
height (mm)



GXG-600

0.28

600

-0.1~0.3

0.2

150

GXG-800

0.5

800

-0.1~0.3

0.5

180

GXG-1200

1.1

1200

-0.1~0.3

1.3

250

GXG-1600

2.0

1600

-0.1~0.3

2.8

350

GXG-2000

3.1

2000

-0.1~0.3

4.8

400

GXG-2400

4.5

2400

-0.1~0.3

6.5

450

GXG-2600

5.3

2600

-0.1~0.3

8.7

450

GXG-2800

6.0

2800

-0.1~0.3

12

450

GXG-3000

7

3000

-0.1~0.3

13

500

GXG-3200

8

3200

-0.1~0.3

14.5

500

*Operating temperature is limited by working temperature of the sealing material, the lifting length of stirred axis can be designed according to users’ demands, and technical norms also can be designed as non-standard according to users’ demands.

Applications

GXG series is widely used in fine chemical, petroleum, foodstuff, printing, pharmaceutical industries, Glyphosate, Penicillin and so on.



Main features

1) Full enclosed filter, no leakage, no pollution

2) Solid-liquid separation can be realized under pressure or vacuum state. Filter cakes evenly distributed when filtering which has good effect.

3) Stirring system can stepless speed regulating and multi-function work. It can enlarge furthest for the cake space, thus filter cake can be fully cleaned; the time of drying is reduced greatly, with high efficiency.

4) Discharge valve can discharge automatically which can lower labor intensity.

5) Especially suitable for the material that large solid content, and recovering liquid phase and solid phase respectively.

6) Adopting horizontal placing filter material, one time completely filtering no remains. Filter material has unique sealing structure which is easy to be changed.

7) Anticorrosion three in one system is made of special material which can be suitable for multiform anticorrosion medium.

8) Stirring, mixing , beating , reacting, washing and multiform process working can be practiced in the body and it can carry out full automatic control.







Our company

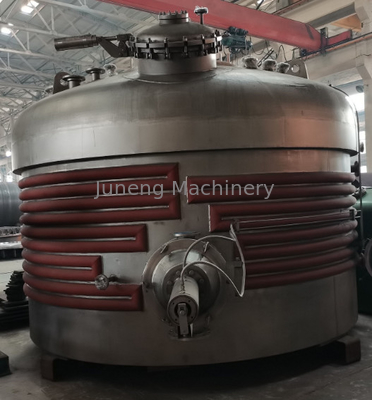

Mutifunctions Agitated Filtration Washing Dryer Filter  Vertical Compact 1

Branch of Juneng in Nanjing

Juneng Company now has its three production bases with a total capacity of 280,000 square meters in Nanjing city and Yixing City , permanent workforces not less than 1100 people and the production line is well equipped with more than 2000 inits of advanced production equipment and test Instrumentation .



Our Service



Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.



After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

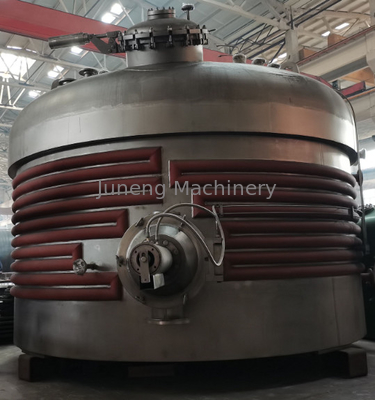

Mutifunctions Agitated Filtration Washing Dryer Filter  Vertical Compact 2
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

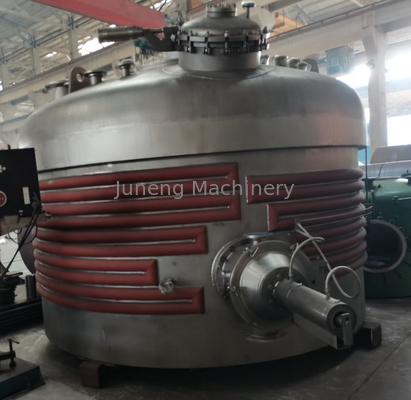

Mutifunctions Agitated Filtration Washing Dryer Filter  Vertical Compact 3
