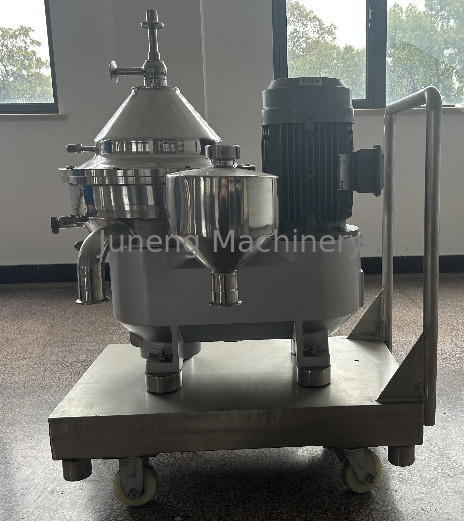

High Speed Centrifuge Disc Separator 2 Phase For Fruit Juice

Place of Origin Yixing, Jiangsu
Brand Name Juneng
Certification CE\ISO
Model Number DBY603
Minimum Order Quantity One set
Price $ 10,000-30,000 / set
Packaging Details Standard Wooden Case
Delivery Time 70 Days
Payment Terms TT, L/C
Supply Ability 10 set / months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name 2 Phase Disc High Speed Centrifuge Separator For Fruit Juice I.D. Of Drum 226 Mm
Drum Speed 11500 Rpm Separating Factor 14600
Rated Capacity ≥500L/h Motor Power 4 Kw
Outline Dimension (L×W×H) 900mmx400mmx810mm Weight ~150kg
High Light

High Speed Centrifuge Disc Separator


Centrifuge Separator For Fruit Juice


2 Phase Centrifuge Disc Separator

Leave a Message
Product Description

2 Phase disc high speed centrifuge separator for fruit Juice

Product Application


Juneng Juice Separator, with the special design for centripetal pump and inlet/outlet port, create a soft separation environment for material to ensure the active ingredient in the material is not destroyed and make the nutritional value and freshness as well as original flavor keep well.

High Speed Centrifuge Disc Separator 2 Phase For Fruit Juice 0


Working principle

The material [turbid liquid] enters drum through feed pipe, by the powerful centrifugal force field, the material passes the separating compartment of a set of disc bunches, by taking the neutral holes in the disc as separating face, the liquid with higher specific gravity (heavy phase) will move out the holes along the disc wall toward the big centripetal pump (upper); the heavy sediment (sundries, fatlute) accumulate at the sediment area; the liquid with lower specific gravity (light phase) will move inward and upward along the disc, assemble and flow to the small centripetal pump (lower), the light/heavy phase will respectively be output by big and small centripetal pump.


Details Information

Model DBY 603
Control PLC control cabinet
Operation Continuously operation
Motor 4 Kw
Voltage 220 V, 380 V , 460 V or others
Capacity 300-1000 L / H , it depends on the feeding liquid
Material SS304 food grade
Product Coconut water, coconut milk, green tea, coffee, bear etc.



Juneng Juice Separator is suitable for dairy clarifying, separation of milk and cream, syrup , vegetable juice, tea drinks, coffee, beer etc.


General fruits and vegetables: ketchup juice, carrot juice, lycopene, apple juice, lemon juice, orange juice, grape juice, citrus juice, etc.


Tropical fruits: passionflower, mango, pineapple, guava, papaya, etc.


Vegetable fruits: celery, lettuce, cucumber, onion,garlic,spinach,etc.



Name: Drum bowl
Brand: Juneng
Original: China
The drum is a component to separate material and rotates at high speed, is the heart of the separator.


Factory use sugar cane juice separator disc stack centrifuge in solid-liquid separation


Juneng Group
 High Speed Centrifuge Disc Separator 2 Phase For Fruit Juice 2
Juneng Group is a large scale manufacturer of industrial products in China. This group principally engaged with the in-house research & development as well as manufacturing of various industrial filters, separators , centrifuges and pumps.
The Company now has its 4 production bases with a total capacity of 280,000 square meters in Nanjing city and Yixing City , permanent workforces not less than 1100 people and the production line is well equipped with more than 2000 inits of advanced production equipment and test Instrumentation
Juneng Manufacture Scope
1 . Disc Separator                                                           2 . Decanter Centrifuge
3 . Filter                                                                           4 . Pump
5 . Thin-film Evaporator                                                   6 . Siphonic Centrifuge
7 . Heat Exchanger


Production workshop

The largest production factory in China in Separator, Centrifuge and Filter

High Speed Centrifuge Disc Separator 2 Phase For Fruit Juice 3

Our Aavantages

Juneng Separator is one of the market leaders in the field of centrifugal separating technology. The company has been developing and manufacturing centrifugal separation equipment for more than 30 years.


40000+ Installations

Since 1988, there are more than 40000+ centrifuges from Juneng Separator installed in more than 50+ Countries.


100+ Centrifuge models

In order to satisfy customer's demand from various field, more than 100+ centrifuge modles have been launched.



Worldwide many well-know manufacturers of food and pharmaceutical rely on Juneng centrifugal separation technology.


People never stop bringing forward higher requirements for high quality and diversity of beer, wine, fruit juice, vegetable juice, coffee, tea, milk and other beverage.
Fruit juices contain various essences. But some components such as tannin (tannic acid), pectin (carboxymethyl cellulose) ,residues and crude fiber formed in pretreatment processes such as peeling and stoning may influence the appearance quality of fruit juice products, especially the representation and clarification treatments are carried out according to different process requirements, and they are especially important to clear juices.
The separators made by Juneng can meet the requirements in the above industries, because it create a soft separation environment which ensure the active, nuttrition and freshness of the product, meanwhile the dividualized process control can realize maximized processing efficiency during the processing.
