| Brand Name: | Juneng |
| Model Number: | LW350W |
| MOQ: | 1 set |
| Price: | USD35000-150000/set |
| Delivery Time: | 40 work days |
| Payment Terms: | L/C, T/T |

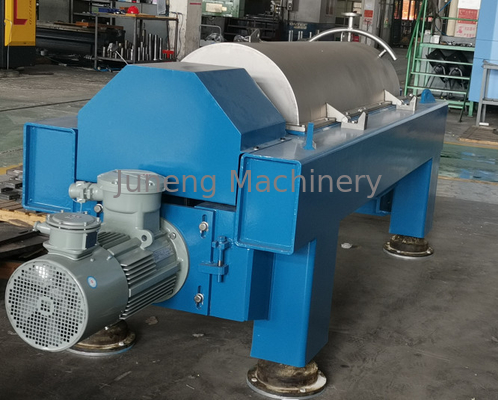

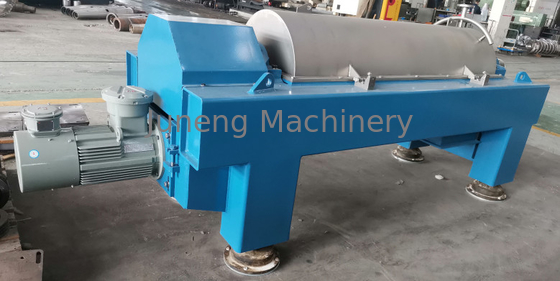

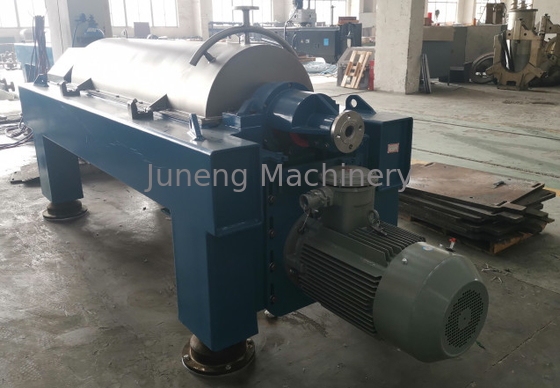

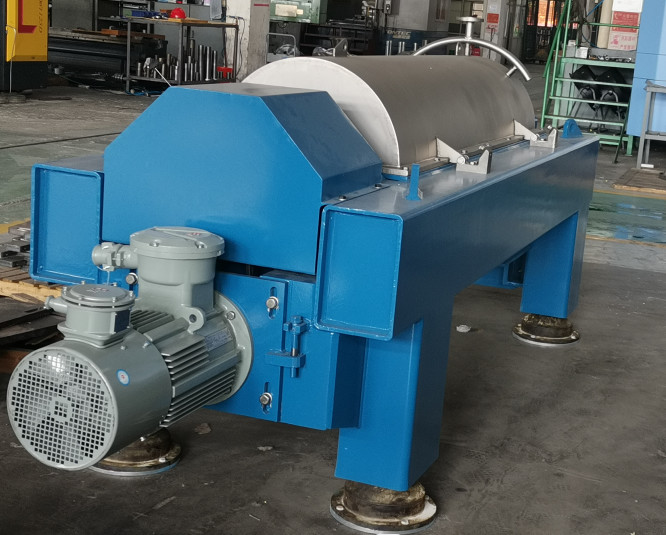

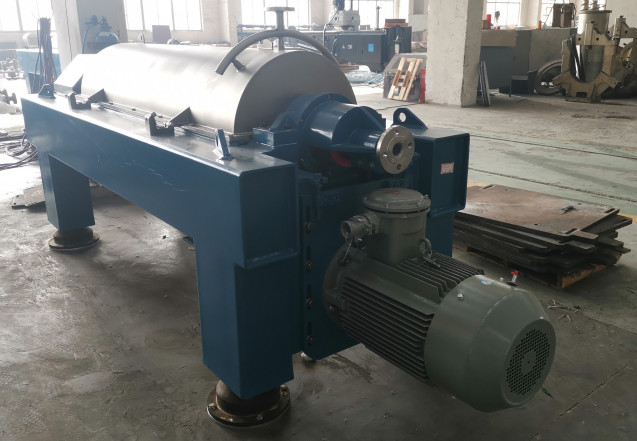

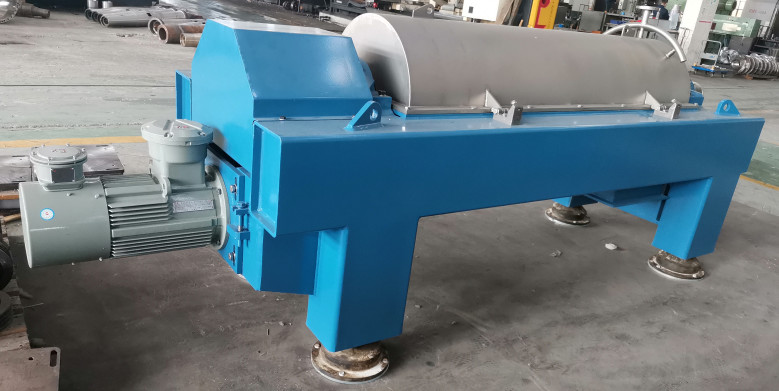

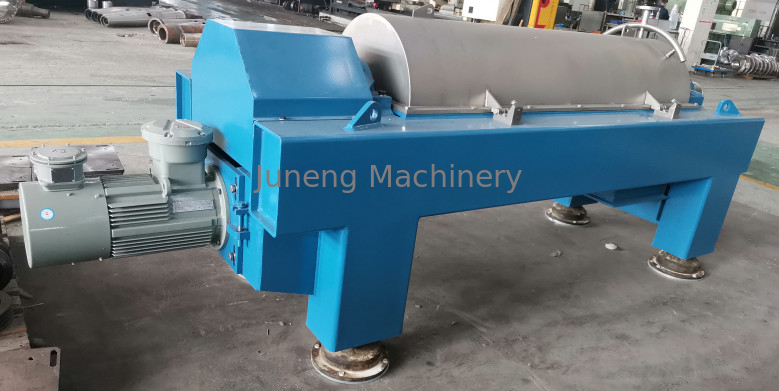

Two-phase scroll discharge decanter centrifuge for centrifugal dewatering
Product Description
Horizontal Scroll Discharge Centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference . The centrifuges which made by our factory can clarify , dehydrate and classify the suspensions with 0.002-3mm solid - phase particles and thickness range at 0.5~ 40 % . The product can be classify into two type LW counter - current and parallel - current base on its structure feature . According to feed feature , product can be divide into LW two - phase separator , LWS three - phase separator . It is suitable for separating different feed under different process condition , and widely use in pharmaceutical , food , chemical , light industry . Environmental Protection Industry etc.
Two phase
Main technological parameters
| Model | Drum diameter mm |
Draw Ratio L/D |
Speed of drum r/min |
Factor of separation G |
Spiral difference rotate speed r/min |
Inlet capacity(m3/h) |
Main/assist motor (KW) |
| LW250W | 250 | 3.73 | 4200 | 2467 | 2~31 | 1-7 | 11/4 |
| LW350W | 350 | 4.4 | 3600 | 2540 | 5~25 | 5~18 | 22/5.5 |
| LW450W | 450 | 4.4 | 3200 | 2580 | 5~25 | 5~28 | 30/11 |
| LW520W | 520 | 4.1 | 2850 | 2365 | 2~26 | 10~35 | 45/11 |
| LW550W | 550 | 4.1 | 2650 | 2370 | 2~26 | 10~45 | 55/11 |
Product structure and operation principle
Production structure : Main body of scroll discharge centrifuge are consist of column - taper drum , helical pusher , speed difference system , shaft seat , frame , encloser , main and auxiliary motor and electric system . Main motor drive drum , auxiliary motor drive planetary gear differential , so that create different speed between drum and screw , then carry on continual separation in 2 4 hours under the strong centrifugal force which produced by the high speed rotate of separator .
Operation principle : Drum and screw rotate at a certain different speed . The feed enters the drum through a stationary inlet tube and is accelerated smoothly by an inlet rotor . The resulting centrifugal forces make the solids collect on the wall of the drum . Screw conveyor continual moving the solid to conical end of drum , discharge through discharge port after dried in the dry area , however , light liquid forms the inner layer and effusion through overflow port of drum , then discharge through liquid outlet port .
Product process
Advantages
1) Lower cake transportation costs due to very dry solids
2) Better recovery of nutrients due to very high separation efficiency
3) Lower fresh water consumption compared to other processes
4) Continuous and fully automatic operation
5) 24 h operating reliability
6) Optimum wear protection
7) Energy saving design
8) Easy to operate
9) Easy to maintain
10) Simple assembly/dismantling
Company profile
We are devoted to centrifuges and dryers, which could used in various industries, such as environmantel protection, food industry, chemical industry and pharmaceutic industry etc.
Our company has a professional design team of horizontal separators, which are researched and manufactured by professionals from the analysis of urban sewage materials, kitchen waste and gutter oil to the design, control and automation of machines.
Our team
Metallographic analysis
Dynamic balance detection
Recently years, we achieve plenty of honors and we have obtained various certifications
