Decanter Centrifuge
Created with Pixso. Scroll Decanter Discharge Centrifuge Stainless Steel With Spray Two Phase 3200r/Min

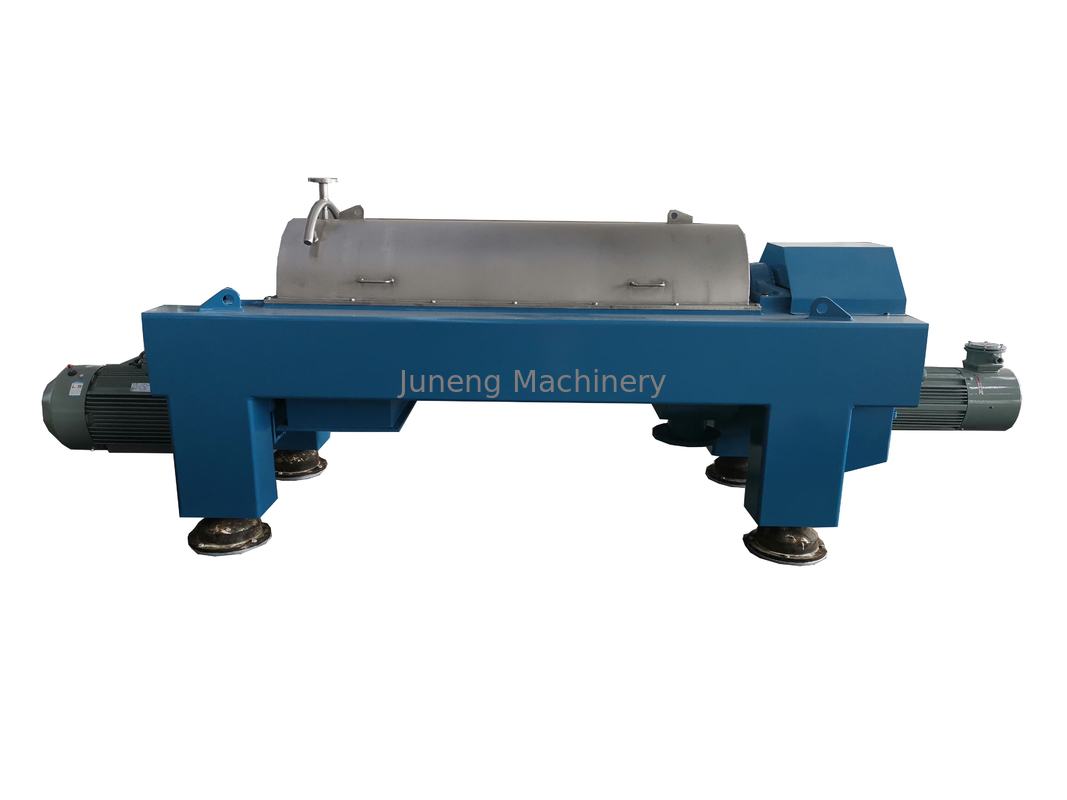

Scroll Decanter Discharge Centrifuge Stainless Steel With Spray Two Phase 3200r/Min

Brand Name: Juneng
Model Number: LW350W
MOQ: 1 set
Price: USD35000-150000/set
Delivery Time: 40 work days
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
Jiangsu,China
Certification:
ISO/CE
Product Name:
Two-phase Scroll Discharge Decanter Centrifuge Stainless Steel With Spary
Core Components:
PLC, Motor
Voltage:
380V
Weight(KG):
2200
Dimension(L*W*H:
3412*1090*950
Drum Speed:
Appr 3200r/min
Packaging Details:
seaworthy packing
Supply Ability:
30 sets/month
Highlight:

Scroll Decanter Discharge Centrifuge Stainless Steel

,

Decanter Discharge Centrifuge With Spray

,

Decanter Discharge Centrifuge 3200r/min

Product Description

Two-phase scroll discharge decanter centrifuge stainless steel with spary



Description

Horizontal Scroll Discharge Centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference . The centrifuges which made by our factory can clarify , dehydrate and classify the suspensions with 0.002-3mm solid - phase particles and thickness range at 0.5~ 40 % . The product can be classify into two type LW counter - current and parallel - current base on its structure feature . According to feed feature , product can be divide into LW two - phase separator , LWS three - phase separator . It is suitable for separating different feed under different process condition , and widely use in pharmaceutical , food , chemical , light industry . Environmental Protection Industry etc.

Scroll Decanter Discharge Centrifuge Stainless Steel With Spray Two Phase 3200r/Min 0

                                                                       Two phase







Main technological parameters



Model
Drum diameter mm
Inlet liquid capacity㎥/h
Power of main/auxiliary motor Kw
Weight Kg
LW250
250
1-4
11/4
1200
LW(F)250
250
1-4
11/4
1200
LW250(W)
250
1~5
11/4
1300
LW350
350
5~15
22/5.5
2000
LW(F)350
350
5~15
22/5.5
2000
LW350(W)
350
5~18
15/5.5
2200
LW(S)350
350
2~10
22/5.5
2000
LW450
450
5~20
30/11
3000
LW(F)450
450
5~20
30/11
3000
LW450(W)
450
5~28
30/11
3200
LW(S)450
450
5~15
37/11
3200
LW520
520
10~26
45/15
5000
LW(F)520
520
10~26
45/15
5000
LW520(W)
520
10~35
16742
5000
LW550W
550
10-45
20394
6500
LW650A
650
7-9T
110
8000
LW650(W)
650
25-60
75/22
8000
LW720C
720
25-50
110/22
12000
LW720(W)
720
35-85
110/30
13000






Product structure and operation principle

Scroll Decanter Discharge Centrifuge Stainless Steel With Spray Two Phase 3200r/Min 1



The material passing through the center feeding pipe into the centrifuge(axid feed). Under the action of centrifugal force and material pressure,it passes through the distributor distributed to the drum. The dense solid phase is deposited on the drum wall, and is transported to the drum body cone by auger delivery then falls from the discharge port to the solid collector box.At the same time, the relatively light liquid phase is not moving with the spiral because of its fluidity, but through the outlet overflow into the liquid aggregate box.



Product process

Scroll Decanter Discharge Centrifuge Stainless Steel With Spray Two Phase 3200r/Min 2
Scroll Decanter Discharge Centrifuge Stainless Steel With Spray Two Phase 3200r/Min 3
Scroll Decanter Discharge Centrifuge Stainless Steel With Spray Two Phase 3200r/Min 4

Separator process workshop



Drum processing



Process center



Scroll Decanter Discharge Centrifuge Stainless Steel With Spray Two Phase 3200r/Min 5
Scroll Decanter Discharge Centrifuge Stainless Steel With Spray Two Phase 3200r/Min 6
Scroll Decanter Discharge Centrifuge Stainless Steel With Spray Two Phase 3200r/Min 7

Ultrasonic testing



Dynamic balancing test



Assembling





Advantages.

1. Lower cake transportation costs due to very dry solids

2. Better recovery of nutrients due to very high separation efficiency

3. Lower fresh water consumption compared to other processes

4. Continuous and fully automatic operation

5. 24 h operating reliability

6. Optimum wear protection

7. Energy saving design

8. Easy to operate

9. Easy to maintain

10. Simple assembly/dismantling


Application

1. Washing and dehydration of starch

2.Dehydration of soybean wheat proteins

3.Dehydration of fish meal and fish

4.Dehydration of brewers' grains

5.Purification of juice and dehydration of fruit fiber

6.Separation and purification of animal and vegetable oil

7.Separation and purification of coal tar

8.Clarification and purification of gypsum

9.Classification and dehydration of starch

10.Classification and dehydration of Kaolin and graphic

11.Classification and dehydration of dyes and pigments

12.Classification and dehydration of mineral thick liquid





Company profile



Juneng Machinery (China) Co., Ltd in Nanjing

We are devoted to centrifuges and dryers, which could used in various industries, such as environmantel protection, food industry, chemical industry and pharmaceutic industry etc.



 Product Name

 Juneng Machinery Factory

 Centrifuge

 Juneng Machinery (China) Co.,Ltd(Nanjing)

 Dryer

 Juneng Machinery (China) Co.,Ltd(Nanjing)





Scroll Decanter Discharge Centrifuge Stainless Steel With Spray Two Phase 3200r/Min 8



Our company has a professional design team of horizontal separators, which are researched and manufactured by professionals from the analysis of urban sewage materials, kitchen waste and gutter oil to the design, control and automation of machines.



Scroll Decanter Discharge Centrifuge Stainless Steel With Spray Two Phase 3200r/Min 9

                                         Our team



Scroll Decanter Discharge Centrifuge Stainless Steel With Spray Two Phase 3200r/Min 10

                                   Metallographic analysis



Scroll Decanter Discharge Centrifuge Stainless Steel With Spray Two Phase 3200r/Min 11

                               Dynamic balance detection



Certifications

Scroll Decanter Discharge Centrifuge Stainless Steel With Spray Two Phase 3200r/Min 12

Packing&Delivery

Scroll Decanter Discharge Centrifuge Stainless Steel With Spray Two Phase 3200r/Min 13



Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Delivery
By train or by sea
