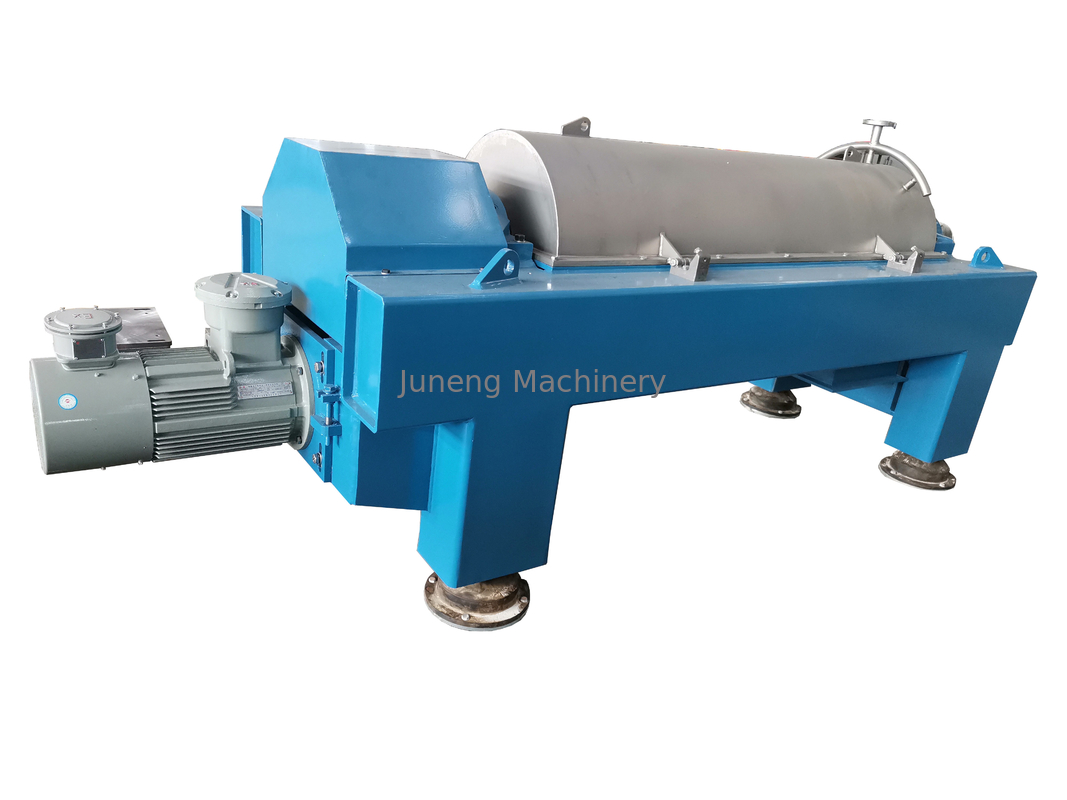

Stainless Steel Scroll Decanter Centrifuge Double Motor Two Phase With Spray

Stainless Steel Double Motor Two phase Scroll Decanter Centrifuge With Spray

1.Introduction

Centrifugal sedimentation is the working principle of this centrifuge, it can separate two phases (suspended solid liquid and liquid), and three phases (solid-liquid-liquid), solid phase is pushed out by spiral continually; this equipment is a constant and high effective equipment which used in separating solid-liquid.

Decanter centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference.
The centrifuges which made by out factory can clarify, dehydrate and classify the suspensions with 0.002-3 mm solid-phase particles and thickness range at 0.5~40%. The product can be classify into two type LW-counter-current and parallel-current base on its structure feature.
According to feed feature, product can be divide into LW two-phase separator, LWS three-phase separator. It is suitable for separating different feed under different process condition, and widely use in pharmaceutical, food, chemical, light industry, environmental protection industry etc.

2.Working principle

The material passing through the center feeding pipe into the centrifuge(axid feed). Under the action of centrifugal force and material pressure,it passes through the distributor distributed to the drum. The dense solid phase is deposited on the drum wall, and is transported to the drum body cone by auger delivery then falls from the discharge port to the solid collector box.At the same time, the relatively light liquid phase is not moving with the spiral because of its fluidity, but through the outlet overflow into the liquid aggregate box.

3.Technogical parameters

4.Product structure

Adopt planet-gear differentia for the machine, so the torque of pusher is large, use transducer driver for the differential motor, differential speed can be adjust stepless, and have a well adaptable for materials.

Inspection steps: stopping the machine and all power supply of electrical equipment has been cut off, open the machine upper cover, check the joint of drum cover and flange which in both two-side solid end and upper end cover of liquid end, inspect drum end cover. In addition, solid material plug holes of machine should be checked, double-check all the wear and tear, cracks, or corrosion components which can be seen, any parts was found need to be maintained and must be repaired before re-use, in addition to do above examinations, user should double-check the wear condition of screw conveyer and all outlet opening, any wear components must be repaired or replaced.

5.Certifications

6.Our company





Product Name	Juneng Machinery Factory
Centrifuge	Juneng Machinery (China) Co.,Ltd(Nanjing)
Dryer	Juneng Machinery (China) Co.,Ltd(Nanjing)



Juneng Machinery (China)Co., Ltd., established in 2006, is a professional manufacturer engaged in the research, development, production, sale and service of Filter, Separator, Decanter centrifuge and pump. We have four factories which located in Nanjing and Yixing City with convenient transportation access.
