Decanter Centrifuge
Created with Pixso. Scroll Discharge Decanter Centrifuge Stainless Steel Sludge Dewatering 20m3/H

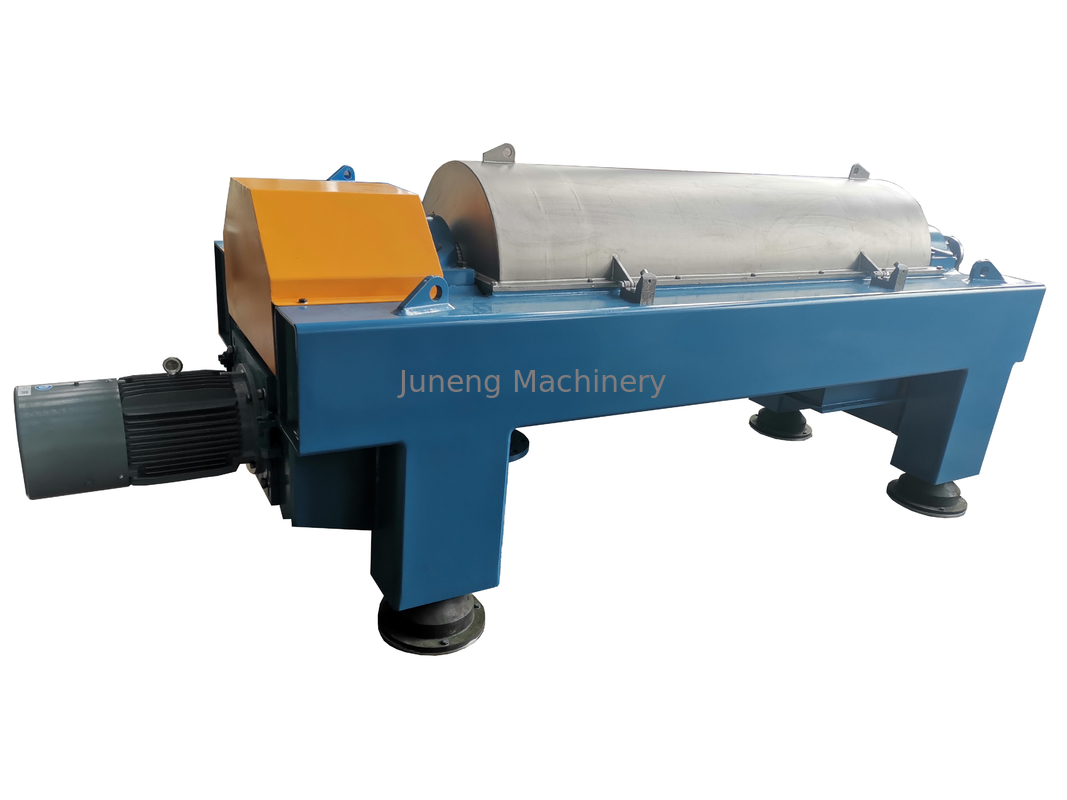

Scroll Discharge Decanter Centrifuge Stainless Steel Sludge Dewatering 20m3/H

Brand Name: Juneng
Model Number: LW450
MOQ: 1 set
Price: USD15000~100000/set
Delivery Time: 30-50 days
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
Jiangsu,China
Certification:
CE/ISO
Product Name:
Stainless Steel Sludge Dewatering Scroll Discharge Decanter Centrifuge
Drum Diameter(mm):
250
Inlet Liauid Capacity(m³/h):
5-20
Power Of Main/auxiliary Motor(kw):
30/11
Weight(kg):
3000
Dimension(L*W*H):
4380*1080*1360
Packaging Details:
seaworthy packing
Supply Ability:
20 sets/month
Highlight:

scroll discharge decanter centrifuge Stainless steel

,

Stainless steel sludge dewatering decanter centrifuge

,

20 m3/H decanter Discharge centrifuge

Product Description

Stainless steel sludge dewatering scroll discharge decanter centrifuge

Introduction

Decanter centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference.

The centrifuges which made by out factory can clarify, dehydrate and classify the suspensions with 0.002-3 mm solid-phase particles and thickness range at 0.5~40%.

Scroll Discharge Decanter Centrifuge Stainless Steel Sludge Dewatering 20m3/H 0

Product structure and operation principle

Scroll Discharge Decanter Centrifuge Stainless Steel Sludge Dewatering 20m3/H 1

Drum and spiral rotate at a certain different speed , the mixed liquid enters into spiral feed space continuously through feeding pipe and speed up into the drum . Under the effect of centrifugal force , solid - phase sedimentates on inner wall of drum and forms sediment layer . Sedimentated solid is pushed to the cone end of drum continuously by spiral pusher and dried at drying area and then discharged . Liquid phase forms inlayer liquid ring and overflows from drum through overflow port of big end , finally , the liquid phase is discharged from outlet port .

Main specification and technological parameters



Model
Drum diameter mm
Inlet liquid capacity㎥/h
Power of main/auxiliary motor Kw
Weight Kg
Dimension (max) mm
LW250
250
1-4
11/4
1200
2650*720*900
LW(F)250
250
1-4
11/4
1200
2650*720*900
LW250(W)
250
1~5
11/4
1300
2750*720*900
LW350
350
5~15
22/5.5
2000
3585*980*1238
LW(F)350
350
5~15
22/5.5
2000
3585*980*1238
LW350(W)
350
5~18
15/5.5
2200
3412*1090*950
LW(S)350
350
2~10
22/5.5
2000
3676*980*1238
LW450
450
5~20
30/11
3000
4380*1080*1360
LW(F)450
450
5~20
30/11
3000
4380*1080*1360
LW450(W)
450
5~28
30/11
3200
4380*1080*1360
LW(S)450
450
5~15
37/11
3200
4195*1080*1360
LW520
520
10~26
45/15
5000
4840*1160*1465
LW(F)520
520
10~26
45/15
5000
4840*1160*1465
LW520(W)
520
10~35
16742
5000
4840*1160*1465
LW550W
550
10-45
20394
6500
5038*1388*1578
LW650A
650
7-9T
110
8000
4407*2280*1340
LW650(W)
650
25-60
75/22
8000
5500*2280*1340
LW720A
720
8-10T
132/160
11000
4410*3280*1450
LW720(W)
720
35-85
110/30
13000
5600*3280*1450

*** F: Ex-proof, W:Waste water, S: Three phase FS: Ex-- proof and three phase





Track records

Scroll Discharge Decanter Centrifuge Stainless Steel Sludge Dewatering 20m3/H 2





Scroll Discharge Decanter Centrifuge Stainless Steel Sludge Dewatering 20m3/H 3

Main features

• All parts coming into contact with the product are made of stainless steel.

• 3-phase AC motor for controlled torque starting via frequency converter

• Approximately 80 to 90 % of the oil is recovered.

• Low personnel costs due to continuous and automatic operation.

• Highest g-force for higher solids output

• Adjustable bowl speed via VFD

• Automatic adjustment of differential speed via VFD

• Two motor drive

• Belts for both primary motor and secondary motor



Produce Process
Scroll Discharge Decanter Centrifuge Stainless Steel Sludge Dewatering 20m3/H 4
Scroll Discharge Decanter Centrifuge Stainless Steel Sludge Dewatering 20m3/H 5
Scroll Discharge Decanter Centrifuge Stainless Steel Sludge Dewatering 20m3/H 6

Separator process workshop



Drum processing



Process center



Scroll Discharge Decanter Centrifuge Stainless Steel Sludge Dewatering 20m3/H 7
Scroll Discharge Decanter Centrifuge Stainless Steel Sludge Dewatering 20m3/H 8
Scroll Discharge Decanter Centrifuge Stainless Steel Sludge Dewatering 20m3/H 9

Ultrasonic testing



Dynamic balancing test



Assembling

Application area

Scroll Discharge Decanter Centrifuge Stainless Steel Sludge Dewatering 20m3/H 10









Packing & Delivery

Scroll Discharge Decanter Centrifuge Stainless Steel Sludge Dewatering 20m3/H 11
Packaging
Transport
Ocean shipping sea transportation transport by sea
Container
20'GP, 40'HC or Shipping LCL



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
