Horizontal screw centrifuge for sewage treatment centrifugal dewatering system

Place of Origin Jiangsu,China
Brand Name Juneng
Certification CE/ISO
Model Number LW
Minimum Order Quantity 1 set
Price USD15000~100000/set
Packaging Details seaworthy packing
Delivery Time 30-50 days
Payment Terms L/C, T/T
Supply Ability 20 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Horizontal Screw Centrifuge For Sewage Treatment Centrifugal Dewatering System Type Centrifuge
Condition New Core Components PLC,Motor, Pressure Vessel, Bearing
Voltage Design For Different Country Power According To The Model
Weight According To The Model Dimension(L*W*H) Depend On Model Choosing
Drum Diameter Depend On Model Choosing
Leave a Message
Product Description

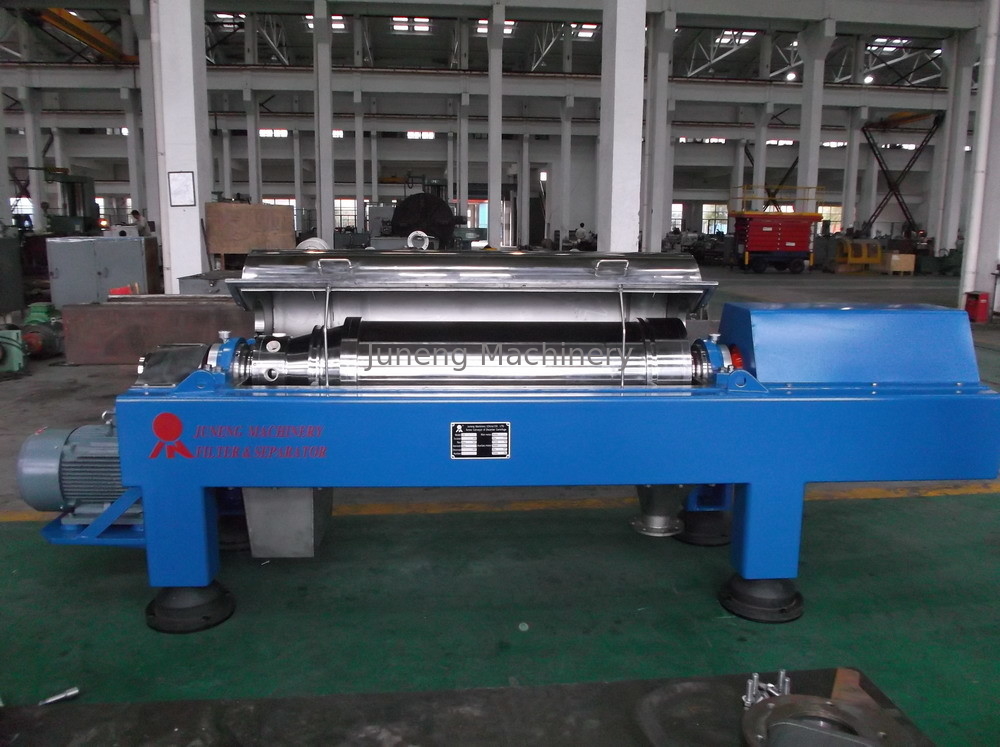

Horizontal screw centrifuge for sewage treatment centrifugal dewatering system

Introduction

The centrifuge is a countercurrent horizontal scoll discharge centrifuge used for sludge dewatering. The main engine consists of a drum (stainless steel 2205), a screw (stainless steel 2205+316L), and a differential system. The differential speed is automatically adjusted based on load changes, and the pushing power is automatically compensated to ensure a constant dryness of the solid slag, resulting in a drier solid slag.

Horizontal screw centrifuge for sewage treatment centrifugal dewatering system 0

Operation principle

The separation principle of centrifuge: The suspension enters the drum through the feed pipe and spiral discharge port. Under the centrifugal force generated by high-speed rotation, solid particles with higher specific gravity deposit on the inner wall of the drum. The spiral blades that move relative to the drum continuously scrape the solid particles deposited on the inner wall of the drum and push them out of the slag discharge port. The separated clear liquid flows out of the drum through the opening of the liquid layer adjustment plate. The relative motion between the screw and the drum, that is, the differential speed, is achieved through the differential, and its size is controlled by the auxiliary motor.



Horizontal screw centrifuge for sewage treatment centrifugal dewatering system 1



Structure

Adopting a large end feeding design to ensure sufficient retention time for the separated dry sludge, that is, the feeding pipe extends from the straight section of the drum to the middle feeding port. An adjustable weir plate is installed at the large end of the drum to adjust the liquid layer depth inside the drum and ensure the separation effect. The machine has excellent sealing performance to ensure that sludge and sewage do not spill out of the machine and pollute the environment

Horizontal screw centrifuge for sewage treatment centrifugal dewatering system 2

Technological parameters



Model
Drum diameter mm
Inlet liquid capacity㎥/h
Power of main/auxiliary motor Kw
Weight Kg
Dimension (max) mm
LW250
250
1-4
11/4
1200
2650*720*900
LW(F)250
250
1-4
11/4
1200
2650*720*900
LW250(W)
250
1~5
11/4
1300
2750*720*900
LW350
350
5~15
22/5.5
2000
3585*980*1238
LW(F)350
350
5~15
22/5.5
2000
3585*980*1238
LW350(W)
350
5~18
15/5.5
2200
3412*1090*950
LW(S)350
350
2~10
22/5.5
2000
3676*980*1238
LW450
450
5~20
30/11
3000
4380*1080*1360
LW(F)450
450
5~20
30/11
3000
4380*1080*1360
LW450(W)
450
5~28
30/11
3200
4380*1080*1360
LW(S)450
450
5~15
37/11
3200
4195*1080*1360
LW520
520
10~26
45/15
5000
4840*1160*1465
LW(F)520
520
10~26
45/15
5000
4840*1160*1465
LW520(W)
520
10~35
16742
5000
4840*1160*1465
LW550W
550
10-45
20394
6500
5038*1388*1578
LW650A
650
7-9T
110
8000
4407*2280*1340
LW650(W)
650
25-60
75/22
8000
5500*2280*1340
LW720A
720
8-10T
132/160
11000
4410*3280*1450
LW720(W)
720
35-85
110/30
13000
5600*3280*1450

*** F: Ex-proof, W:Waste water, S: Three phase FS: Ex-- proof and three phase



Produce Process
Horizontal screw centrifuge for sewage treatment centrifugal dewatering system 3
Horizontal screw centrifuge for sewage treatment centrifugal dewatering system 4
Horizontal screw centrifuge for sewage treatment centrifugal dewatering system 5

Separator process workshop



Drum processing



Process center



Horizontal screw centrifuge for sewage treatment centrifugal dewatering system 6
Horizontal screw centrifuge for sewage treatment centrifugal dewatering system 7
Horizontal screw centrifuge for sewage treatment centrifugal dewatering system 8

Ultrasonic testing



Dynamic balancing test



Assembling

Packing & Delivery

Horizontal screw centrifuge for sewage treatment centrifugal dewatering system 9
Packaging
Transport
Ocean shipping sea transportation transport by sea
Container
20'GP, 40'HC or Shipping LCL



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
