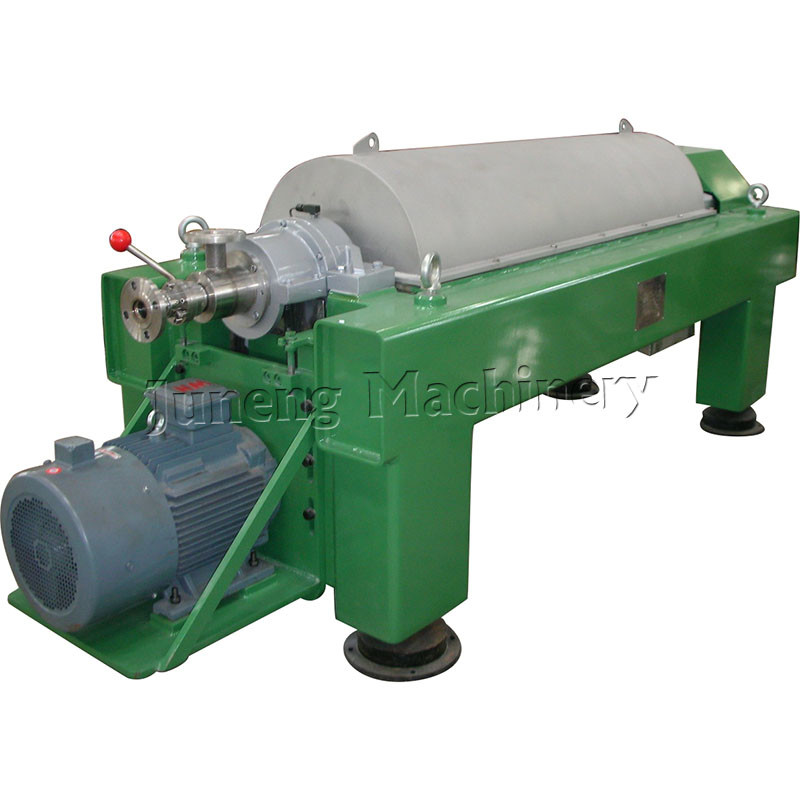

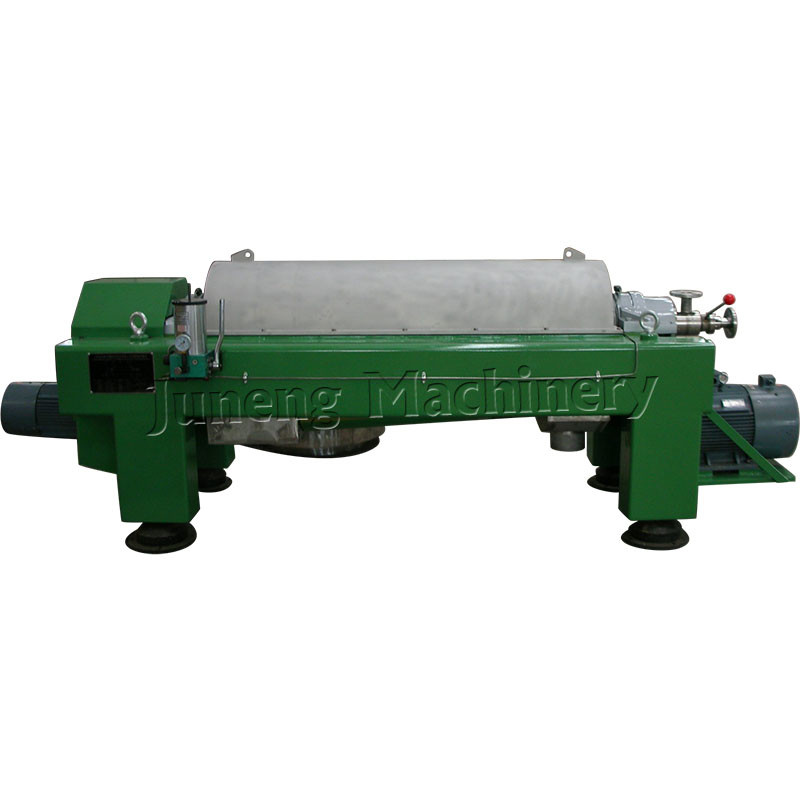

High Speed Rotation Decanter Centrifuge Machine LW350 Screw Conveyor

  • High Speed Rotation Decanter Centrifuge Machine LW350 Screw Conveyor
  • High Speed Rotation Decanter Centrifuge Machine LW350 Screw Conveyor
Place of Origin Jiangsu,China
Brand Name Juneng
Certification ISO/CE
Model Number LW350W
Minimum Order Quantity 1 set
Price USD35000-150000/set
Packaging Details seaworthy packing
Delivery Time 40 work days
Payment Terms L/C, T/T
Supply Ability 30 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name High-speed Rotation Machine LW350 Screw Conveyor Of Decanter Centrifuge Big End Of Drum Diameter 350㎜
Drum Length 1550㎜ Motor Power 22KW+5.5KW
Weight (about)2000kg Outline Dimension 3585×980×1238 Mm（L×W×H)
Highlight

High Speed Rotation Decanter Centrifuge Machine

,

Screw Conveyor of Decanter Centrifuge

,

LW350 Decanter Centrifuge Machine
Leave a Message
Product Description

High-speed rotation machine LW350 Screw Conveyor of Decanter Centrifuge



Description

Centrifugal sedimentation is the working principle of this centrifuge, it can separate two phases (suspended solid liquid and liquid), and three phases (solid-liquid-liquid), solid phase is pushed out by spiral continually; this equipment is a constant and high effective equipment which used in separating solid-liquid.

It has a good applicability for many material and can be widely used in chemical industry, light industry, food, paper, mining and other industrial sectors. It applies to carry out separating liquid and solid of the suspensions material which weight thickness of solid phase ≤ 10% (or volume concentration of ≤ 50% after settlement24 hours) and equivalent diameter of solid-phase particle ≥ 0.005 ~ 2 mm, liquid-solid density difference ≥ 0.05 g / cm 3, such as calcium carbonate, calcium sulfate, polyvinyl chloride, lees, bean dregs , soy protein, paper pulp, vegetable oil and palm oil, kaolin, white mud, sludge from environmental protection industry and also applies to various types of chemical products which use settlement centrifugal separation principle, these material all can be carried out effectively.

High Speed Rotation Decanter Centrifuge Machine LW350 Screw Conveyor 0

                                                                       Two phase







Main technological parameters



Model
Drum diameter mm
Inlet liquid capacity㎥/h
Power of main/auxiliary motor Kw
Weight Kg
LW250
250
1-4
11/4
1200
LW(F)250
250
1-4
11/4
1200
LW250(W)
250
1~5
11/4
1300
LW350
350
5~15
22/5.5
2000
LW(F)350
350
5~15
22/5.5
2000
LW350(W)
350
5~18
15/5.5
2200
LW(S)350
350
2~10
22/5.5
2000
LW450
450
5~20
30/11
3000
LW(F)450
450
5~20
30/11
3000
LW450(W)
450
5~28
30/11
3200
LW(S)450
450
5~15
37/11
3200
LW520
520
10~26
45/15
5000
LW(F)520
520
10~26
45/15
5000
LW520(W)
520
10~35
16742
5000
LW550W
550
10-45
20394
6500
LW650A
650
7-9T
110
8000
LW650(W)
650
25-60
75/22
8000
LW720C
720
25-50
110/22
12000
LW720(W)
720
35-85
110/30
13000






Working principle

High Speed Rotation Decanter Centrifuge Machine LW350 Screw Conveyor 1



Centrifuge is consist of two rotors, one is drum the other is screw conveyor ( For short spiral). Drum running with High-speed, the drum and slurry will rotate together and by the centrifugal force effect, this centrifugal force is larger than the weight many times, so that solid particles will be separated from the liquid, from the drum axis, then setting on the drum wall, the screw conveyor which located in the drum and rotating at the speed which lower than the speed of drum then push the solid particles to the residue discharge port. Difference speed between outside drum and screw conveyor depends on the speed of the transmission ratio of differential and its rotation speed.



Product process

High Speed Rotation Decanter Centrifuge Machine LW350 Screw Conveyor 2
High Speed Rotation Decanter Centrifuge Machine LW350 Screw Conveyor 3
High Speed Rotation Decanter Centrifuge Machine LW350 Screw Conveyor 4

Separator process workshop



Drum processing



Process center



High Speed Rotation Decanter Centrifuge Machine LW350 Screw Conveyor 5
High Speed Rotation Decanter Centrifuge Machine LW350 Screw Conveyor 6
High Speed Rotation Decanter Centrifuge Machine LW350 Screw Conveyor 7

Ultrasonic testing



Dynamic balancing test



Assembling



Advantages

1) Lower cake transportation costs due to very dry solids
2) Better recovery of nutrients due to very high separation efficiency
3) Lower fresh water consumption compared to other processes
4) Continuous and fully automatic operation
5) 24 h operating reliability
6) Optimum wear protection
7) Energy saving design
8) Easy to operate
9) Easy to maintain
10) Simple assembly/dismantling
