Classification Horizontal Spiral Settling Centrifuge Three Phase For Waste Leachate
| Place of Origin | Jiangsu,China |
|---|---|
| Brand Name | Juneng |
| Certification | CE/ISO |
| Model Number | LWS520 |
| Minimum Order Quantity | 1 set |
| Price | USD15000~100000/set |
| Packaging Details | seaworthy packing |
| Delivery Time | 60days |
| Payment Terms | L/C, T/T |
| Supply Ability | 30 sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Three-Phase Classification Horizontal Spiral Settling Centrifuge For Kitchen Waste Leachate | Big End Of Drum Diameter | 520㎜ |
|---|---|---|---|
| Drum Length | 2080㎜ | Drum Max. Speed | 3000r/min |
| Max. Separation Equation | About 2620 | Motor Power | 55KW+15KW |
| Weight | About 5000kg | Outline Dimension | 4882×1407×1000mm(L×W×H） |
| High Light | Horizontal spiral settling centrifuge,Three Phase Horizontal spiral centrifuge,Classification Horizontal spiral settling centrifuge |
||
Product Description

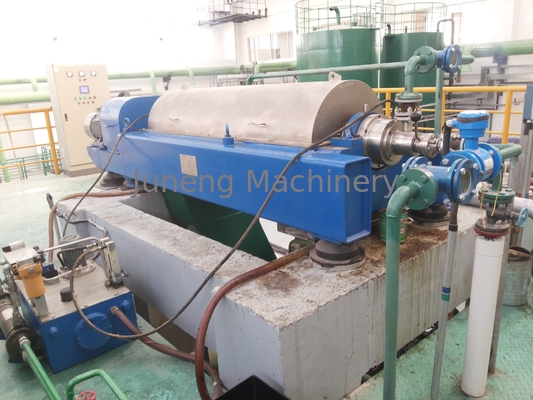

Three-Phase Classification Horizontal spiral settling centrifuge For Kitchen Waste Leachate
Introduction
Centrifugal sedimentation is the working principle of this centrifuge, it can separate two phases (suspended solid liquid and liquid) or three phases (solid-liquid-liquid), solid phase is pushed out by spiral continually; this equipment is a constant and high effective equipment which used in separating solid-liquid.
This centrifuge can achieve to product continually, large production capacity, small energy consumption, highly automated, and particularly apply to line work of the industrial.
Working principle
Centrifuge is consist of two rotors, one is drum the other is screw conveyor ( For short spiral). Drum running with High-speed, the drum and slurry will rotate together and by the centrifugal force effect, this centrifugal force is larger than the weight many times, so that solid particles will be separated from the liquid, from the drum axis, then setting on the drum wall, the screw conveyor which located in the drum and rotating at the speed which lower than the speed of drum then push the solid particles to the residue discharge port. Difference speed between outside drum and screw conveyor depends on the speed of the transmission ratio of differential and its rotation speed. The two phases with different densities form concentric cylinders, with the lighter liquid in the inner layer and the heavier liquid in the outer layer and discharged through the outlet of the light and heavy phases respectively.
Main specification and technological parameters
|
3676*980*1238 |
|||||
|
4195*1080*1360 |
|||||
|
4840*1160*1465 |
Advantages
- All parts coming into contact with the product are made of stainless steel.
- 3-phase AC motor for controlled torque starting via frequency converter
- Approximately 80 to 90 % of the oil is recovered.
- Low personnel costs due to continuous and automatic operation.
- Highest g-force for higher solids output
- Adjustable bowl speed via VFD
- Automatic adjustment of differential speed via VFD
- Two motor drive
- Belts for both primary motor and secondary motor
Application area
Produce Process
Separator process workshop
Drum processing
Process center
Ultrasonic testing
Dynamic balancing test
Assembling
Track records
Our company
Juneng Machinery (China)Co., Ltd., established in 2006, is a professional manufacturer engaged in the research, development, production, sale and service of Filter, Separator, Decanter centrifuge and pump. We have four factories which located in Nanjing and Yixing City with convenient transportation access.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including Filter, Separator, Decanter centrifuge and pump.
In addition, we have obtained CE certificates, ASME U certificate and ISO 9001 certificate. And Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as USA,German, Korea,Japan, Pakistan, Malaysia, Singapore, Vietnam and so on.
We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements
