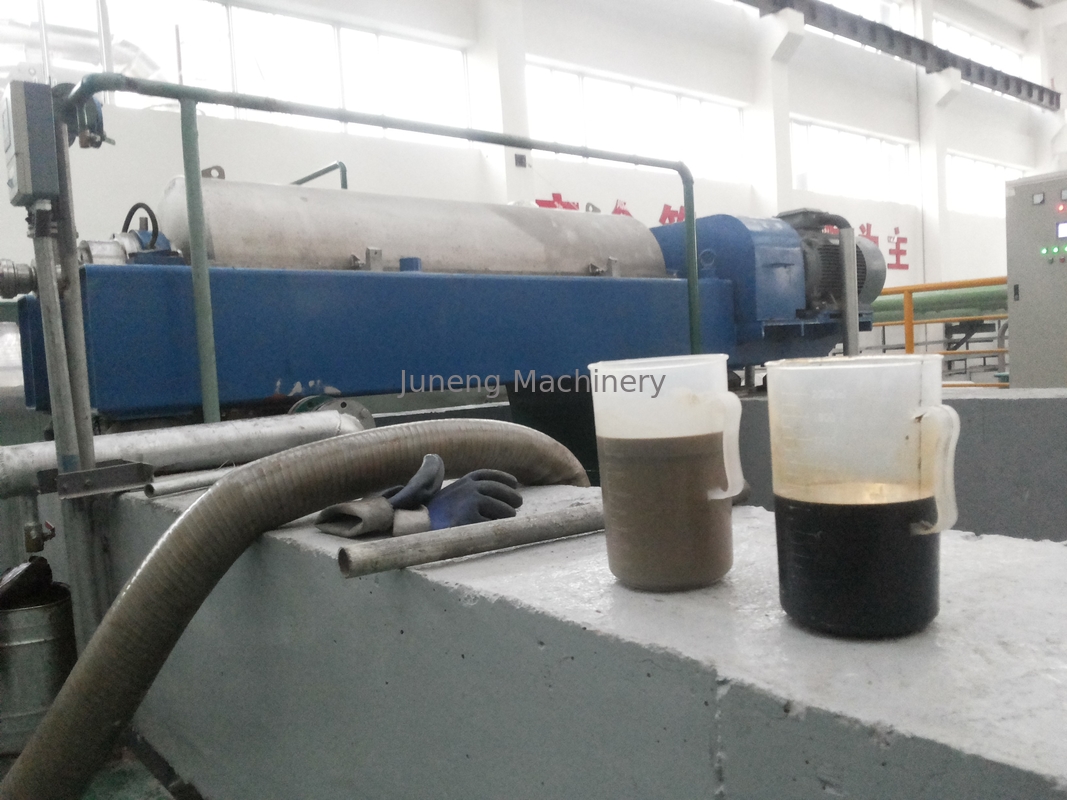

Classification Horizontal Spiral Settling Centrifuge Three Phase For Waste Leachate

Three-Phase Classification Horizontal spiral settling centrifuge For Kitchen Waste Leachate

Introduction

Centrifugal sedimentation is the working principle of this centrifuge, it can separate two phases (suspended solid liquid and liquid) or three phases (solid-liquid-liquid), solid phase is pushed out by spiral continually; this equipment is a constant and high effective equipment which used in separating solid-liquid.

This centrifuge can achieve to product continually, large production capacity, small energy consumption, highly automated, and particularly apply to line work of the industrial.

Working principle



Centrifuge is consist of two rotors, one is drum the other is screw conveyor ( For short spiral). Drum running with High-speed, the drum and slurry will rotate together and by the centrifugal force effect, this centrifugal force is larger than the weight many times, so that solid particles will be separated from the liquid, from the drum axis, then setting on the drum wall, the screw conveyor which located in the drum and rotating at the speed which lower than the speed of drum then push the solid particles to the residue discharge port. Difference speed between outside drum and screw conveyor depends on the speed of the transmission ratio of differential and its rotation speed. The two phases with different densities form concentric cylinders, with the lighter liquid in the inner layer and the heavier liquid in the outer layer and discharged through the outlet of the light and heavy phases respectively.

Advantages

• All parts coming into contact with the product are made of stainless steel.
• 3-phase AC motor for controlled torque starting via frequency converter
• Approximately 80 to 90 % of the oil is recovered.
• Low personnel costs due to continuous and automatic operation.
• Highest g-force for higher solids output
• Adjustable bowl speed via VFD
• Automatic adjustment of differential speed via VFD
• Two motor drive
• Belts for both primary motor and secondary motor

Application area

Separator process workshop



Drum processing



Process center



Ultrasonic testing



Dynamic balancing test



Assembling
