250mm Horizontal Decanter Centrifuge Stainless Steel Sludge Dewatering
| Place of Origin | Jiangsu,China |
|---|---|
| Brand Name | Juneng |
| Certification | CE/ISO |
| Model Number | LW450 |
| Minimum Order Quantity | 1 set |
| Price | USD15000~100000/set |
| Packaging Details | seaworthy packing |
| Delivery Time | 50 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20 sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Stainless Steel Sludge Dewatering Horizontal Decanter Centrifuge | Drum Diameter（mm） | 250 |
|---|---|---|---|
| Inlet Liauid Capacity(m³/h） | 5-20 | Power Of Main/auxiliary Motor(kw) | 30/11 |
| Weight(kg) | 3000 | Dimension(L*W*H) | 4380*1080*1360 |
| High Light | horizontal decanter centrifuge 250mm,decanter Sludge Dewatering centrifuge,Stainless decanter Sludge Dewatering centrifuge |
||
Product Description

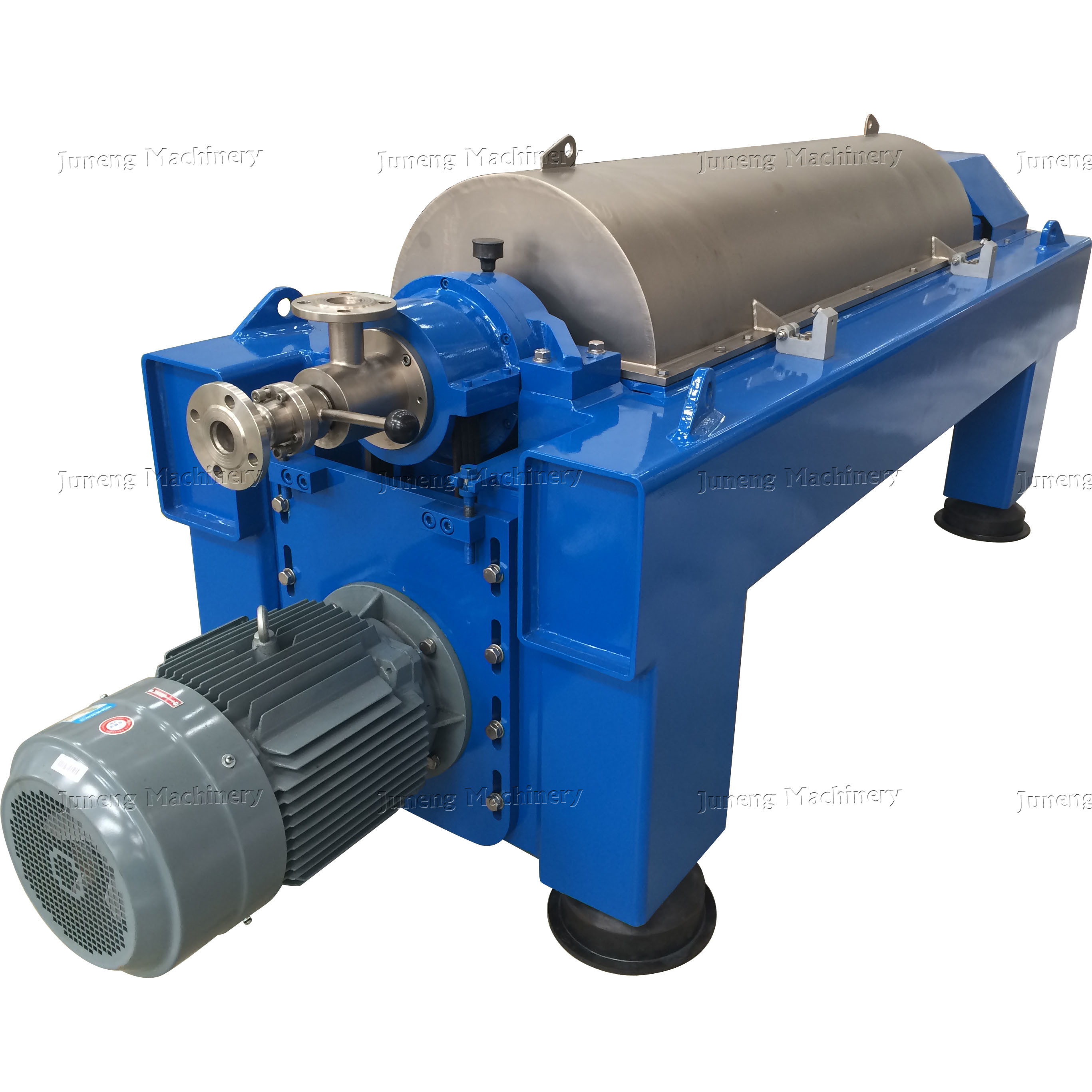

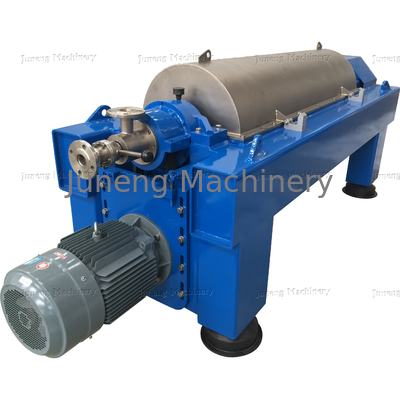

Stainless steel sludge dewatering horizontal decanter centrifuge
Introduction
Decanter centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference.
The centrifuges which made by out factory can clarify, dehydrate and classify the suspensions with 0.002-3 mm solid-phase particles and thickness range at 0.5~40%. The product can be classify into two type LW-counter-current and parallel-current base on its structure feature.
The centrifuges which made by out factory can clarify, dehydrate and classify the suspensions with 0.002-3 mm solid-phase particles and thickness range at 0.5~40%. The product can be classify into two type LW-counter-current and parallel-current base on its structure feature.
Product structure and operation principle
Drum and spiral rotate at a certain different speed , the mixed liquid enters into spiral feed space continuously through feeding pipe and speed up into the drum . Under the effect of centrifugal force , solid - phase sedimentates on inner wall of drum and forms sediment layer . Sedimentated solid is pushed to the cone end of drum continuously by spiral pusher and dried at drying area and then discharged . Liquid phase forms inlayer liquid ring and overflows from drum through overflow port of big end , finally , the liquid phase is discharged from outlet port .
Main specification and technological parameters
Track records
Application
1. Washing and dehydration of starch
2.Dehydration of soybean wheat proteins
3.Dehydration of fish meal and fish
4.Dehydration of brewers' grains
5.Purification of juice and dehydration of fruit fiber
6.Separation and purification of animal and vegetable oil
7.Separation and purification of coal tar
8.Clarification and purification of gypsum
9.Classification and dehydration of starch
10.Classification and dehydration of Kaolin and graphic
11.Classification and dehydration of dyes and pigments
12.Classification and dehydration of mineral thick liquid
Produce Process
Separator process workshop
Drum processing
Process center
Ultrasonic testing
Dynamic balancing test
Assembling
Juneng Group
Juneng Machinery (China) Co., Ltd in Nanjing
We are devoted to centrifuges and dryers, which could used in various industries, such as environmantel protection, food industry, chemical industry and pharmaceutic industry etc.
Our company has a professional design team of horizontal separators, which are researched and manufactured by professionals from the analysis of urban sewage materials, kitchen waste and gutter oil to the design, control and automation of machines.
Our team
Metallographic analysis
Dynamic balance detection
