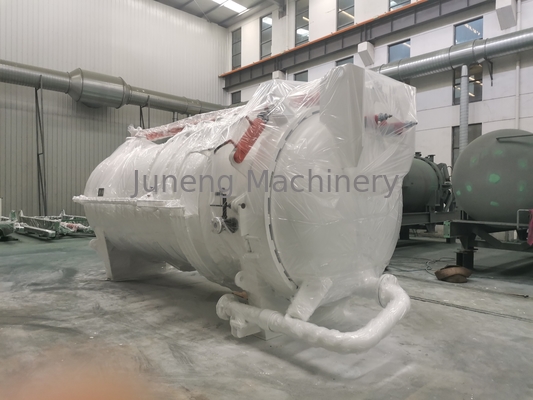

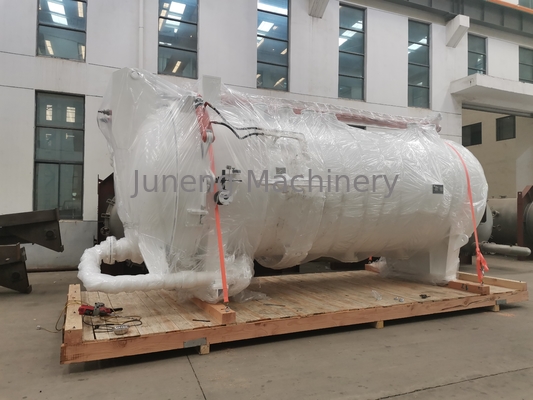

50HZ 380V Horizontal Leaf Filter Crude Oil Efficient Solid-Liquid Separation Equipment

Horizontal Leaf Filter Crude Oil efficient, energy saving solid-liquid separation equipment

Production Description

This product is of novel design, the main body of filter consists of filtration tank, screen, end-plate pullout device, automatic dreg discharging device, etc. During filtering, the filter aid is mixed up with material in the mixing cylinder then transmitted by pump onto the filter screen to form a filter cake layer. Once the stable filter cake is realized, the minute filter aid particles provide countless micro passages, which entrap the suspended impurity and let the clear liquid through. Therefore the real filtration is realized through the cake layer. In case that the filter cake over the surface of filter screen reaches certain thickness, or the filtration pressure is up to 0.4 MPa, the feeding shall be stopped, and compressed air or steam shall be employed to blow dry the cake, and then pull out the filter screen, the vibration dreg discharging device shall be switched on, the dregs shall be unloaded because of weight and vibration. As to sticky filter cake, manual help shall be provided to clean up the dregs.

Working principle

This product is of novel design, the main body of filter consists of filtration tank, screen, end-plate pullout device, automatic dreg discharging device, etc.

During filtering, the filter aid is mixed up with material in the mixing cylinder then transmitted by pump onto the filter screen to form a filter cake layer.

Once the stable filter cake is realized, the feeding shall be stopped, and compressed air or steam shall be employed to blow dry the cake, then discharge the filtration cake .

Filter Plates

The filter screen plate is the major component for the filter. It consists of multiple layers of stainless steel screens of different specification. In the middle there is a passage for the filtrate, at the outside there is frame. At the lower part of screen plate there is a nozzle for the discharge port which is inserted into the collection pipe, in between the nozzle and socket of collection pipe there is rubber “O” ring for sealing.

Horizontal Pressure Leaf filter Advantage

1. Filtration area range 5 to 500 Square meter

2. Ideal for high polish applications, 0.1 Micron removal

3. Dry and/ or wet solids discharge .

4. Automated closed system

5. Jackets available- steam/Water/Cooler

6. Control options-semi automatic or fully automatic.

Filter model list

Area Series (m²) : WYB 5,10,15,20,25,30,35,40,45,50,60,70,80,90,100,120,140,160,180,200

Shell Diameter Series (mm) : 900,1200, 1400, 1500, 1600,1700,1800,2000

Work Pressure (Mpa):0.4 Mpa

Work Temperature (℃): 150℃

Promimate Treatment for oil : 0.5 T/H.M²

Main use and Application of Pressure leaf filter :

1.  Filtration of pressed crude oil and remove mechanical impurities ;

2. Filtration of decolored oil and grease with carclazyte ;

3. Dewaxing filtration of oil and grease .

Company profile

Our company has a professional design team of horizontal separators, which are researched and manufactured by professionals from the analysis of urban sewage materials, kitchen waste and gutter oil to the design, control and automation of machines.
