DPF800 Starch Disc Separator With Upper Belt Transmission Structure 120 M3/H
| Place of Origin | China(Yixing, Jiangsu) |
|---|---|
| Brand Name | Juneng |
| Certification | CE、ISO9001 |
| Model Number | DPF800 |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Standard Wooden Case |
| Delivery Time | 60 days |
| Payment Terms | TT, L/C |
| Supply Ability | 20 set / months |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | DPF800 Starch Disc Separator With The Upper Belt Transmission Structure | Disk Quantity | 120～160 Pieces |
|---|---|---|---|
| Nozzle Quantity | 20 Pieces | Nozzle Diameter | 1.8 ～ 3.4 Mm |
| Treatment Capacity | 70-120 M3/h | Function | Starch Protein |
| Out-dimension | 2.8×1.5×2.2m | Main Equipment Weight | 5500kg |
| High Light | DPF 800 Starch disc separator,Starch disc Centrifugal separator,120 m3/h Starch disc Centrifugal separator |
||
Product Description

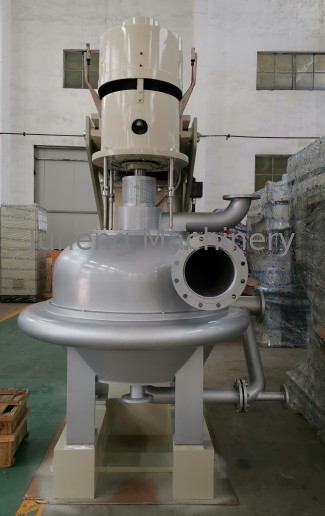

DPF800 Starch disc separator with the upper belt transmission structure
Description:
DPF800 disk separator is the main equipment used in the big starch process industry.
DPF800 disc separator with the upper belt transmission structure, and adopt the upper suspended supporting type for the main shaft, using nozzle discharge. So it is benefits significantly higher than other structures of the starch separators.
Technical data:
| Model | Treatment capacity(T/H) | Speed of drum | Motor power(kw) | Weight(kg) | Outline size(L*W*H)mm |
| DPF445 | 20-35 | 4500-5200 | 30 | 1400 | 1284*1407*1457 |
| DPF520 | 25-45 | 4650 | 37 | 1550 | 1617*1240*1465 |
| DPF630 | 30-60 | 2850-4800 | 75/55 | 3500 | 2000*1000*2050 |
| DPF800 | 22-115 | 2750-3300 | 132/110 | 7800 | 2800*1500*2200 |
| DPF935 | 45-225 | 2250-3050 | 250/220 | 11000 | 3200*1800*3100 |
| DPF960 | 45-250 | 2250-3000 | 250/220 | 11500 | 3200*1800*3100 |
| DPF1000 | 45-300 | 2250-2950 | 300/220 | 12000 | 3200*1800*3100 |
| DPF1170 | 50-500 | 2200-2800 | 315/250 | 15000 | 3500*2000*3300 |
Performance and Application:
DPF series disc separator applys to :1,Corn startch and gluten separation; 2,Concentration of gluten;
3,Pre-concentration of starch milk; 4,Clarify; also suitable for other similar product’s separation.
Product competitive advantage:
1, Big diameter of drum, large area of disk, strong capability of production(separation), excellent effect of separation.
2, Adopting top-suspension driving, which makes the separator with high rotation stability, largely improves the using life of bearings and main shaft.
3, Adopting automatic control of lubricating oil circuit, which protects and prolongs the using life of driving system.
4, Adopting big nozzles , which has big feed capacity, reduces the chances of block, assuring the continuous production.
5, Fitted with hydraulic system for lifting drum, which makes more easily to check the drum and replace nozzles.
6, Operating easily, the workers can master the operation regulation in short.
Configuration:
The separator mainly consists of base, cantalever, hydraulic oil cylinder, motor ram, main axis suspension device, drum, upper volute and lower volute, etc.
History:
Juneng Group was established at 1987. It has 23 year history. Now its three production bases with a total capacity of 280000 square meters in Nanjing City and Yixing City of Jiangsu Province.
Juneng’s success is contributed by the commitment of every member of the Company. In addition, the specialty and potential of each member is being respected and disinterred.
Test & Inspection
1. Material Test Report
2. Magnetic Particle Examination
3. Nondestructive Examination
4. Liquid Penetrant Examination
5. Dynamic Balancing Test
6. Radiographic Examination
Company Profie
Juneng Group is a large scale manufacturer of industrial products in China. This group principally engaged with the in-house research & development as well as manufacturing of various industrial filters, separators , centrifuges and pumps.
The Company now has its three production bases with a total capacity of 280,000 square meters in Nanjing city and Yixing City ,permanent workforces not less than 1100 people and the production line is well equipped with more than 2000 inits of advanced production equipment and test Instrumentation.
