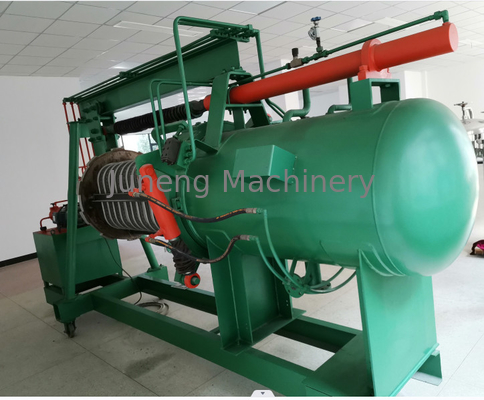

Oil Bleaching Horizontal Leaf Filter Carbon Steel Vessel 150 M2

 Oil Bleaching Horizontal Leaf Filter Carbon Steel Vessel

Production Description

Thank you very much for choosing WYB series horizontal leaf filter manufactured by our company. This equipment is an efficient, energy saving solid-liquid separation equipment of enclosed operation type. It is widely employed in industries such as chemical engineering, petroleum, foodstuff and pharmaceutical, etc

The filtration system consists of mixing tank, main machine of the filter, liquid transmission pump, piping, valves, electrical control cabinet, operation workbench, etc. in general.

This product realizes filter without the filter paper and cloth , and the filtration is enclosed prevent environmental pollution, the labor intensity is low thanks to automatic dreg removal. Two units work alternatively can realize continuous production.

Filter model list

Area Series (m²) : WYB 5,10,15,20,25,30,35,40,45,50,60,70,80,90,100,120,140,160,180,200

Shell Diameter Series (mm) : 900,1200, 1400, 1500, 1600,1700,1800,2000

Work Pressure (Mpa):0.4 Mpa

Work Temperature (℃): 150℃

Promimate Treatment for oil : 0.5 T/H.M²

Working principle

This product is of novel design, the main body of filter consists of filtration tank, screen, end-plate pullout device, automatic dreg discharging device, etc. During filtering, the filter aid is mixed up with material in the mixing cylinder then transmitted by pump onto the filter screen to form a filter cake layer.

Once the stable filter cake is realized, the feeding shall be stopped, and compressed air or steam shall be employed to blow dry the cake, then discharge the filtration cake .

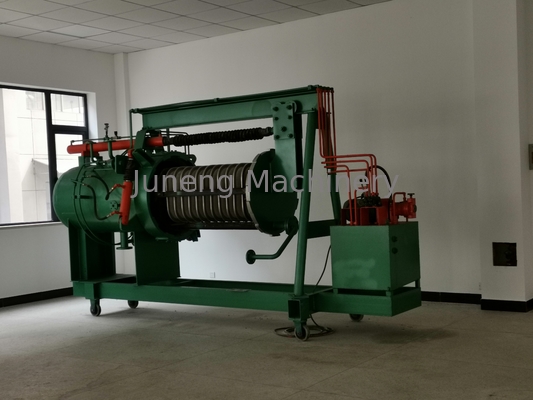

Filter Plates

The filter screen plate is the major component for the filter. It consists of multiple layers of stainless steel screens of different specification. In the middle there is a passage for the filtrate, at the outside there is frame.

At the lower part of screen plate there is a nozzle for the discharge port which is inserted into the collection pipe, in between the nozzle and socket of collection pipe there is rubber “O” ring for sealing.

Horizontal Pressure Leaf filter Advantage

1. Filtration area range 5 to 500 Square meter

2. Ideal for high polish applications, 0.1 Micron removal

3. Dry and/ or wet solids discharge .

4. Automated closed system

5. Jackets available- steam/Water/Cooler

6. Control options-semi automatic or fully automatic.

Main use and Application of Pressure leaf filter :

1.  Filtration of pressed crude oil and remove mechanical impurities ;
2. Filtration of decolored oil and grease with carclazyte ;
3. Dewaxing filtration of oil and grease .


Packing

Plastic film package inside, wooden case  package outside

Company detail

Juneng Group is a large scale manufacturer of industrial products in China. This group principally engaged with the in-house research & development as well as manufacturing of various industrial filters, separators , centrifuges and pumps.

This group principally engaged with the in-house research & development as well as manufacturing of various industrial filters, separators , centrifuges and pumps.

The Company is proud to be the leader in such industry with approximately 90% domestic market share in Oils & Fats industry, Chemical industry, Pharmaceutical industry, Beverage industry, Petrol-chemical industry, and now is one of the well-known producers and suppliers in World .

The Company now has its three production bases with a total capacity of 280,000 square meters in Nanjing city and Yixing City , permanent workforces not less than 1500 people and the production line is well equipped with more than 2000 inits of advanced production equipment and test Instrumentation .
