Horizontal Spiral Discharge Sedimentation Centrifuge Two Phase Countercurrent
| Place of Origin | Jiangsu,China |
|---|---|
| Brand Name | Juneng |
| Certification | ISO/CE |
| Model Number | LW350W |
| Minimum Order Quantity | 1 set |
| Price | USD35000-150000/set |
| Packaging Details | seaworthy packing |
| Delivery Time | 50 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20 sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Two-phase Countercurrent Horizontal Spiral Discharge Sedimentation Centrifuge Can Sludge Concentration And Dehydration | Voltage | 380V |
|---|---|---|---|
| Power | 22000 | Weight | 2200kg |
| Dimension(L*W*H | 3412*1090*950 Mm | Drum Diameter | 350 Mm |
| High Light | Horizontal Spiral Discharge Sedimentation Centrifuge,Discharge Sedimentation Centrifuge Two Phase,Countercurrent Sedimentation Discharge Centrifuge |
||
Product Description
Two-phase countercurrent horizontal spiral discharge sedimentation centrifuge can sludge concentration and dehydration
Product Description

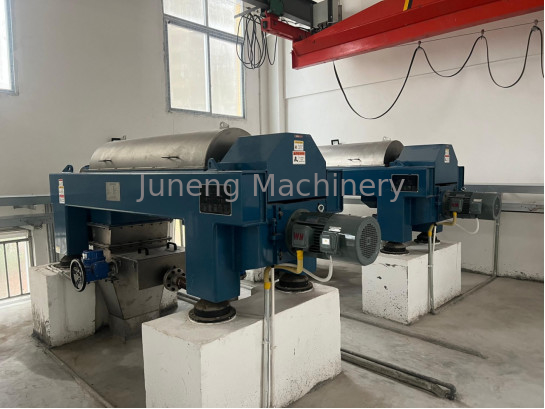

This machine is a countercurrent horizontal scroll discharge decanter centrifuge, used for sludge dewatering in water plants, and can adapt to the sludge characteristics of this water plant. The main machine is a countercurrent horizontal scroll discharge decanter centrifuge, which is a device that completes sludge concentration and dehydration simultaneously in one centrifuge.
Two phase
Main technological parameters
Product structure
The centrifuge is a countercurrent horizontal spiral discharge sedimentation centrifuge for sludge dewatering. The main engine is composed of drum (stainless steel 2205), screw (stainless steel 2205+316L) and differential system. The differential speed is automatically fed back and adjusted according to the load change, and the pushing power is automatically compensated to ensure the constant dryness of the solid slag and get a drier solid slag.
It is poured by an integral centrifuge, and then processed by precision turning after solution treatment. The solid phase slag discharge port is equipped with replaceable tungsten carbide wear-resistant bushing. The inner wall of the centrifuge drum is welded with anti-skid wear-resistant strips to prevent the solid particles from tangential rotation and wear on the inner wall of the drum.
Product process
Advantages.
1. Lower cake transportation costs due to very dry solids
2. Better recovery of nutrients due to very high separation efficiency
3. Lower fresh water consumption compared to other processes
4. Continuous and fully automatic operation
5. 24 h operating reliability
6. Optimum wear protection
7. Energy saving design
8. Easy to operate
9. Easy to maintain
10. Simple assembly/dismantling
Application
1. Washing and dehydration of starch
2.Dehydration of soybean wheat proteins
3.Dehydration of fish meal and fish
4.Dehydration of brewers' grains
5.Purification of juice and dehydration of fruit fiber
6.Separation and purification of animal and vegetable oil
7.Separation and purification of coal tar
8.Clarification and purification of gypsum
9.Classification and dehydration of starch
10.Classification and dehydration of Kaolin and graphic
11.Classification and dehydration of dyes and pigments
12.Classification and dehydration of mineral thick liquid
Company profile
Juneng Machinery (China) Co., Ltd in Nanjing
We are devoted to centrifuges and dryers, which could used in various industries, such as environmantel protection, food industry, chemical industry and pharmaceutic industry etc.
Our company has a professional design team of horizontal separators, which are researched and manufactured by professionals from the analysis of urban sewage materials, kitchen waste and gutter oil to the design, control and automation of machines.
Our team
Metallographic analysis
Dynamic balance detection
Recently years, we achieve plenty of honors and we have obtained various certifications
Packing&Delivery
