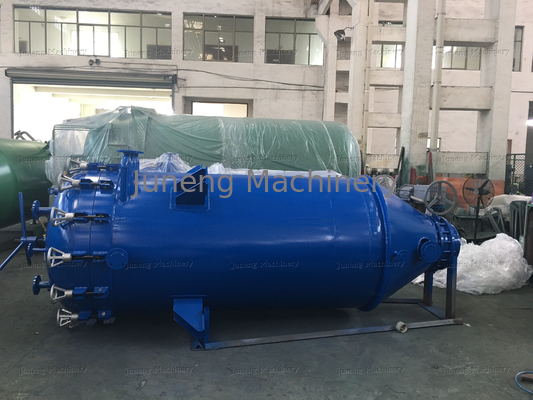

ZX Diatomaceous Earth Precision Filter With High Efficiency

Place of Origin Jiangsu,China
Brand Name Juneng
Certification ISO、CE、ASME U
Model Number ZX
Minimum Order Quantity 1 set
Price USD8000-20000/set
Packaging Details seaworthy packing
Delivery Time 50 work days
Payment Terms L/C, T/T
Supply Ability 40 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name ZX Filter Diatomaceous Earth Precision Filter With Small Size, High Efficiency, Low Filtration Cost Filter Solution Sulfuric Acid And Copper Sulfate Solution
Filter Precision; ≤1μm Filtration Efficiency ≥99%
Design Pressure ≤0.8Mpa Working Pressure ≤0.6Mpa
High Light

ZX Diatomaceous Earth Precision Filter


High Efficiency Precision Candle Filter Purification


Diatomaceous Precision Filter

Leave a Message
Product Description

ZX filter diatomaceous earth precision filter with small size, high efficiency, low filtration cost


Product description

The ZX filter (diatomaceous earth filter) is a precision filtration equipment designed by absorbing advanced technology from similar foreign products and combining it with the national conditions of our country. This equipment has a unique structure, small size, high efficiency, low filtration cost, fully enclosed operation within the entire system, convenient operation, and no environmental pollution. It has extensive applications in industries such as electrolytes, fruit juices, beverages, starch, fine chemicals, fats, biology, chemical fibers, pharmaceuticals, etc.

The characteristic of this filter is that the bottom slag discharge mechanism of the filter is a door type opening and closing slag discharge mechanism that is equivalent to the bottom slag discharge port of the filter. Overcoming the shortcomings of the original valve type slag discharge mechanism with small diameter and the inability to set bottom filter screens and insulation jackets. Not only does it have a large slag discharge area, smooth slag discharge without dead corners, no clogging of the slag discharge port, clean slag discharge, convenient cleaning, but it is also easy to operate and reliable, which can achieve efficient slag discharge of a self-cleaning filter

ZX Diatomaceous Earth Precision Filter With High Efficiency 0

Main technological parameters

ZX Diatomaceous Earth Precision Filter With High Efficiency 1
Filtration area
0.25~100 m2
0.4 MPa
Work temperature
Work temperature is related to the filter medium
Nominal filtration precision
1, 5, 10, 15, 25, 40, 50, 65, 75, 80, 100... um
Shell diameter series φ300 ,φ400, φ500, φ600 ,φ800 ,φ1000,φ1200 ,φ1400 ,φ1600 ,φ1800


Overview of filtration principle

The equipment has a unique structure, using a plum blossom shaped filter element as the skeleton and covered with a filter cloth. You can choose the corresponding filter cloth or add appropriate filter aids according to different materials, which can filter out various small particles in the liquid. During slag removal, compressed air or compressed nitrogen is injected into the middle of the filter element to blow back, causing the filter cloth to expand from a folded shape to a cylindrical shape, completely peeling off the filter cake on the surface of the filter cloth, thus completing the rapid slag removal process

ZX Diatomaceous Earth Precision Filter With High Efficiency 2



Filter structure

The filter is mainly composed of a filtering tank body, filter element, slag discharge mechanism, cover lifting mechanism, etc


a. Filter tank body

The filter tank is connected by the cylinder and the top cover with quick opening bolts to form a closed container. The flange between the top cover and the tank body is sealed with a rectangular rubber gasket, and the inside of the filter tank body is composed of a filter element and a liquid collection pipe.

ZX Diatomaceous Earth Precision Filter With High Efficiency 3

b. Filter element

The filter element is the main working component of the filter machine. The filter element is composed of an outer filter bag and an inner filter tube. The middle part is the filtrate flow channel, the lower part of the filter element is the filtrate collection chamber, and the upper part is the connection joint between the filter element and the collection pipe

ZX Diatomaceous Earth Precision Filter With High Efficiency 4


4.Our company


ZX Diatomaceous Earth Precision Filter With High Efficiency 5
Product Name
Juneng Machinery Factory
Juneng Machinery (China) Co.,Ltd(Nanjing)
Juneng Machinery (China) Co.,Ltd(Nanjing)


Our company has nearly 30 years of rich experience in the design, manufacture and use of various filters, which is beyond the reach of ordinary companies. At the same time, it is also a valuable intangible wealth of our company. As the first manufacturer of ZX type (also known as cluster or candle type) filter in China, we have a deeper understanding of the design, production and use of the equipment, and grasp each detail better and more mature.
