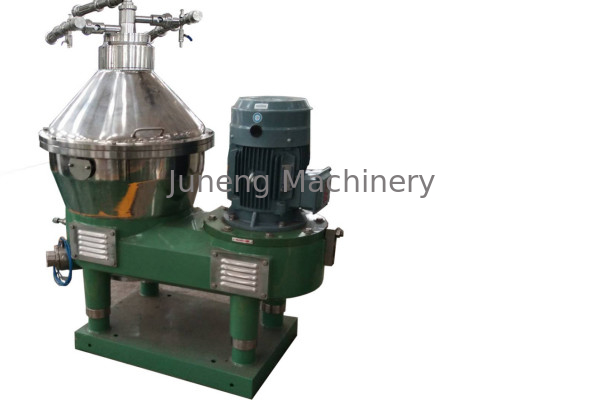

Three Phase Separation Disc Separator High Speed Rotating Precision 360mm

Place of Origin Jiangsu Yixing
Brand Name Juneng
Certification CE/ISO
Model Number DHNZ360
Minimum Order Quantity 1 SET
Price USD5000-15000/set
Packaging Details wooden case
Delivery Time 50 days
Payment Terms TT, L/C
Supply Ability 40 sets / months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Three Phase High-speed Rotating Precision Separation Disc Separator Maximum Inner Diameter Of Drum 360mm
Drum Speed 7500rpm Maximum Water Flux 5000L/h
Capacity 500-2000L/h (determined Based On The Actual Parameters Of On-site Materials) Motor Power 11KW
High Light

Three phase separation disc separator

,

High Speed Rotating separation disc separator

,

360mm disc Precision separator

Leave a Message
Product Description



Three phase high-speed rotating precision separation disc separator



Product description



DHNZ360 disc separator is a high-speed rotating precision separation equipment, with a conical disc bundle installed inside the drum. The separated non viscous liquid flows at high speed within such a small disc gap, achieving laminar flow and achieving good separation effect for materials with different specific gravity (liquid solid)

Three Phase Separation Disc Separator High Speed Rotating Precision 360mm 0



Working principle



The separated material is fed into the heart part of the machine, which is the inner part of the drum. Under strong centrifugal force, the material passes through a group of disc bundles for separation, with the neutral hole of the disc as the interface. The liquid with higher specific gravity moves outward along the disc wall towards the neutral hole, where heavy slag accumulates in the sediment area, and the heavy phase flows towards the centripetal pump; The liquid with a smaller specific gravity moves along the disc wall towards the neutral hole and converges to the lower centripetal pump. The light and heavy phases are output by the lower centripetal pump and the upper centripetal pump respectively; Heavy slag is regularly discharged; Implement continuous production

Three Phase Separation Disc Separator High Speed Rotating Precision 360mm 1



Technical parameter







DHNZ model is applied to milk degrease industry





Model

Capacity L/H

Inlet pressure

Outlet pressure

Weight

Dimension mm

DHNZ204

500-1000

0.05 Mpa

0.1-0.2 Mpa

520 kg

810*850*1350

DHNZ360

1000-3000

0.05 Mpa

0.1-0.2Mpa

1200 kg

1530*1150*1500

DHNZ470

3000-7000

0.05 Mpa

0.1-0.2 Mpa

1600 kg

1800*1200*2030

DHNZ550

5000-10000

0.05 Mpa

0.1-0.2Mpa

2300 kg

1950*1550*1960







Main Features




1. Aopts an outer ring valve type automatic slag discharge, and its slag discharge action is automatically controlled by PLC. It can implement regular and quantitative slag discharge according to the setting requirements without stopping feeding. It has a high degree of automation, strong adaptability to process adjustment, convenient adjustment, and can achieve satisfactory separation effect.

2. Both the upper and lower covers have flushing water connections, and the flushing water is controlled through an electromagnetic valve. The flushing time is set by the PLC.

3. The surface of the disc, the inner cone surface of the drum cover, and the inner cone surface of the large piston are polished with a polishing accuracy of Ra<0.4um. The outer surface of the equipment is treated with a matte finish, and all welds on the upper and lower machine covers are polished smooth with Ra<1.6um to prevent adhesion of slag phases.

4. The material inlet and outlet are in the form of flanges, equipped with stainless steel soft connections. There are mirrors on the inlet and outlet pipelines, and the light and heavy phase outlets are equipped with pressure gauges, manual pressure regulating valves, and sampling ports.

5. The material of the drum body, drum cover, and large piston is high-strength stainless steel, and the locking ring is high-strength chrome nickel stainless steel.

6. The parts in contact with materials such as the disc, inlet and outlet, and cover are all made of 316L material.

7. The base is made of high-strength cast iron, and the surface of the body is treated with high-temperature baking paint.

8. The sealing ring material in contact with the material is silicone (provide hygiene proof)





Detailed images



Name: Parts in the rotating bowl drum
Brand: Juneng
Original: China



The drum is a component to separate material and rotates at high speed, is the heart of the separator.

The separator bowl has gone through precise dynamic balance, it can run steadily, with low vibration and noise at operation.



All parts & components contacting materials are made of stainless steel, can effectively minimize the corrosion from the materials to be separated, and meet hygienic requirements for food.

Three Phase Separation Disc Separator High Speed Rotating Precision 360mm 2
