Slag Removal Model Disc Separator Automatic Liquid-Solid Two-Phase Concentration

Place of Origin Yixing, Jiangsu
Brand Name Juneng Machinery
Certification CE
Model Number DBY603
Minimum Order Quantity One set
Price $ 10,000-30,000 / set
Packaging Details Standard Wooden Case
Delivery Time 70 Days
Payment Terms TT, L/C
Supply Ability 10 set / months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Automatic Slag Removal Model Disc Separator Liquid-solid Two-phase Concentration And Separation Drum Diameter 290mm
Material Of Drum Parts High Strength Duplex Stainless Steel Disc Material Material: 316L
Parts In Contact With Materials 316L Bearing Brand SKF
High Light

Slag Removal Model Disc Separator


Automatic Slag Removal Disc Separator


Slag Removal Liquid-Solid Disc Separator

Leave a Message
Product Description

Automatic slag removal model disc separator liquid-solid two-phase concentration and separation



The DBY series automatic slag removal model disc separator is mainly used as a specialized equipment for liquid-solid two-phase concentration and separation. It is mainly used for the concentration and separation of materials such as fermentation broth, cell culture broth, fruit juice beverages, as well as the separation and clarification of liquids containing small amounts of suspended solids. It has the characteristics of high speed, good separation effect, stable operation, and fully automatic control.

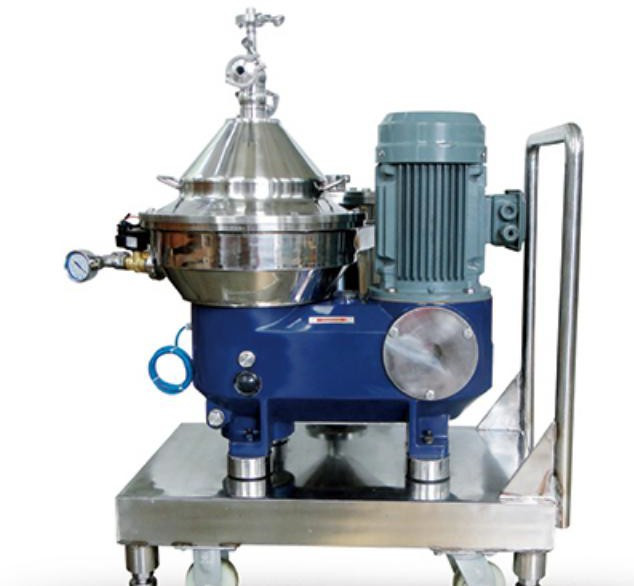

Slag Removal Model Disc Separator Automatic Liquid-Solid Two-Phase Concentration 0

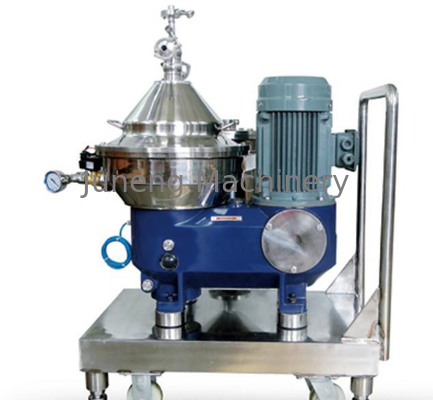

Slag Removal Model Disc Separator Automatic Liquid-Solid Two-Phase Concentration 1

Product Specifications:


Model Treatment
capacity (L/H)
pressure (Mpa)
pressure (Mpa)
power (Kw)
Weight(Kg) Outline
dimension (mm)
DBY603 500-1000 0.2 0.1-0.4 4 550 950*700*850
DBY209 1000-3000 0.1 0.1-0.4 11 1300 1650*1200*1550
DBY211 2000-5000 0.05 0.1-0.4 15 1600 1800*1200*1750
DBY614 3000-10000 0.1 0.1-0.4 22 2300 1950*1550*1960
DBY616 5000-15000 0.2 0.1-0.4 45 3400 2380*1730*2060
DBY620 5000-35000 0.1 0.1-0.4 55 3800 2353*1670*2273




1. The machine adopts a flexible feeding system design, which can reduce the shear force on the material and improve the concentrate phase yield.

2. All parts in contact with materials have undergone polishing treatment on their surfaces.

3. The drum adopts a special piston controlled slag discharge structure, with reliable performance.

4. The machine adopts a bottom flat belt transmission method and a short vertical shaft design, with a low center of gravity and good stability. The machine is started using a frequency converter, which is flexible and convenient to operate, reliable and energy-saving.

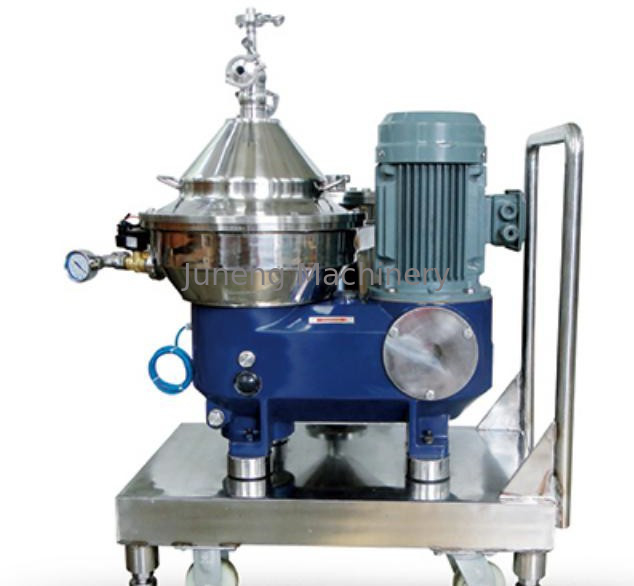

Slag Removal Model Disc Separator Automatic Liquid-Solid Two-Phase Concentration 2

Juneng Group

Slag Removal Model Disc Separator Automatic Liquid-Solid Two-Phase Concentration 3
Juneng Group is a large scale manufacturer of industrial products in China. This group principally engaged with the in-house research & development as well as manufacturing of various industrial filters, separators , centrifuges and pumps.
The Company now has its 4 production bases with a total capacity of 280,000 square meters in Nanjing city and Yixing City , permanent workforces not less than 1100 people and the production line is well equipped with more than 2000 inits of advanced production equipment and test Instrumentation

Juneng Manufacture Scope
1 . Disc Separator                                                           2 . Decanter Centrifuge
3 . Filter                                                                           4 . Pump
5 . Thin-film Evaporator                                                   6 . Siphonic Centrifuge
7 . Heat Exchanger


Slag Removal Model Disc Separator Automatic Liquid-Solid Two-Phase Concentration 4
Product Name
Juneng Machinery Factory
Juneng Machinery (China) Co.,Ltd(Nanjing)
Juneng Machinery (China) Co.,Ltd(Nanjing)


30+ Years Experience

For more than 30 years, Juneng Separator has been developing and manufacturing disc stack centrifuge.


40000+ Installations

Since 1988, there are more than 40000+ centrifuges from Juneng Separator installed in more than 50+ Countries.


100+ Centrifuge models

In order to satisfy customer's demand from various field, more than 100+ centrifuge modles have been launched.



Worldwide many well-know manufacturers of food and pharmaceutical rely on Juneng centrifugal separation technology.


People never stop bringing forward higher requirements for high quality and diversity of beer, wine, fruit juice, vegetable juice, coffee, tea, milk and other beverage.
Fruit juices contain various essences. But some components such as tannin (tannic acid), pectin (carboxymethyl cellulose) ,residues and crude fiber formed in pretreatment processes such as peeling and stoning may influence the appearance quality of fruit juice products, especially the representation and clarification treatments are carried out according to different process requirements, and they are especially important to clear juices.
The separators made by Juneng can meet the requirements in the above industries, because it create a soft separation environment which ensure the active, nuttrition and freshness of the product, meanwhile the dividualized process control can realize maximized processing efficiency during the processing.

Quality Guarantee
1, Every company deeply understand that quality is the basic weapon for an enterprise to win. Quality is one of the factor that helped the business to achieve success, so we strive to provide qualitative business.
2, Our Quality Control department is comprised of experienced engineers, technicians and QC inspectors. The best products from the high reputation company and will do better than any other company

Why Choose Juneng


 1 . Factory visit is available if you need  2 . Preferential quotation is provided.
 3 . 24 hours technical consultation  4 . Compliance to delivery lead time
 5 . Technicians are availabled for overseas service  6 . Sufficient spare parts in stock are available.
