Nozzle Starch Centrifugal Separators For Gluten Concentration /Clarification Separation
| Place of Origin | Jiangsu , China |
|---|---|
| Brand Name | Juneng |
| Certification | ISO/CE |
| Model Number | DPF935 |
| Minimum Order Quantity | 1 set |
| Price | USD90000-200000/set |
| Packaging Details | Seaworthy packing |
| Delivery Time | 60 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 40 set/ Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Nozzle Starch Centrifugal Separators For Starch Separation/Gluten Concentration Separation/Clarification Separation | Voltage | 380V,400V, 415V Or Specified |
|---|---|---|---|
| Drum Inner Diameter | 935mm | Equipment Weight | 11000Kg |
| Bowl Type | Nozzle | Outline Size (length * Width * Height) | 3200x1800x3100mm |
| High Light | Starch Centrifugal Separators For Gluten Concentratio,380V Nozzle Starch Centrifugal Separators,935 mm Starch Centrifugal Separators |
||
Product Description
Nozzle Starch Centrifugal Separators For Starch Separation/Gluten Concentration Separation/Clarification Separation
Overview
Juneng Machinery is one of the modernize companies which have most separator series, application industries and most advanced equipment processing in China. It has more than 20 years in separator design and manufacturing experience. There are about 10 series including 80 kinds of separators and applied in more than 20 industries. Our products are all over the world and exported to some countries in Southeast Asia, Central Asia, the Middle East and Europe.
Product Description

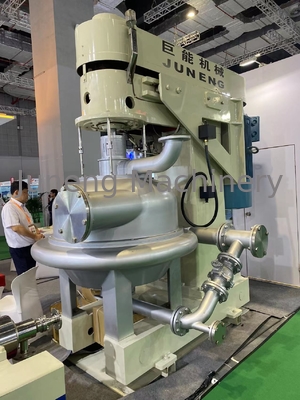

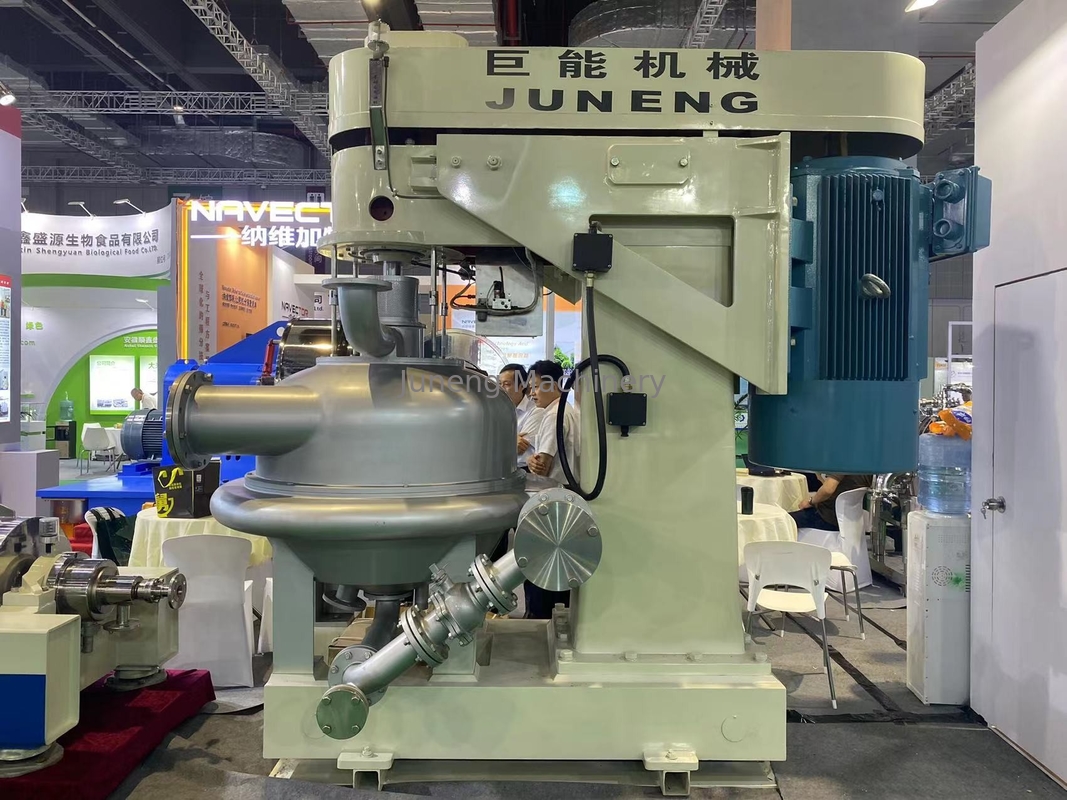

The DPF series starch separator of our company is mainly composed of body,drive system upright post listing system and bowl.
1.Machine dody
The body is consist of rotary cantalever,upright post and bottom seat. The hydraulic lifting system is designed in the upright post.
2.Drive system
It’s very convenient to listing the whole frame and bowl system through this lifting system and it can be rotated 360°, make clean the bowl and replace the nozzle easily.
3.The bowl
The bowl is a heart of separator, all that we need to process is finished in this highly rotating bowl system. It is composed of bowl, bowl cover, seal ring, disk support, disk and 30 nozzles, etc. Each part on the bowl is the key of separator, the key parts processed by numerical control machine and all controlled by the strict quality assurance system. After precision assemble of these parts, then do the dynamic balance test.
Technological parameters
| Model | Throughput capacity (T/H) | Max.bowl speed(RPM) | Motor power(KW) | Weight (kg) |
| DPF445 | 20-35 | 4500-5200 | 30 | 1400 |
| DPF550 | 25-45 | 4650 | 37 | 1550 |
| DPF600 | 30-60 | 2850-4800 | 75/55 | 3500 |
| DPF800 | 22-115 | 2750-3300 | 132/110 | 7800 |
| DPF935 | 45-225 | 2250-3050 | 250/220 | 11000 |
| DPF960 | 45-250 | 2250-3000 | 250/220 | 11500 |
| DPF1000 | 45-300 | 2250-2950 | 300/220 | 12000 |
| DPF1170 | 50-500 | 2200-2800 | 315/250 | 15000 |
Model description
Test & Inspection
1. Material Test Report 2. Magnetic Particle Examination
3. Nondestructive Examination 4. Liquid Penetrant Examination
5. Dynamic Balancing Test 6. Radiographic Examination
