Nozzle Starch Centrifugal Separator Stainless Steel For Fermentation Broth

Place of Origin China(Yixing, Jiangsu)
Brand Name Juneng Machinery
Certification CE、ISO9001
Model Number DPF445
Minimum Order Quantity One set
Price USD $ 20000-$50000
Packaging Details Standard Wooden Case
Delivery Time 60 days
Payment Terms TT, L/C
Supply Ability 40 set / months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Advanced Stainless Steel Nozzle Starch Centrifugal Separator For Fermentation Broth, Chemical Industry, And Medicine Moving Part Drum
Treatment Capacity(T/H) 20-35 Speed Of Drum 4500-5200
Motor Power(kw) 30 Weight(kg) 1400
Outline Size(L*M*H Mm) 1284*1407*1457
High Light

nozzle starch stainless steel centrifugal separator


nozzle starch centrifugal separator


stainless centrifugal separator For Fermentation Broth

Leave a Message
Product Description

Advanced stainless steel nozzle starch centrifugal separator for fermentation broth, chemical industry, and medicine




The DPF445 separator is a high-speed, high-precision, sealed, and efficient separation equipment mainly used for solid-liquid two-phase separation and concentration in industries such as fermentation broth, chemical industry, and medicine. All components in contact with materials are made of advanced stainless steel materials (or specific acid resistant materials), which can effectively reduce the corrosion between the separated materials and the surface of the parts in contact, and meet food hygiene requirements. The separated light phase material is output by a centripetal pump, with a maximum output pressure of 0.30MPa. This machine adopts the form of upper feeding.

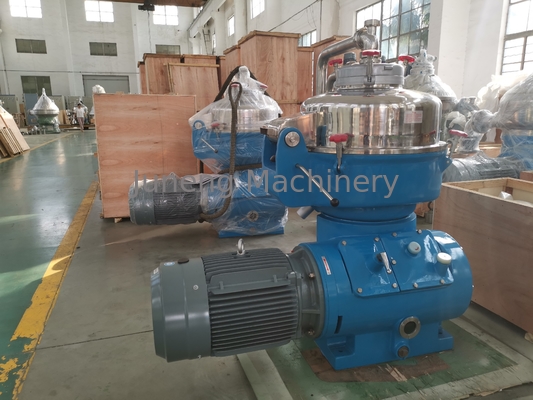

Nozzle Starch Centrifugal Separator Stainless Steel For Fermentation Broth 0

Technical data:


Model Throughput capacity (T/H) Max. bowl speed(RPM) Motor power (KW) Weight (kg)
DPF445 20-35 4500-5200 30 1400
DPF520 25-45 4650 37 1550
DPF600 30-60 2850-4800 75/55 3500
DPF800 22-115 2750-3300 132/110 7800
DPF935 45-225 2250-3050 250/220 11000
DPF960 45-250 2250-3000 250/220 11500
DPF1000 45-300 2250-2950 300/220 12000
DPF1170 50-500 2200-2800 315/250 15000



Working principle:

The separated material enters the drum of the separator, and under the strong centrifugal force field, the material enters the separation interval of a group of disc bundles from the large end of the disc. The solid with a larger proportion moves along the disc wall towards the large end, accumulating in the sediment area, and is continuously discharged from the machine by the nozzle. The liquid with a smaller specific gravity moves along the disc wall towards the small end of the disc, converging at the centripetal pump at the top of the drum, and outputting from the centripetal pump to the next process. The maximum output pressure can reach 0.30MPa.

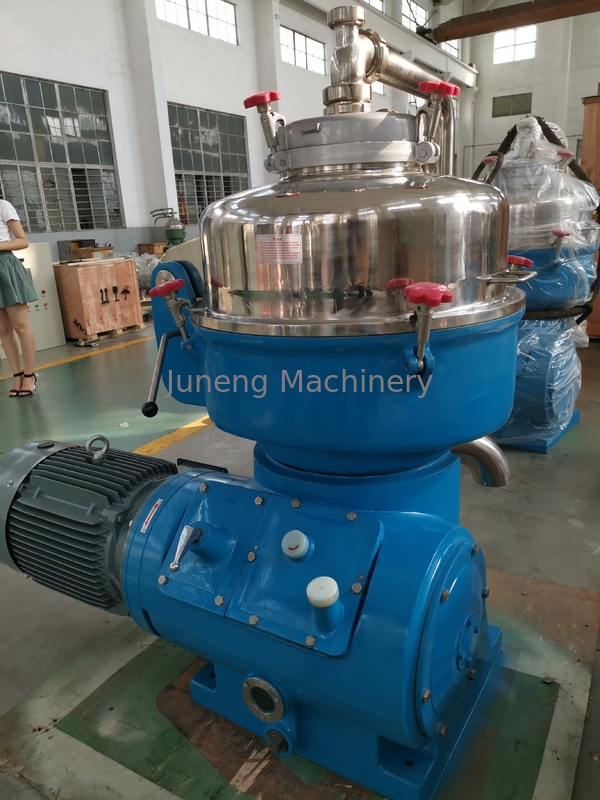

Nozzle Starch Centrifugal Separator Stainless Steel For Fermentation Broth 1



Each separator is a nozzle centrifuge designed for continuous discharge of solids. It is used for classifying, concentrating and washing solids , and for clarifying liquids that contain relatively high solids concentrations. They are widely used in the starch industry for processes that include primary starch separation, gluten thickening, and middling concentration.

Graining process :  Corn / Cassava/ wheat/ potato starch


Product competitive advantage:


1, Big diameter of drum, large area of disk, strong capability of production(separation), excellent effect of separation.

2, Adopting top-suspension driving, which makes the separator with high rotation stability, largely improves the using life of bearings and main shaft.

3, Adopting automatic control of lubricating oil circuit, which protects and prolongs the using life of driving system.
