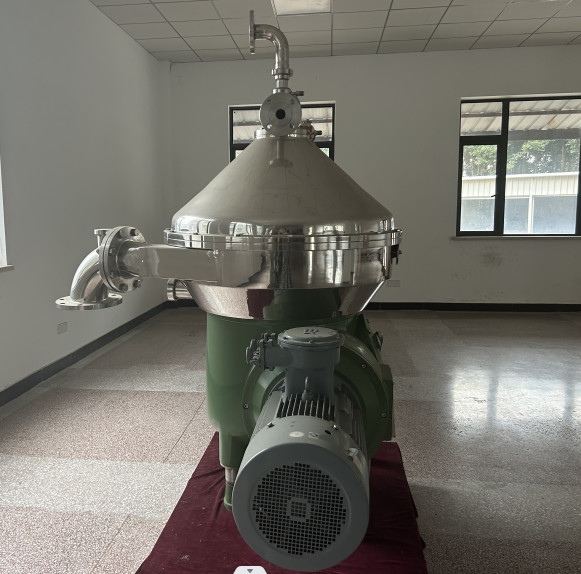

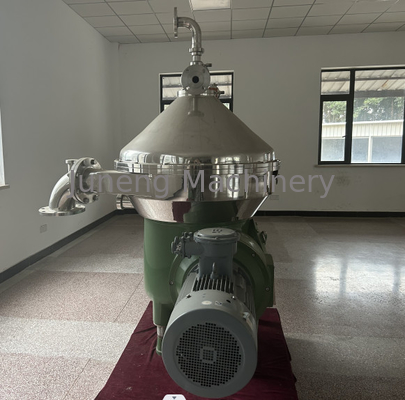

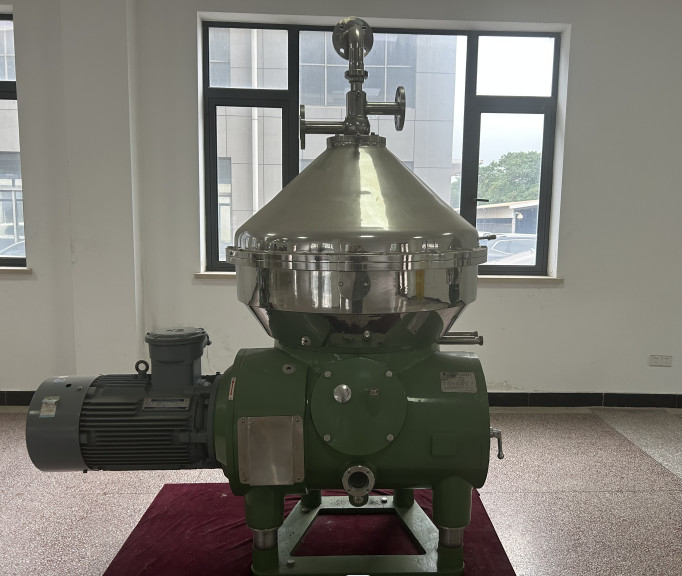

5-15m³/h Stainless Steel Disc Separator Centrifuge For Biological Pharmaceutical

Place of Origin Jiangsu,China
Brand Name Juneng
Certification ISO/CE
Model Number DHC214
Minimum Order Quantity One set
Price USD18000-55000/set
Packaging Details Seaworthy packing
Delivery Time 60 days
Payment Terms L/C, T/T
Supply Ability 30 sets / months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 5-15m³/h Stainless Steel Disc Separator Centrifuge For Biological,Pharmaceutical Treatment Capacity(m³/h) 5-15
Inlet Pressure(Mpa) 0.2 Outlet Pressure(Mpa) 0.4
Motor Power(Kw) 22 Weight( Kg)) ~2200
Outline Dimension(mm) 1980*1550*2020
High Light

Pharmaceutical Disc Separator

,

Biological Disc Separator

,

15m³/h Disc Separator

Leave a Message
Product Description

5-15m³/h Stainless Steel Disc Separator Centrifuge For Biological,Pharmaceutical



Product Description

Biopharmaceutical as a high-technology has opened up a broad foreground for the development of medical industry and pharmaceutical industry and greatly improved people's lives. Therefore,biotechnology has been identified by the world as the key technologies and new industries in the world's scientific and technological development in 21stcentury.
The separation quality plays an important role in biopharmaceutical process.Juneng workers with its rich experiences in separation technologies aim at material extraction and purification during production of antibiotics,alkaloidsand hormone, separation and purification of cell proteins as well as blood plasmaseparation. Juneng workers also researchvarious disc separator to meet kinds ofseparation process.

5-15m³/h Stainless Steel Disc Separator Centrifuge For Biological Pharmaceutical 0



Technical data

Model

Treatment
capacity (m³/H)

Inlet
pressure (Mpa)

Outlet
pressure (Mpa)

Motor
 power (Kw)

Weight(Kg)

Outline
dimension (mm)

DHC211 3-8 0.2 ≤0.2 15 1880 1800*11200*1910
DHC214 5-15 0.2 ≤0.4 22 2200 1980*1550*2020

DHC216

15-25

0.2

≤0.4

37

3300

2100*1900*2400

DHC611

3-8

0.2

≤0.2

18.5

2000

1875*1250*1800

DHC614

85-15 0.2 ≤0.4 30 2100 2000*1600*1900
DHC620 20-35 0.2 ≤0.4 55 3600 2360*1690*2500









Successful Applications

Separation of the extract(such as penicillin, vitamin,Colibacillus, Antibiotics, Hormones,etc.),Vaccine, Microbial

Concentration, Concentration and Clarification of Fermentation Broth Blood Separation, extraction of Chinese medicine, etc


Detailed Images
5-15m³/h Stainless Steel Disc Separator Centrifuge For Biological Pharmaceutical 1

Parts in the rotating bowl drum

ll parts & components contacting materials are made of stainless steel, can effectively minimize the corrosion from the materials to be separated, and meet hygienic requirements for food.

The separator bowl has gone through precise dynamic balance, it can run steadily, with low vibration and noise at operation.

5-15m³/h Stainless Steel Disc Separator Centrifuge For Biological Pharmaceutical 2

Vertical shaft and horizontal shaft
All the parts are made of stainless steel
High quality machining
Refining Machine



5-15m³/h Stainless Steel Disc Separator Centrifuge For Biological Pharmaceutical 3
Material



Super stainless steel
Function
Running in High speed
Assembly
Precision assembly
Speed
5000-12000 RPM
5-15m³/h Stainless Steel Disc Separator Centrifuge For Biological Pharmaceutical 4

PLC control box

The separator is equipped with an automatic control cabinet. It consist of an industrial computer and auto overload protector, is highly automated, highly adaptive to change in process, easy to adjust, can greatly reduce the operation labor of workers.

5-15m³/h Stainless Steel Disc Separator Centrifuge For Biological Pharmaceutical 5

Product Equipment

Our company has set-up a first class laboratory for Chemical composition analysis, metallographic analysis, spectrum analysis, performance analysis, radiographinc inspection, magnetism inspecion, ultra-sonic inspection and etc. This is to imply with the latest adva nce instrumentationss and rigorous working attitude to ensure every part of product is stable and reliable.


Test & Inspection

QA & QC / Test

1. Material Test Report 6. Spare Parts Inspection

2. Magnetic Particle Examination 7. Nondestructive Examination

3. Metallographic Analysis Sampling 8. Dynamic Balancing Test

4. Liquid Penetrant Examination 9. Radiographic Examination

5. Over Speed Test 10. Performance Test

5-15m³/h Stainless Steel Disc Separator Centrifuge For Biological Pharmaceutical 6
5-15m³/h Stainless Steel Disc Separator Centrifuge For Biological Pharmaceutical 7
5-15m³/h Stainless Steel Disc Separator Centrifuge For Biological Pharmaceutical 8
5-15m³/h Stainless Steel Disc Separator Centrifuge For Biological Pharmaceutical 9
5-15m³/h Stainless Steel Disc Separator Centrifuge For Biological Pharmaceutical 10

Company Instruction

Juneng Group is a large scale manufacturer of industrial products in China. This group principally engaged with the in-house research & development as well as manufacturing of various industrial filters, separators , centrifuges and pumps.





5-15m³/h Stainless Steel Disc Separator Centrifuge For Biological Pharmaceutical 11

5-15m³/h Stainless Steel Disc Separator Centrifuge For Biological Pharmaceutical 12




Our philosophies of development:



* Based on continuous strengthen ourselves with full of innovative ideas



* 5% of sales revenue is allocated into intensive research



* 8% of workforce is allocated into development activity



* Plenty of patent and good quality new products



Certificates:



5-15m³/h Stainless Steel Disc Separator Centrifuge For Biological Pharmaceutical 13
