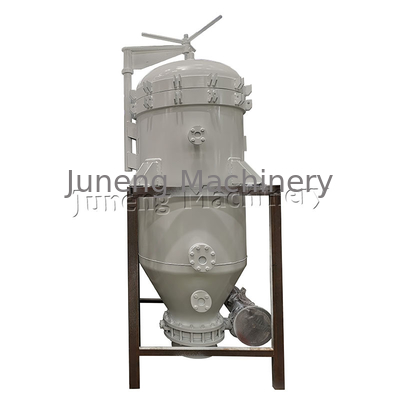

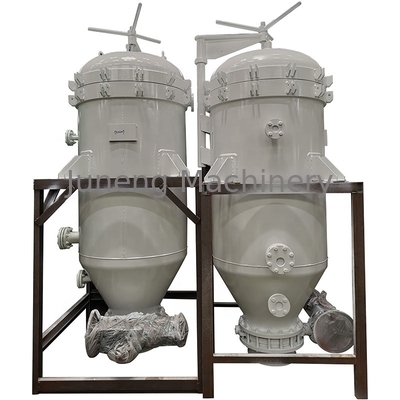

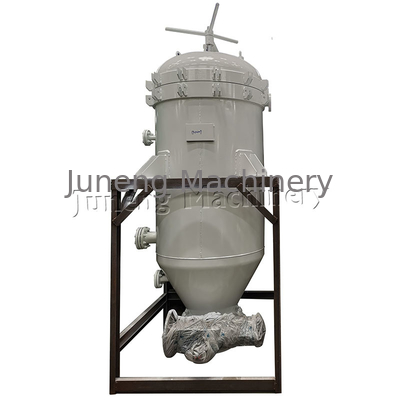

SS304 Vertical Pressure Leaf Filter 20m2 Filtration Area 4-6T/H Capacity
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | Juneng |
| Minimum Order Quantity | 1 set |
| Price | $18,000-20,000 / set |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | 1300 Kg | Material | Stainless Steel 304 |
|---|---|---|---|
| Capacity | 4-6T/H For Oil | Filtration Area | 20m2 |
| Design Temperature | 100-150 ℃ | Design Pressure | 0.6Mpa |
| Work Pressure | 0.1-0.4 Mpa | Max Pressure | 0.5 Mpa |
| Work Temperature | ≤150 ℃ | Machine Volume | 1680 L |
| Filter Cake Volume | 400 L | Leaf Material | SS 316L |
| Leaf Thickness | 1.8 Mm | Valve Type | DN 400 Butterfly Valve |
| Valve Seat Material | NH-S (up To 150 °C) | ||
| Highlight | SS304 vertical pressure leaf filter,20m2 filtration area pressure filter,4-6T/H capacity vertical filter |
||
Product Description
Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
Product Specifications
| Attribute | Value |
|---|---|
| Condition | New |
| Weight (kg) | 1300 |
| Warranty | 1 Year |
| After-sales Service | Field maintenance and repair service |
| Name | Pressure leaf filter |
| Structure | Vertical leaf Filter |
| Material | Stainless Steel 304 |
| Capacity | 4-6T/H for oil |
| Filtration area | 20m² |
| Color | Green or blue |
| Design Temperature | 100-150 ℃ |
| Design Pressure | 0.6Mpa |
| Applicable Industries | Manufacturing Plant, Food & Beverage Factory |
| Core Components | Pressure vessel |
Product Description
The NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.
Technical Specifications
| Model | Filtration area (m²) | Filter cake volume (L) | Treatment Capacity (Oil) | Treatment Capacity (Resin) | Treatment Capacity (Beverage) | Work Pressure (Mpa) | Max Pressure (Mpa) | Work temperature (℃) | Machine volume (L) |
|---|---|---|---|---|---|---|---|---|---|
| NYB-2 | 2 | 30 | 0.4-0.6 | 1-1.5 | 0.1-0.4 | 0.1-0.4 | 0.5 | ≤150 | 120 |
| NYB-4 | 4 | 60 | 0.5-1.2 | 2-3 | 2-5 | 250 | |||
| NYB-20 | 20 | 400 | 4-6 | 9-15 | 12-17 | 1680 |
Main Features
- No cloth or filter paper required, significantly reducing filtration costs
- Fully closed operation is environmentally friendly with no material loss
- Vibration residue falling reduces labor intensity and enables continuous operation
- Residue discharging through pneumatic valve reduces worker labor intensity
- Can completely replace plate and frame filters with activated carbon filtering capability
Filter Leaf Specifications (Example: NYB-12)
- 11 filter leaves provide 12 m² filtration area
- Leaves made with heavy box channel 1.8 mm material 316L
- Topside of leaf with reinforcement and vibrator fork (SS 316)
- Leaf bottom with outlet nozzle featuring "O"ring seal (SS 316 and Viton rubber)
Butterfly Valve Specifications (Example: NYB-12)
- DN 400 butterfly valve WAFER TYPE for dry cake discharge
- 1st quality butterfly valve with NH-S seat material (up to 150°C)
- Includes pneumatic actuator double acting type with 5.5 Bar air supply
Certifications
ASME U (Certificate No.: 38793)
ISO 9001:2015 (Certificate No.: CN1299-QC)
ISO 14001:2015 (Certificate No.: CN1299-EC)
ISO 45001:2018 (Certificate No.: CN1299-SC)
BV and CE Certified
Our Service
Pre-Sales Service
- Inquiry and consulting support
- Sample testing support
- Factory viewing available
After-Sales Service
- Installation and operation training
- Engineers available for overseas service
- Prompt response within 2 hours for domestic issues
