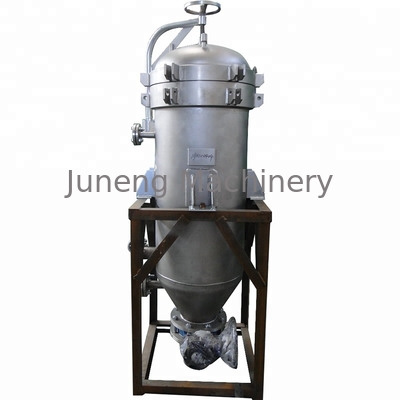

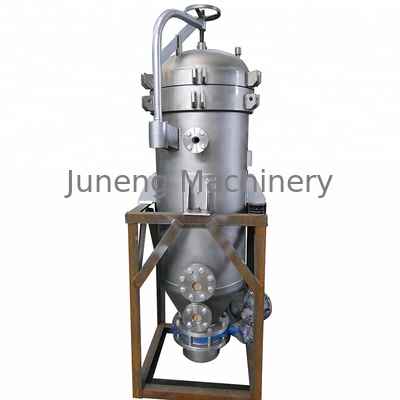

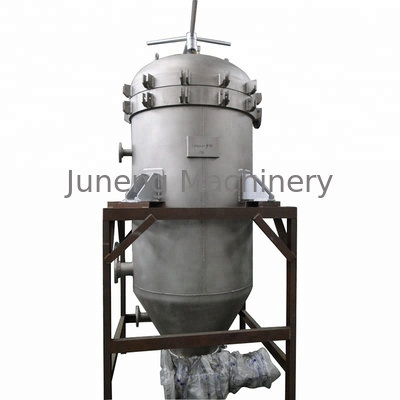

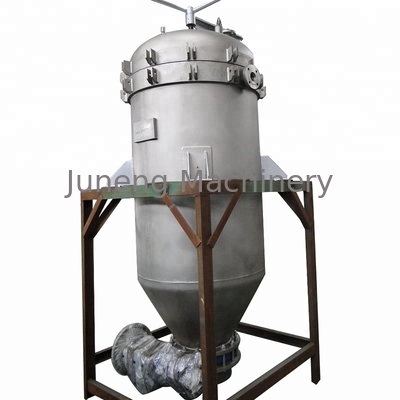

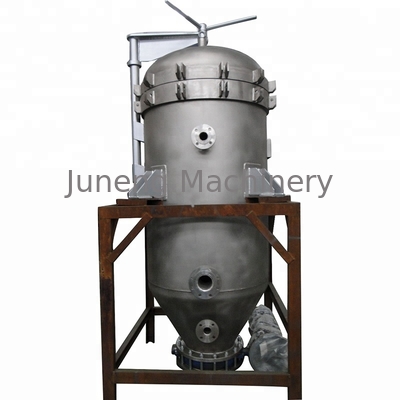

Semi-Automatic Vertical Leaf Oil Filter Press 2-4T/H 12m2
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | Juneng |
| Certification | BV,ISO,CE,ASME U |
| Minimum Order Quantity | 1 set |
| Price | $12,500-13,500 / set |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Automatic Grade | Semi-automatic | Voltage | Customized |
|---|---|---|---|
| Power | 1500 W | Weight | 1000 Kg |
| Dimensions | 1610*1250*2500 Mm | Structure | Leaf Filter |
| Capacity | 2-4T/H | Filtration Area | 12m2 |
| Material | Carbon Steel, Stainless Steel | Design Temperature | 100-150 ℃ |
| Design Pressure | 0.6Mpa | Inlet Size | DN50 |
| Filter Cake Volume | 240 L | Work Pressure | 0.1-0.4 Mpa |
| Work Temperature | ≤150 ℃ | ||
| Highlight | semi-automatic vertical leaf filter press,oil filter press 2-4T/H,vertical pressure leaf filter 12m2 |
||
Product Description
New Station Oil Bleaching Vertical Leaf Pressure Filter Press
Product Specifications
| Condition | New |
| Automatic Grade | Semi-automatic |
| Voltage | Customized |
| Power | 1500W |
| Weight | 1000 kg |
| Dimensions (L×W×H) | 1610×1250×2500 mm |
| Warranty | 1 Year |
| After-sales Service | Field maintenance and repair service |
| Function | Oil Filter |
| Structure | Leaf Filter |
| Capacity | 2-4T/H |
| Filtration Area | 12m² |
| Material | Carbon steel, Stainless steel |
| Design Temperature | 100-150 ℃ |
| Design Pressure | 0.6Mpa |
| Inlet Size | DN50 |
| Applicable Industries | Manufacturing Plant, Food & Beverage Factory |
Product Description
NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.
Main Features
- No cloth or filter paper required, significantly reducing filtration costs
- Fully closed operation is environmentally friendly with no material loss
- Vibration residue falling reduces labor intensity and enables continuous operation
- Residue discharging through pneumatic valve minimizes worker labor intensity
- Can completely replace plate and frame filters - a revolutionary device in the filter industry
Technical Specifications
| Model | Filtration Area (㎡) | Filter Cake Volume (L) | Treatment Capacity (Oil) | Work Pressure (Mpa) | Work Temperature (℃) | Machine Volume (L) |
|---|---|---|---|---|---|---|
| NYB-2 | 2 | 30 | 0.4-0.6 | 0.1-0.4 | ≤150 | 120 |
| NYB-4 | 4 | 60 | 0.5-1.2 | 0.1-0.4 | ≤150 | 250 |
| NYB-12 | 12 | 240 | 2-4 | 0.1-0.4 | ≤150 | 1000 |

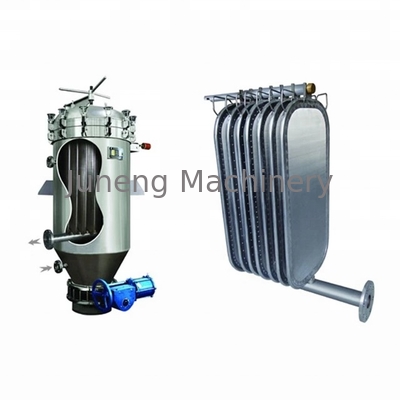

Filter Leaf Specifications (NYB-12 Example)
- 11 filter leaves for 12 sqm filtration area
- Leaves made of 1.8mm 316L material with heavy box channel
- Topside reinforcement with one vibrator fork per leaf (SS 316 material)
- Leaf bottom with outlet nozzle featuring "O"ring seal (SS 316 nozzle with Viton rubber "O"ring)
Butterfly Valve (NYB-12 Example)
- DN 400 butterfly valve WAFER TYPE for dry cake discharge
- High quality butterfly valve with NH-S seat material (up to 150°C)
- Includes pneumatic actuator (double acting type) with 5.5 Bar air supply
Our Services
Pre-Sales Service
- Inquiry and consulting support
- Sample testing support
- Factory visit arrangements
After-Sales Service
- Installation training and machine operation training
- Engineers available for overseas service
- Prompt response within 2 hours for reported issues
Packaging Details
| Package Type | Dimensions | Weight |
|---|---|---|
| Standard Wooden Box | 123×456×789 mm | 1.2 T |
For European exports, wooden boxes are fumigated. Alternative packaging available for special container requirements.
