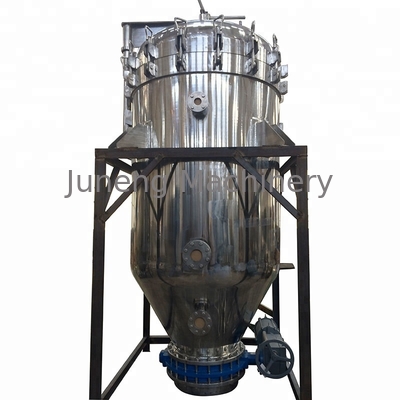

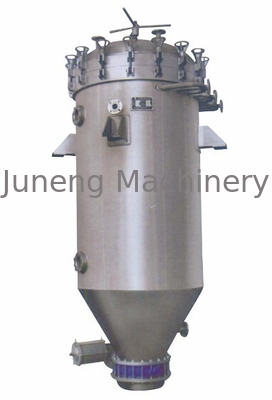

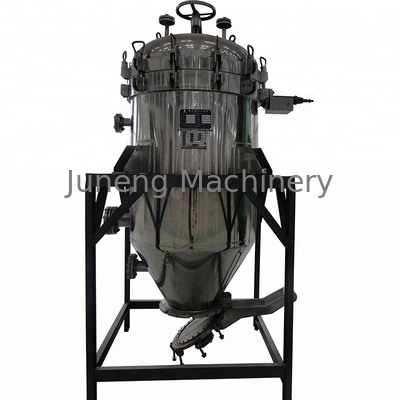

NYB Vertical Pressure Leaf Filter 12m2 Stainless Steel for Oil Industry

Brand Name:	Juneng
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Max Capacity:

500L/H

Particle Size:

Flow Rate:

2gpm (7.6lpm)

Maximum Pressure:

120psi

Filtration Area:

12m2

Material:

Carbon Steel, Stainless Steel

Design Temperature:

100-150 ℃

Design Pressure:

0.6Mpa

Inlet Size:

DN50

Overflow Port Size:

DN40

Filter Cake Volume:

240L

Treatment Capacity:

2-4T/H

Work Pressure:

0.5Mpa

Work Temperature:

≤150 ℃

Machine Volume:

1000L

Highlight:

stainless steel vertical pressure leaf filter

oil industry pressure leaf filter

12m2 vertical leaf filter

Product Description

NYB Vertical Pressure Stainless Steel Plate Filter for Oil Industry

Product Specifications

Attribute	Value
Condition	New
Max. Capacity	500L/H
Warranty	1 Year
Particle Size	2
Flow Rate	2gpm (7.6lpm)
Maximum pressure	120psi
After-sales Service	Field maintenance and repair service
Function	Oil Filter
Structure	Leaf Filter
Capacity	2-4T/H
Filtration area	12m²
Material	Carbon steel, Stainless steel
Design Temperature	100-150 ℃
Design Pressure	0.6Mpa
Inlet size	DN50
Overflow port size	DN40

Product Description

NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

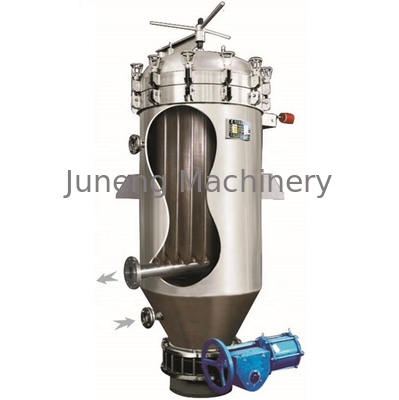

The filter is composed of shell, filtration plate, cover, and automatic dump device. Among them, the filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe, so it can be dismantled for cleaning very conveniently.

Technical Specifications

Model	Filtration area (㎡)	Filter cake volume (L)	Treatment Capacity	Work Pressure (Mpa)	Work temperature (℃)	Machine volume (L)
NYB-2	2	30	0.4-0.6	0.1-0.4	≤150	120
NYB-4	4	60	0.5-1.2	0.5	≤150	250
NYB-7	7	105	1-1.8	0.1-0.4	≤150	420
NYB-10	10	150	1.6-3	0.1-0.4	≤150	800
NYB-12	12	240	2-4	0.1-0.4	≤150	1000
NYB-15	15	300	3-5	0.1-0.4	≤150	1300
NYB-20	20	400	4-6	0.1-0.4	≤150	1680
NYB-25	25	500	5-7	0.1-0.4	≤150	1900
NYB-30	30	600	6-8	0.1-0.4	≤150	2300
NYB-36	36	720	7-9	0.1-0.4	≤150	2650
NYB-40	40	800	8-11	0.1-0.4	≤150	2900
NYB-45	45	900	9-13	0.1-0.4	≤150	3200
NYB-52	52	1040	10-15	0.1-0.4	≤150	3800
NYB-60	60	1200	11-17	0.1-0.4	≤150	4500
NYB-70	70	1400	12-19	0.1-0.4	≤150	5800
NYB-80	80	1600	13-21	0.1-0.4	≤150	7200

Main Features

No cloth or filter paper required, significantly reducing filtration costs
Fully closed operation is environmentally friendly with no material loss
Vibration residue falling reduces labor intensity and enables continuous operation
Residue discharging through pneumatic valve minimizes worker labor intensity
Can completely replace plate and frame filters with activated carbon or bleaching filtering capability

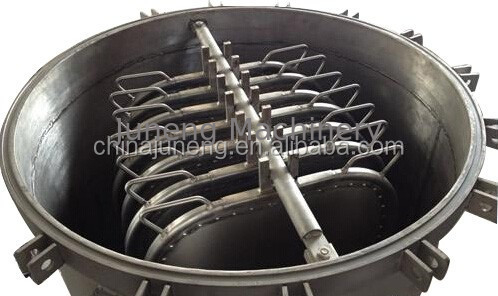

Filter Leaf Specifications (Example: NYB-12)

11 filter leaves provide 12 sqm filtration area
Leaves surrounded by heavy box channel 1.8 mm material 316L
Topside of leaf with reinforcement and one vibrator fork per leaf (SS 316 material)
Leaf bottom with outlet nozzle featuring "O"ring seal (SS 316 nozzle with Viton rubber "O"ring)

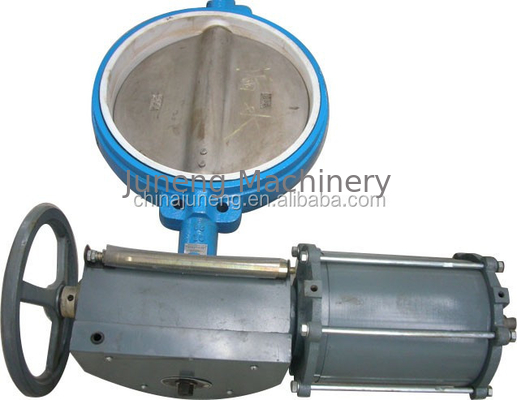

Butterfly Valve Specifications (Example: NYB-12)

DN 400 butterfly valve WAFER TYPE for dry cake discharge at filter bottom
1st quality butterfly valve with NH-S seat material (up to 150°C high temp)
Includes pneumatic actuator (double acting type) with 5.5 Bar air supply

Related Products

Certifications

Our Service

Pre-Sales Service

Inquiry and consulting support
Sample testing support
Factory viewing available

After-Sales Service

Installation and operation training
Overseas engineer service available
Professional after-sales service team

We provide free equipment installation guidance and operator training until mastery is achieved (domestic China). For any issues, we respond within 2 hours and dispatch engineers until resolution (domestic China). Overseas service costs are customer responsibility.

Packing & Delivery

Packaging Detail	Specification
Size	123 (L) * 456 (W) * 789 (D)
Weight	1.2 T
Packaging Details	Standard wooden box packaging. European exports include fumigated wooden boxes. Tight container shipments use PE film or custom packaging per customer request.

Exhibitions

We regularly participate in major industry exhibitions including Canton Fair.

Our Company: Juneng Group

Juneng Machinery (China)Co., Ltd., established in 2006, is a professional manufacturer of filters, separators, decanter centrifuges and pumps with four factories in Nanjing and Yixing City.

We maintain strict quality control and customer service standards, with CE, ASME U and ISO 9001 certifications. Our products sell throughout China and export to USA, Germany, Korea, Japan, and other countries.

We welcome OEM and ODM orders, with engineering support available for custom applications.

Jiangsu Juneng Machinery North Branch

Located in Zhoutie Town, Yixing City, our north branch specializes in various filters including vertical/horizontal pressure leaf filters, self-cleaning filters, and bag filters.

Quality Assurance

Factory audit available prior to purchase
Material inspection during manufacturing and before shipment
Strict compliance with technical requirements

Development Philosophy

Continuous innovation and self-improvement
5% of sales revenue allocated to research
8% of workforce dedicated to development
Multiple patents and high-quality new products
