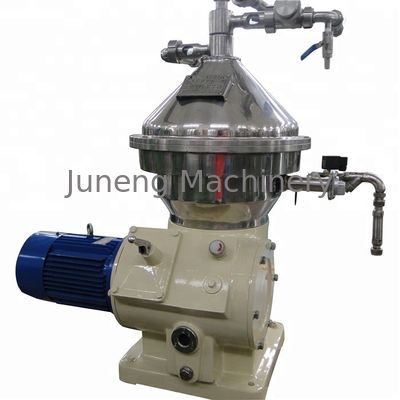

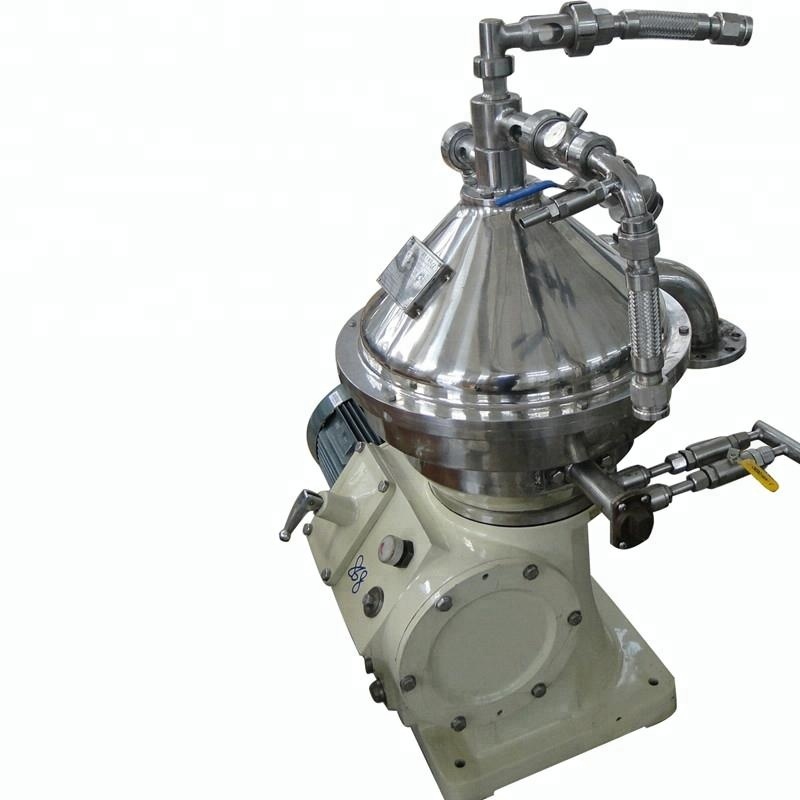

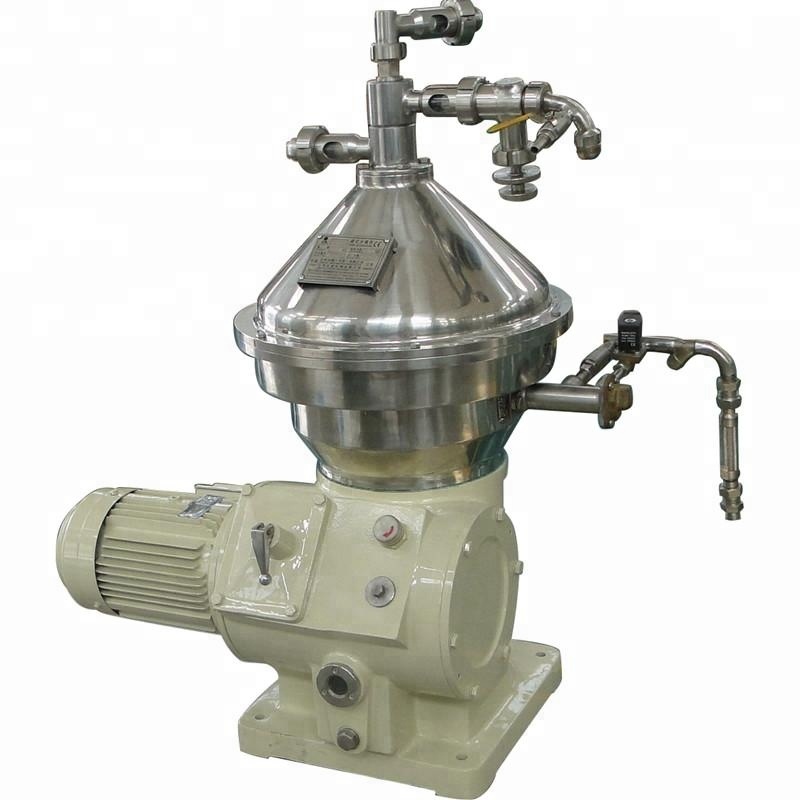

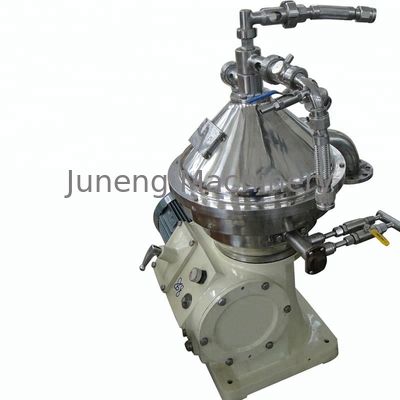

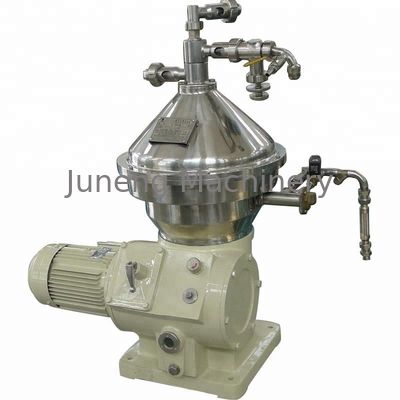

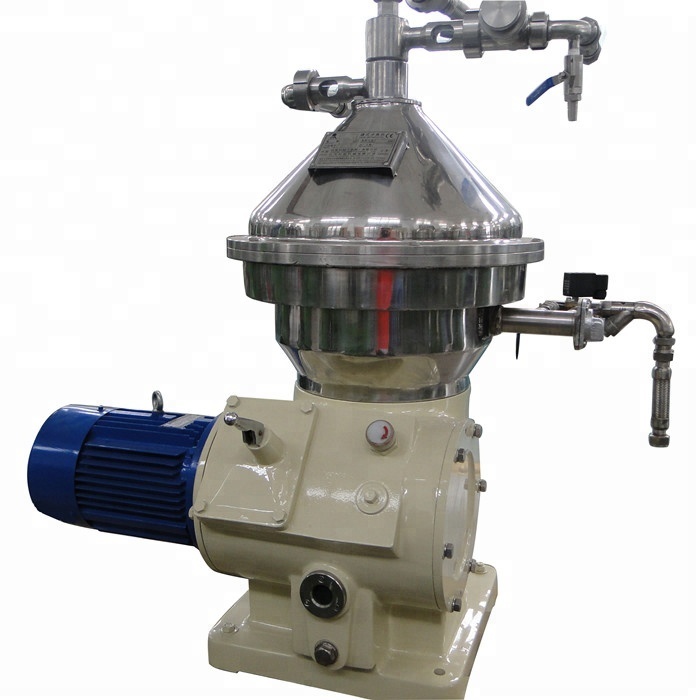

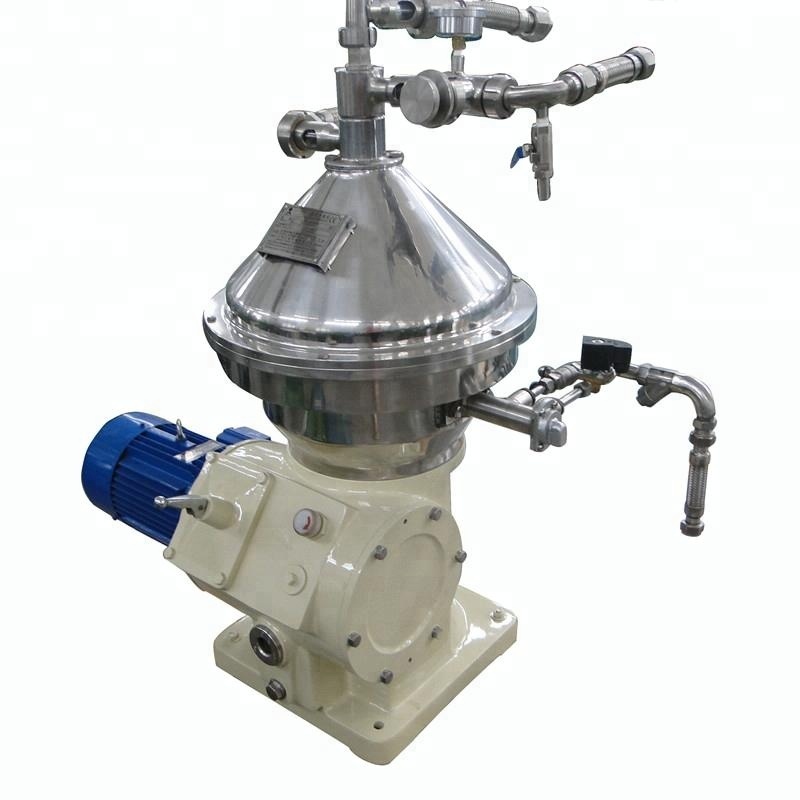

Industrial Milk Cream Separator 500-1500L/H SUS304 Self-Cleaning

  • Industrial Milk Cream Separator 500-1500L/H SUS304 Self-Cleaning
  • Industrial Milk Cream Separator 500-1500L/H SUS304 Self-Cleaning
  • Industrial Milk Cream Separator 500-1500L/H SUS304 Self-Cleaning
  • Industrial Milk Cream Separator 500-1500L/H SUS304 Self-Cleaning
Place of Origin Jiangsu, China
Brand Name Juneng
Certification CE Certificate
Minimum Order Quantity 1
Price $22,388-29,850

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 220V/380V Power 4000W
Weight 520kg Dimensions 810*850*1350mm
Material SUS304/SUS316 Capacity 500-1500L/H
Function Liquid-liquid-solid Separation Processing Milk Skimming
Model DHNZ204 Structure Edge Covered With SS304
Discharge Automatic Core Components PLC, Engine, Bearing, Gearbox, Motor, Gear
Rotating Speed High Noise Level Lower
Sealing System Completely Sealed Inlet/outlet
Highlight

Industrial milk cream separator machine

,

Self-cleaning milk separator 500-1500L/H

,

SUS304 milk cream separator with warranty
Leave a Message
Product Description
Milk Cream Self-cleaning Separator Machine
Product Application

Juneng dairy separator features large capacity, excellent deoiling performance, high efficiency and low energy consumption. The advanced inlet and outlet design ensures gentle treatment during the entire separation process, preventing destructive air entry and maintaining product quality.

Milk products vary widely in composition, from simple milk with different fat contents to diverse dairy products including butter, cheese, quark, and yogurt.

Main Features
  1. High rotating speed
  2. Operating stability
  3. Completely sealed inlet and outlet system
  4. Low noise operation
  5. Exceptional separation efficiency
Technical Specifications
Model DHNZ204
Material SS304
Structure Edge covered with SS304
Function Liquid-liquid-solid separation
Application Milk skimming
Capacity 500-1500 liters per hour
Discharge Automatic
Related Products
Industrial Milk Cream Separator 500-1500L/H SUS304 Self-Cleaning 0
Industrial Milk Cream Separator 500-1500L/H SUS304 Self-Cleaning 0
Three Phase Disc Separator
100% Response Rate
Industrial Milk Cream Separator 500-1500L/H SUS304 Self-Cleaning 2
Industrial Milk Cream Separator 500-1500L/H SUS304 Self-Cleaning 2
Machine Parts

Name: Main Parts of Drum
Brand: Juneng
Origin: China

From left to right are discs, drum cover, disc gland, and slide piston.

Name: Shaft
Brand: Juneng
Origin: China

The vertical shaft transmits power and is equipped with speed step-up gear (small spiral gear) and high-speed rotating components. The cross shaft transfers motor power to the vertical shaft and main drum parts.

Industrial Milk Cream Separator 500-1500L/H SUS304 Self-Cleaning 4
Industrial Milk Cream Separator 500-1500L/H SUS304 Self-Cleaning 5

Name: Assembled Drum
Brand: Juneng
Origin: China

The drum is the high-speed rotating component that performs material separation, serving as the heart of the separator.

Name: Equipment Base
Brand: Juneng
Origin: China

The underframe supports the entire separator and connects to the base. All four supporting feet feature damping rubber pads that effectively isolate vibration between the separator and building structure.

Industrial Milk Cream Separator 500-1500L/H SUS304 Self-Cleaning 6
Certifications

Our company has achieved numerous honors and obtained various certifications including:

  • ASME U (Certificate No.: 38793)
  • ISO 9001:2015 (Certificate No.: CN1299-QC)
  • ISO 14001:2015 (Certificate No.: CN1299-EC)
  • ISO 45001:2018 (Certificate No.: CN1299-SC)
  • BV and CE certifications
Our Service
Industrial Milk Cream Separator 500-1500L/H SUS304 Self-Cleaning 7
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing opportunities
Industrial Milk Cream Separator 500-1500L/H SUS304 Self-Cleaning 8
After-Sales Service
  • Machine installation training
  • Machine operation training
  • Overseas engineer support
Industrial Milk Cream Separator 500-1500L/H SUS304 Self-Cleaning 9
Packing & Delivery
Industrial Milk Cream Separator 500-1500L/H SUS304 Self-Cleaning 10
Packaging
Size 123 (L) * 456 (W) * 789 (D)
Weight 1.2 T

Packaging Details: Standard packaging uses wooden boxes (Size: L*W*H). For European exports, wooden boxes are fumigated. For tight container fits, we use PE film or accommodate special customer requests.
