Industrial Milk Cream Separator 3000-7000L/H 15KW 220V-460V
Disc Bowl Milk Cream 3 Phase Separator Machine Product Application Juneng dairy separator features large capacity, excellent deoiling performance, high efficiency, and lower energy consumption. The advanced inlet and outlet design ensures gentle treatment throughout the separation process, ...
Product Details
Highlight:
Industrial milk cream separator 15KW
,High-capacity milk separator 7000L/H
,220V-460V milk cream separator machine
Voltage:
220V / 380V / 460V
Power:
15000W
Dimensions:
1800*1200*2030 Mm
Weight:
2000 KG
Capacity:
3000-7000 L/h
Speed:
6600 Rpm
Material:
SUS304/SUS316
Core Components:

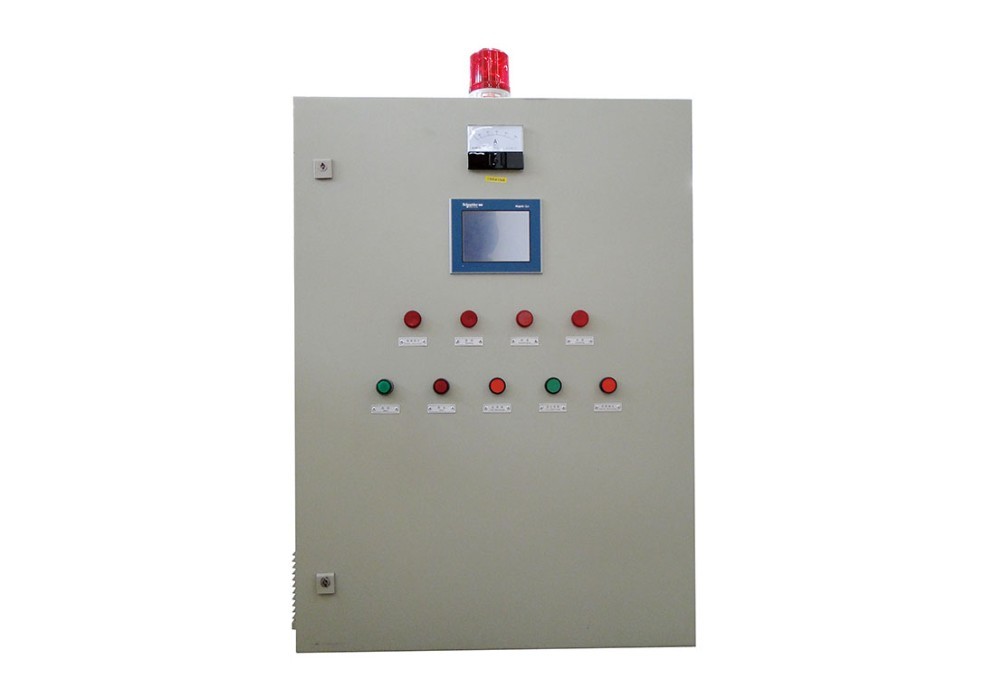

PLC, Bearing, Motor
Inlet Pressure:
0.05 Mpa
Outlet Pressure:
0.1-0.4 Mpa
Motor Power:
15 Kw
Treatment Capacity:
3000-7000 L/H
Noise Level:
Lower
Rotating Speed:
High
Sealing Type:
Completely Sealed
Basic Properties
Place of Origin:
Jiangsu, China
Brand Name:
Juneng
Certification:
CE / ISO
Trading Properties
Minimum Order Quantity:
1
Price:
$30,000-40,000
Product Description

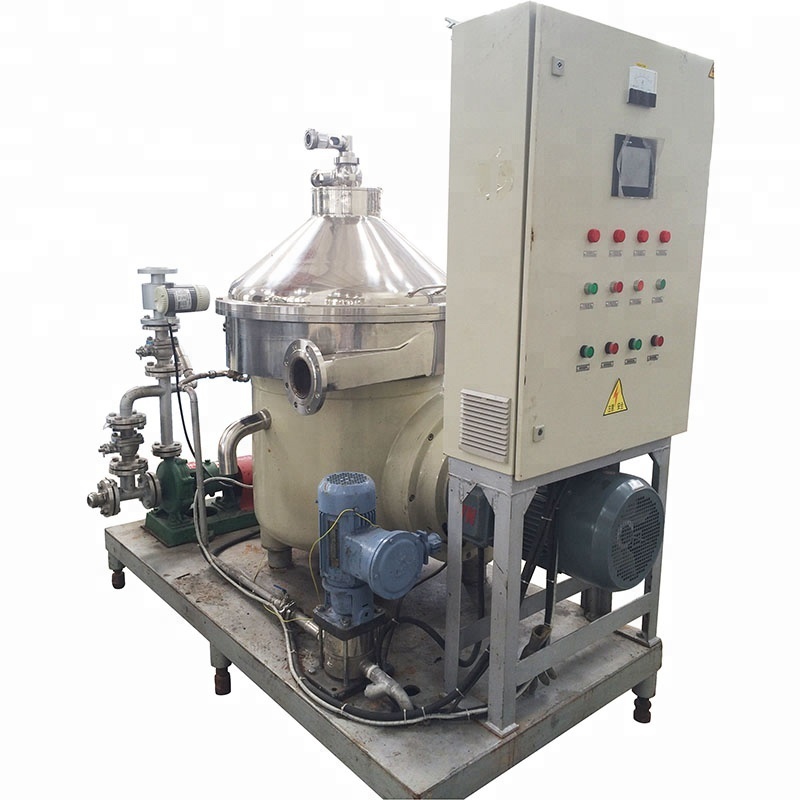

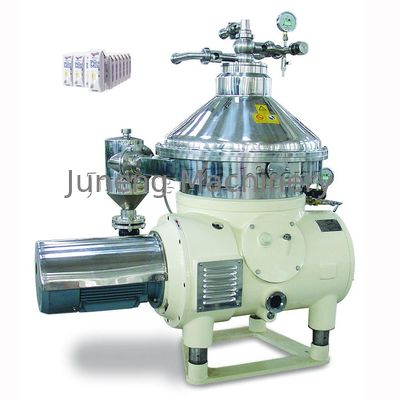

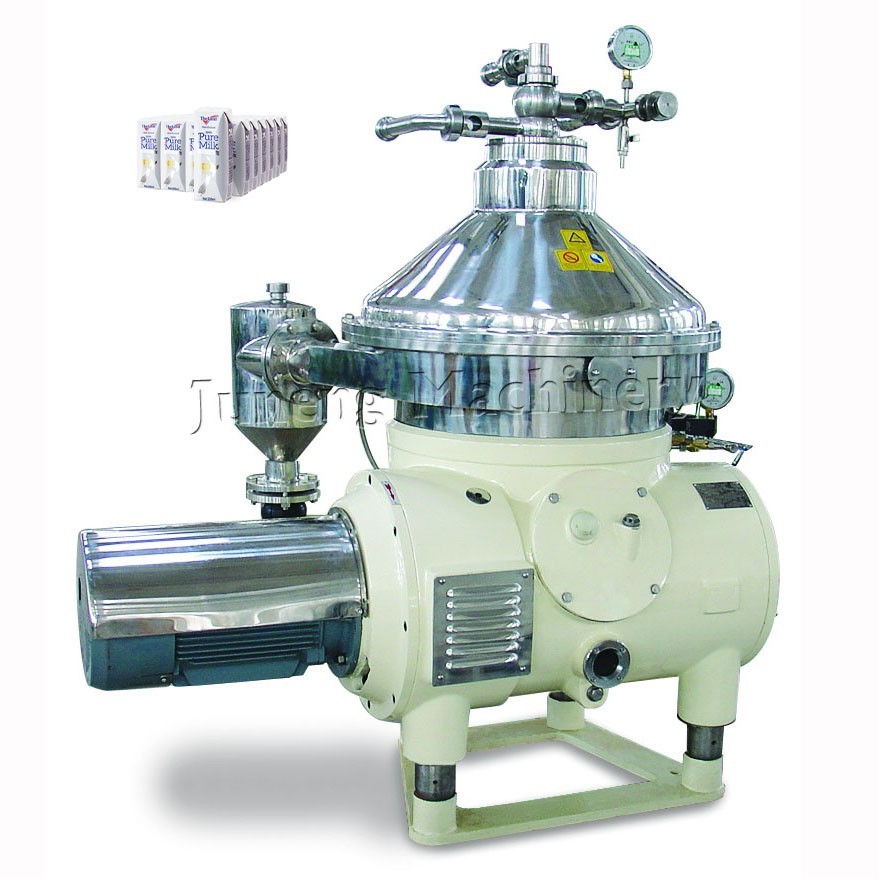

Disc Bowl Milk Cream 3 Phase Separator Machine
Product Application
Juneng dairy separator features large capacity, excellent deoiling performance, high efficiency, and lower energy consumption. The advanced inlet and outlet design ensures gentle treatment throughout the separation process, preventing destructive air entry and maintaining product quality.
Milk products vary widely in composition, from simple market milk with different fat contents to diverse dairy products including butter, cheese, quark, and yogurt.
Main Features
- High rotating speed
- Operating stability
- Completely sealed inlet and outlet system
- Lower noise operation
- Perfect separation efficiency
Technical Specifications
| Model | Treatment capacity (L/H) | Inlet Pressure (Mpa) | Outlet pressure (Mpa) | Motor power (Kw) | Weight (Kg) | Outline dimension (mm) |
|---|---|---|---|---|---|---|
| DHNZ204 | 1000-1500 | 0.05 | 0.1-0.2 | 4 | 520 | 810*850*1350 |
| DHNZ360 | 1000-3000 | 0.05 | 0.1-0.3 | 7.5 | 1200 | 1530*1150*1500 |
| DHNZ470 | 3000-7000 | 0.05 | 0.1-0.4 | 15 | 1600 | 1800*1200*2030 |
| DHNZ550 | 5000-10000 | 0.05 | 0.1-0.4 | 22 | 2300 | 1950*1550*1960 |
Machine Components
Disc
Brand: Juneng | Origin: China
Shaft
Brand: Juneng | Origin: China

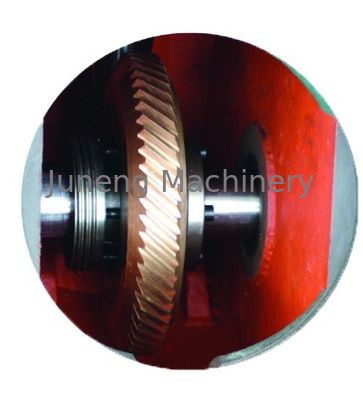

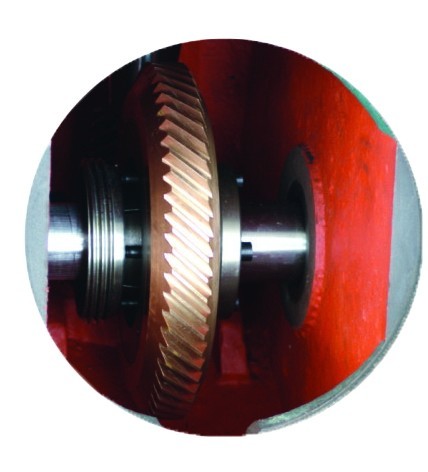

The vertical shaft transmits power and is equipped with speed step-up gear (small spiral gear) and high-speed rotating parts. The cross shaft transmits motor power to the vertical shaft and main drum components.

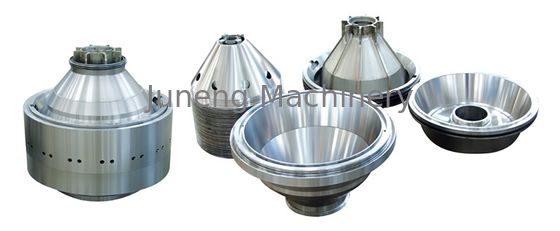

Drum
Brand: Juneng | Origin: China

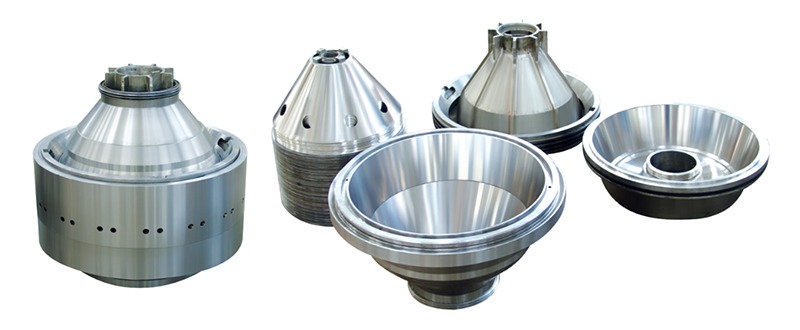

The drum is the high-speed rotating component that performs material separation, serving as the heart of the separator.
Equipment Base
Brand: Juneng | Origin: China
The underframe supports the entire separator and connects to the base. All four supporting feet feature damping rubber pads that effectively isolate vibration between the separator and building structure.
Test & Inspection
- Material Test Report
- Magnetic Particle Examination
- Nondestructive Examination
- Liquid Penetrant Examination
- Dynamic Balancing Test
- Radiographic Examination
Our Service
Pre-Sales Service
- Inquiry and consulting support
- Sample testing support
- Factory viewing opportunities
After-Sales Service
- Machine installation training
- Operator training
- Overseas engineer support
We maintain a dedicated division to support on-site service domestically and overseas. Upon order, our technical engineer will assist with equipment installation to ensure smooth operation and provide comprehensive operator training.
Certifications
Exhibitions We Attended
We have participated in numerous international exhibitions including ACHEMA, AchemAsia 2019, ProFood Tech, 21st Interphex Week Japan, Spring and Autumn Canton Fair, and other domestic trade shows.
Packing & Delivery
| Packaging | |
|---|---|
| Size | 123 (L) * 456 (W) * 789 (D) |
| Weight | 1.2 T |
Standard packaging includes wooden boxes (Size: L*W*H). For European exports, wooden boxes are fumigated. For tight container fits, we use PE film packaging or accommodate special customer requests.
