Automatic Discharge Pressure Vertical Leaf Filter Press Equipment High Efficiency

Place of Origin Jiangsu China
Brand Name Juneng
Certification CE ISO9001 ASME
Model Number NYB 2 NYB10 NYB15 NYB 20 NYB25 NYB 30
Minimum Order Quantity 1 set
Price USD 1000-200000 per set
Packaging Details Internation plywood case and container
Delivery Time 30 days after order
Payment Terms L/C, T/T
Supply Ability 2000 sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
After-service Engineer Available Operation Batch Working
Material Carbon Steel With Paint Filtration Area 2 M2-110 M2
Function Clarified Structure Vertical Plate Filter
Color Customised Design Pressure 4bar - 10 Bar
High Light

high temperature filter bag

,

vertical leaf filter

Leave a Message
Product Description

Production Description

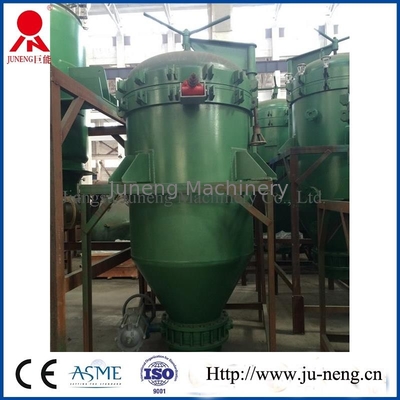

  The Filter is composed of shell, filtration plate , cover, and automatic vibration device. Amont them, the filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe. So it can be dismantled for cleaning very conveniently.

Working principle

The main body of the filter is made up of vessel, filter screen, lifting structure and automatic discharging device. Filterscree are made by material of multilyer stainess steel which installed at the center collection pipe and cleaned up conveniently . In the process of filtration, the unfiltered liquid with filter aid come into the body through transmission system. After a stable filter cake formed on the filter gauze flakes, the filtrate are filtered through the micropores of filter cake

Automatic Discharge Pressure Vertical Leaf Filter Press Equipment  High Efficiency 0



Filter model list



Model Filtration area Filter cake volume Treatment capacity

Work

Pressure

Work

temperature

Machine volume Machine weight
NYB-2 2 30 500-1000 L/H 0.1-0.4 Mpa ≤150℃ 120 L 300 kg
NYB-4 4 60 600-1200L/H 0.1-0.4Mpa ≤150℃ 250L 400kg
NYB-7 7 105 1000-1800L/H 0.1-0.4Mpa ≤150℃ 420 L 600 kg
NYB-10 10 150 1600-3000L/H 0.1-0.4Mpa ≤150℃ 800L 900 kg

Application of High Efficiency Plate Type Leaf filter:

1. Oil industry :Crude oil, bleached oil, hydrided oil, radonized oil, stearin, fatty acid, etc.

2. Petroleum chemical products: diesel oil, lubricating oil, paraffin wax, mineral oil, etc.

3. Beverage: Beer, Juice, Wine, Milk, etc.

4. Organic chemical prodccts:various organic aid, alcohol, benzene, aldehyde, etc.

5. Paint: Resin, vanish, dye, lacquer,etc.

6. Inorganic chemical products : bromine water, potassim cyanide, fluorite, etc.

7. Foodstuff: gelatin, vinegar, starch, syrup, sugar water, etc.

8. Pharmaceutical products: Hydrogen peroxide solution, vitamin, etc.

9. Mineral products: fine coal, cinder, etc.

10 Others; air, depuration of water, etc.

Automatic Discharge Pressure Vertical Leaf Filter Press Equipment  High Efficiency 1



Production Factory

Juneng Group is a large scale manufacturer of industrial products in China. This group principally engaged with the in-house research & development as well as manufacturing of various industrial filters, separators , centrifuges and pumps. The Company is proud to be the leader in such industry with approximately 90% domestic market share in Oils & Fats industry, Chemical industry, Pharmaceutical industry, Beverage industry, Petrol-chemical industry, and now is one of the well-known producers and suppliers in World . The Company now has its three production bases with a total capacity of 280,000 square meters in Nanjing city and Yixing City , permanent workforces not less than 1500 people and the production line is well equipped with more than 2000 inits of advanced production equipment and test Instrumentation .

Automatic Discharge Pressure Vertical Leaf Filter Press Equipment  High Efficiency 2



Our service

During selection process :

1. Professional Engineer wil recommend you the most suitable model according to your requirement.

2. Supply reference process flow chart .

3. Supply on-site installation and operation test

4. Integration for control system and process

5. Customized size and structure

After service :

1. Months guarantee period from machine arriving date.

2. Sufficient spare parts in stock are available .

3. Technicians are availabled for overseas service.

4. 24 hours technical consultation .

5. The customer could get trained by our experienced tecnician.

6. Routine tracing will be done timely.

7. Guide you do the normal maintenance.

8. Suggestions and any comments &reflection from customer would be treated in priority.

9. Markting team will visiting if you need.



FAQ:

1 ) Q: How can we visit your factory?

A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.

If you come from domestic city, air or train directly to Wuxi station. We will pick you up at railway station.

2) Q: How do you ensure the quality of your products?

A: Our Company is a state owned enterprise with more than 30 years experience , strict operation policy is performed, advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing, transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state.

3) Q: What payment methods your company accept?

A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .

4) Q: How long is the warranty time for your products?

A: Our officially promised warranty time is 12 months after commissioning .

5) Q: I haven ' t done business with you company before, how can I trust your company ?

A: Our company has been in Alibaba.com for 10 years, which is longer than most of our fellow suppliers, we have been golden suppliers for years. What ' s more, we have got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate. I hope those above will be persuasive enough. Our Trade Assurance Limit is US$ 42,000,and it will still going up.

6) Q: What ' s the shipment terms and delivery time of your company?

A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.

7) Q: Do you give any Discount?

A: I will surely try my best to help you get those by the best price and good service at the same time.
