Centrifuge Solid Liquid Separation Disc Oil Separator High Rotating Speed

China Centrifuge Solid Liquid Separation Disc Oil Separator High Rotating Speed supplier
Centrifuge Solid Liquid Separation Disc Oil Separator High Rotating Speed supplier Centrifuge Solid Liquid Separation Disc Oil Separator High Rotating Speed supplier Centrifuge Solid Liquid Separation Disc Oil Separator High Rotating Speed supplier Centrifuge Solid Liquid Separation Disc Oil Separator High Rotating Speed supplier

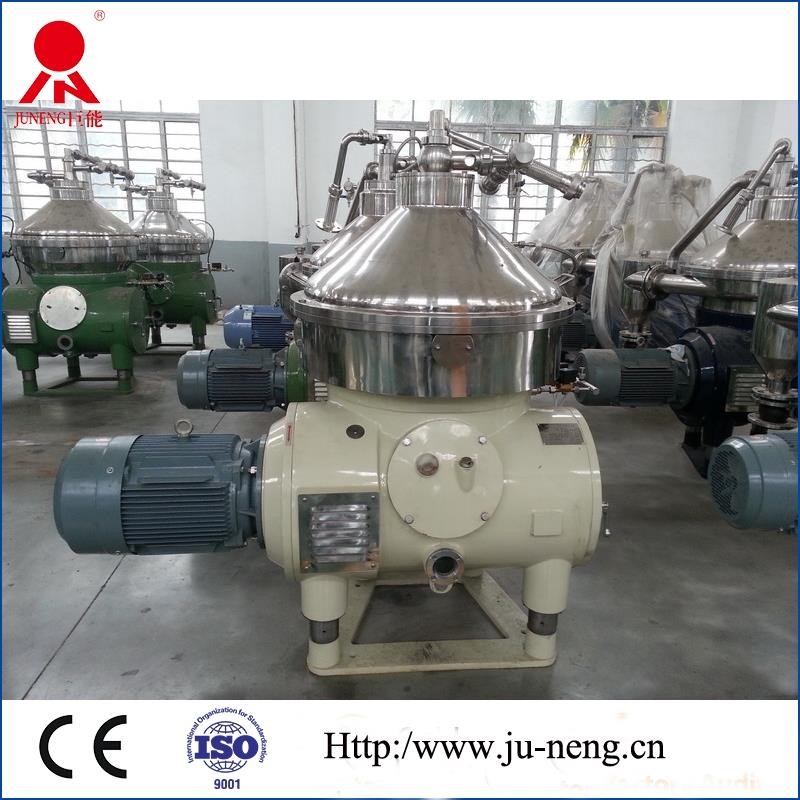

Large Image :  Centrifuge Solid Liquid Separation Disc Oil Separator High Rotating Speed

Product Details:

Place of Origin: Jiangsu China
Brand Name: Juneng
Certification: ISO CE
Model Number: DHZ470

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 10000-100000
Packaging Details: Packed by international standard fumigation wooden case
Delivery Time: 30 days after order
Payment Terms: L/C, T/T
Supply Ability: 1000 set per year
Contact Now
Detailed Product Description
Condition: New Type: Liquid Liquid Soild Separation
Voltage: 220V/380V/400V/440V Power: 15 Kw
Name: Disc Separator Centrifuge After Service: Engineer Availabe To Service On Site

Product Description
Disc type liquid liquid soid 3 phase disc separator centrifuge for edible oil refinery factory is special equipment for oil and fat refining, it has the traits as high rotating speed, operating stability, completely sealed up of the inlet and outlet system, lower noist and fine separating affection. Centripetal pump system designed by our professional designer has the traits as stability outlet pressure, large regulating sphere and operating easily. Also this series separator has professional automatic domination case with safety protection device, advanced automatic vibrating testing instrument can view vibrating testing instrument can view vibrating number at any time. We can make separating and discharing to the best affection from regulate separting parameter directly at the screen.

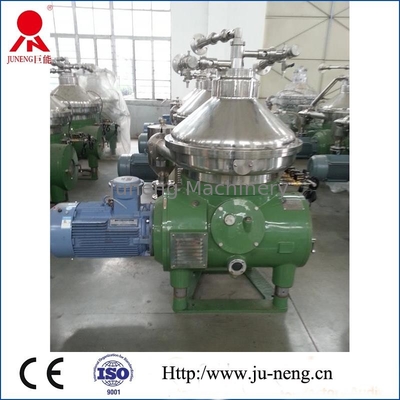

Centrifuge Solid Liquid Separation Disc Oil Separator High Rotating Speed
Product Principle
The disc separator is specially used for the two phase and three phase separation. The two phase separation is to separate the suspended solid from liquid or separate two liquids which have the different specific gravity and are immiscible. The three phase separation is to separate the two immiscible liquid phases and a phase of solid at the same time .

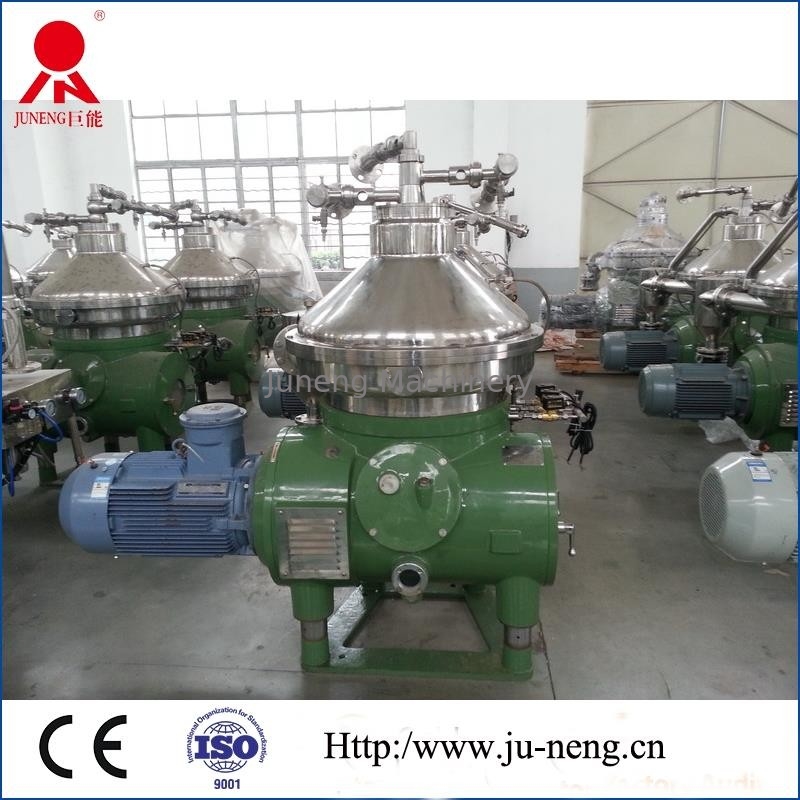

Centrifuge Solid Liquid Separation Disc Oil Separator High Rotating Speed
Product model list

Model Flowrate Inlet pressure Outlet pressure Power Weight
DHZ3601200-2500 LPH 0.05 MPA0.1-0.25 MPA7.5 KW1280 KG
DHZ4702500-7000 LPH0.05 MPA0.1-0.25 MPA15 KW1880 KG
DHZ550A5000-10000 LPH0.05 MPA0.1-0.25 MPA18.5 KW2200 KG
DHZ550E6000-15000 LPH0.05 MPA0.1-0.25 MPA22 KW3000KG
DHZ70015000-30000 LPH0.1 MPA0.2 MPA30 KW3300KG
DRZ3601200-2500 LPH0.05 MPA0.1-0.25 MPA5.5 KW750KG
DRZ400A2000-6000 LPH0.05 MPA0.1-0.3 MPA7.5 KW1150KG
DRZ400E4000-7500 LPH0.05 MPA0.1-0.3 MPA7.5 KW1300 KG
DRZ5506000-18000 LPH0.05 MPA0.1-0.3 MPA22 KW2200 KG

Product Application

Main application Fields

1. Soybean, Rapeseed, sunflower seed, cotton seed

2. Palm oil, Coconut oil, linseed oil

3. Peanut , Corn Germ , Rice bran oil

4. Special oil, such as sesame oil, orange peel oil, safflower oil and so on

Core capacity

1. Degumming

2. Deacidification

3. Dewaxing

4. Fractionation

5. Water washing

6. Squeezed oil clarification

7. Lecithin deoiling

8. Frying oil refining


Production workshop
Our Company employs a team of well-trained professional, adopts advance ERP production management model in-cooperation with state-of-the-art apparatus and processes for manufacturing all kinds of filters, separators, centrifuges amd pumps.
Corporate Reputation
Centrifuge Solid Liquid Separation Disc Oil Separator High Rotating Speed
Our service
During selection process :
1. Professional Engineer wil recommend you the most suitable model according to your requirement.
2. Supply reference process flow chart .
3. Supply on-site installation and operation test
4. Integration for control system and process
5. Customized size and structure
After service :
1. Months guarantee period from machine arriving date.
2. Sufficient spare parts in stock are available .
3. Technicians are availabled for overseas service.
4. 24 hours technical consultation .
5. The customer could get trained by our experienced tecnician.
6. Routine tracing will be done timely.
7. Guide you do the normal maintenance.
8. Suggestions and any comments &reflection from customer would be treated in priority.
9. Markting team will visiting if you need.

FAQ
1) Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.
If you come from domestic city, air or train directly to Wuxi station. We will pick you up at railway station.

2) Q: How do you ensure the quality of your products?
A: Our Company is a state owned enterprise with more than 30 years experience , strict operation policy is performed,advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing,transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state.

3)Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .

4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning .

5) Q: What's the shipment terms and delivery time of your company?
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.

6) Q:Do you give any Discount?
A: I will surely try my best to help you get those by the best price and good service at the same time
