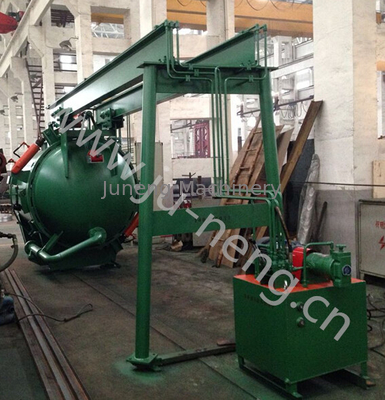

Automatic Hydraulic Control Horizontal Plate Pressure Filter Sunflower Oil Dewaxing

Place of Origin Jiangsu China
Brand Name Juneng
Certification CE ISO9001 ASME
Model Number WYB10 WYB15 WYB 20 WYB25 WYB 30 WYB 40 WYB 50 WYB 60 WYB 70 WYB 80 WYB 90 WYB 100 WYB-120 WYB-150
Minimum Order Quantity 1 set
Price USD 2000-100000 per unit
Packaging Details Internation plywood case and container
Delivery Time 30 days after order
Payment Terms L/C, T/T
Supply Ability 800 sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Maerial Carbon Steel With Paint Or Stainless Steel Condition New
Plate Filter Area 10-150 M2 Product Name Horizontal Pressure Leaf Filter
Voltage 3PH/380V 50HZ, 3PH/415V, 50HZ Warranty 12 Months
Color Standard Greed Or Customised Application Liquid Filtration
After-service Enginner Available For Commissioning Cake Discharge By Vibration Or Water Spray
High Light

horizontal pressure filters

,

horizontal leaf filter

Leave a Message
Product Description



Production Description


WYB horizontal pressure leaf filter is an efficient, energy saving solid-liquid separation equipment of enclosed operation type. It is widely employed in industries such as chemical engineering, petroleum, foodstuff and pharmaceutical, etc.



This product realizes filter without the filter paper and cloth , and the filtration is enclosed prevent environmental pollution, the labor intensity is low thanks to automatic dreg removal. Two units work alternatively can realize continuous production.



Working principle



This product is of novel design, the main body of filter consists of filtration tank, screen, end-plate pullout device, automatic dreg discharging device, etc. During filtering, the filter aid is mixed up with material in the mixing cylinder then transmitted by pump onto the filter screen to form a filter cake layer.



Once the stable filter cake is realized, the feeding shall be stopped, and compressed air or steam shall be employed to blow dry the cake, then discharge the filtration cake .

Automatic Hydraulic Control Horizontal Plate Pressure Filter Sunflower Oil Dewaxing 0



Filter Plates



The filter screen plate is the major component for the filter. It consists of multiple layers of stainless steel screens of different specification. In the middle there is a passage for the filtrate, at the outside there is frame.



At the lower part of screen plate there is a nozzle for the discharge port which is inserted into the collection pipe, in between the nozzle and socket of collection pipe there is rubber “O” ring for sealing.

Automatic Hydraulic Control Horizontal Plate Pressure Filter Sunflower Oil Dewaxing 1



Horizontal Pressure Leaf filter Advantage



1. Filtration area range 5 to 500 Square meter

2. Ideal for high polish applications, 0.1 Micron removal

3. Dry and/ or wet solids discharge .

4. Automated closed system

5. Jackets available- steam/Water/Cooler

6. Control options-semi automatic or fully automatic.





Filter model list



Area Series (m2) : WYB 5,10,15,20,25,30,35,40,45,50,60,70,80,90,100,120,140,160,180,200



Shell Diameter Series (mm) : 900,1200, 1400, 1500, 1600,1700,1800,2000



Work Pressure (Mpa):0.4 Mpa



Work Temperature (℃): 150℃



Promimate Treatment for oil : 0.5 T/H.M2



Main use and Application of Pressure leaf filter :


1.  Filtration of pressed crude oil and remove mechanical impurities ;
2. Filtration of decolored oil and grease with carclazyte ;
3. Dewaxing filtration of oil and grease .


Packing



Plastic film package inside, wooden case  package outside



Automatic Hydraulic Control Horizontal Plate Pressure Filter Sunflower Oil Dewaxing 2

Company detail



Juneng Group is a large scale manufacturer of industrial products in China.



This group principally engaged with the in-house research & development as well as manufacturing of various industrial filters, separators , centrifuges and pumps.



The Company is proud to be the leader in such industry with approximately 90% domestic market share in Oils & Fats industry, Chemical industry, Pharmaceutical industry, Beverage industry, Petrol-chemical industry, and now is one of the well-known producers and suppliers in World .



The Company now has its three production bases with a total capacity of 280,000 square meters in Nanjing city and Yixing City , permanent workforces not less than 1500 people and the production line is well equipped with more than 2000 inits of advanced production equipment and test Instrumentation .



Why Choose Juneng brand



1. International High quality Certification production chain .

2. Manufacturer, more reasonable price .

3. Solid technical support and after-sales service

4. Exports to more than 20 countries and regions, good customers feedback.

5. One-top service, customised Exclusive project feasibility report .





After service :
Automatic Hydraulic Control Horizontal Plate Pressure Filter Sunflower Oil Dewaxing 3
1. Months guarantee period from machine arriving date.
2. Sufficient spare parts in stock are available .
3. Technicians are availabled for overseas service.
4. 24 hours technical consultation .
5. The customer could get trained by our experienced tecnician.
6. Routine tracing will be done timely.
7. Guide you do the normal maintenance.
8. Suggestions and any comments &reflection from customer would be treated in priority.
9. Markting team will visiting if you need.

10. Provide Clients one-yar warranty to make sure the machine work well.

11. We always keep certain inventory level of spare parts, which means the replacement can be sent to you timely.

12. Send every client a preferential quotation.

FAQ:


1 ) Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.
If you come from domestic city, air or train directly to Wuxi station. We will pick you up at railway station.
2) Q: How do you ensure the quality of your products?
A: Our Company is a state owned enterprise with more than 30 years experience , strict operation policy is performed, advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing, transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state.
3) Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .
4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning .
5) Q: I haven ' t done business with you company before, how can I trust your company ?
A: Our company has been in Alibaba.com for 10 years, which is longer than most of our fellow suppliers, we have been golden suppliers for years. What ' s more, we have got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate. I hope those above will be persuasive enough. Our Trade Assurance Limit is US$ 42,000,and it will still going up.
6) Q: What ' s the shipment terms and delivery time of your company?
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.
7) Q: Do you give any Discount?
A: I will surely try my best to help you get those by the best price and good service at the same time.
