Self Cleaning Industrial Oil Separators Fully Automatic Discharge Mode

Place of Origin China(Yixing, Jiangsu)
Brand Name Juneng Machinery
Certification CCS certificate
Model Number KYDH204
Minimum Order Quantity One set
Packaging Details Standard Wooden Case
Delivery Time 10 days
Payment Terms TT, Western Union, L/C
Supply Ability 40 set / months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Function Fuel Oil Separator Purifier , Light Diesel Oil Separator Purifier Name Industrial Oil Separators
Function Self Cleaning Mode Fully Automatic Discharge Mode
High Light

biodiesel separator

,

water oil separators

Leave a Message
Product Description

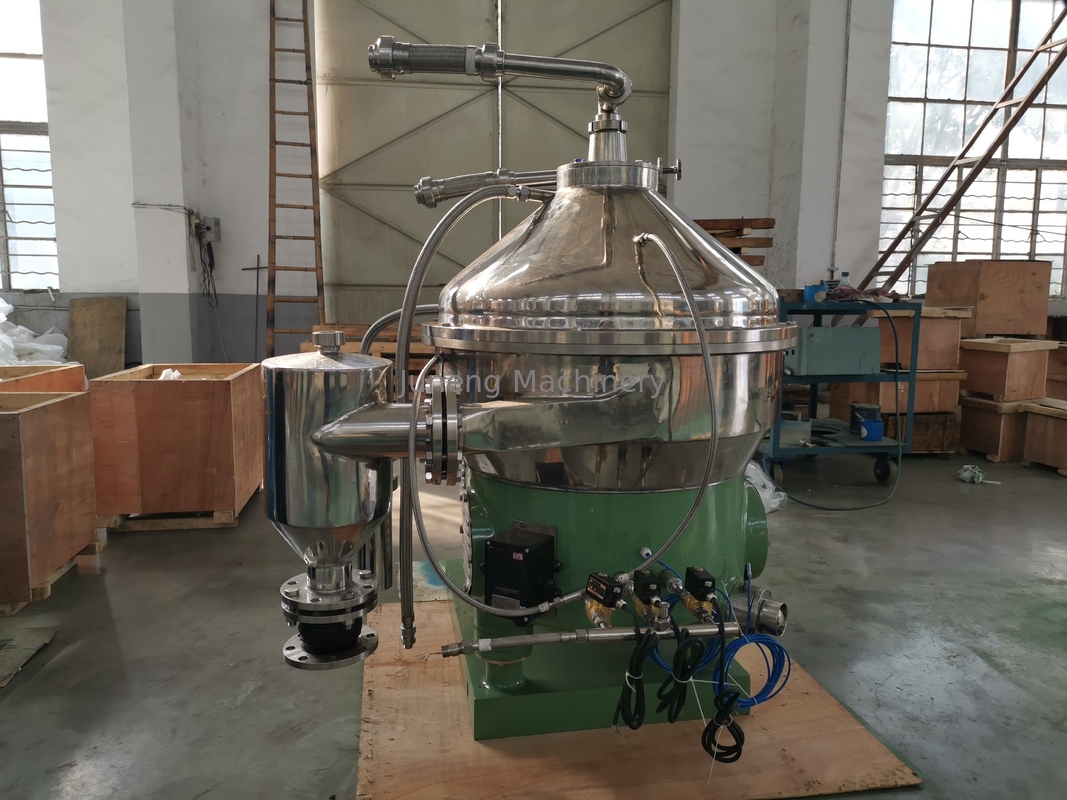

Self Cleaning Industrial Oil Separators Fully Automatic Discharge Mode



Industrial Oil Separators Working Principle



This Industrial Oil Separators is mainly composed of the Inlet/outlet device, drum, vertical shaft, horizontal shaft, speed measuring device, brake device and electric control device. By adopting the structure of the centripetal pump, the separation of the pump can be discharged through the centripetal pump, which can be directly transported to the downstream equipment. All contact part with the material are made of anti- corrosion stainless steel. The drum through the dynamic balancing precision, power transmission adopts frequency conversion start, steady speeding up, overload protection, low running noise, strong separation ability and automation control. The bearings are used in the equipment of the Swedish SKF brand, to ensure the accuracy of the equipment operation. equipped with PLC electric control system for program operation.


Industrial Oil Separators Applications:


Waste Fuel Oil , WATER , SLUDGE SEPARATION



Introduction of Company:



Juneng Group employs a team of well-trained professional, adopts advance EPR production management model in cooperation with state–of–the–art apparatus and process i.e. CNC Turner, Machine Center, Highly Accuracy Test Instrumentation, Quality and Process Control System to ensure quality, stability, and reliability of every product.



Industrial Oil Separators advantage:



Stable operation, fully closed of inlet and outlet system, low noise, good separation, high oil rate, fully automatic control , easy to operate.


Industrial Oil Separators Specifications:



Model

Treatment
capacity (L/H)

Inlet
pressure (Mpa)

Outlet
pressure (Mpa)

Motor
power (Kw)

Weight(Kg)

Outline
dimension (mm)

HYDH204

2000

0.05

0.2

4

573

720*800*1100





PLC Of Industrial Oil Separators
