| Brand Name: | Juneng Machinery |
| Model Number: | DRJY205 |
| MOQ: | Negotiation |
| Price: | Negotiable |
| Delivery Time: | 20 days |
| Payment Terms: | TT |

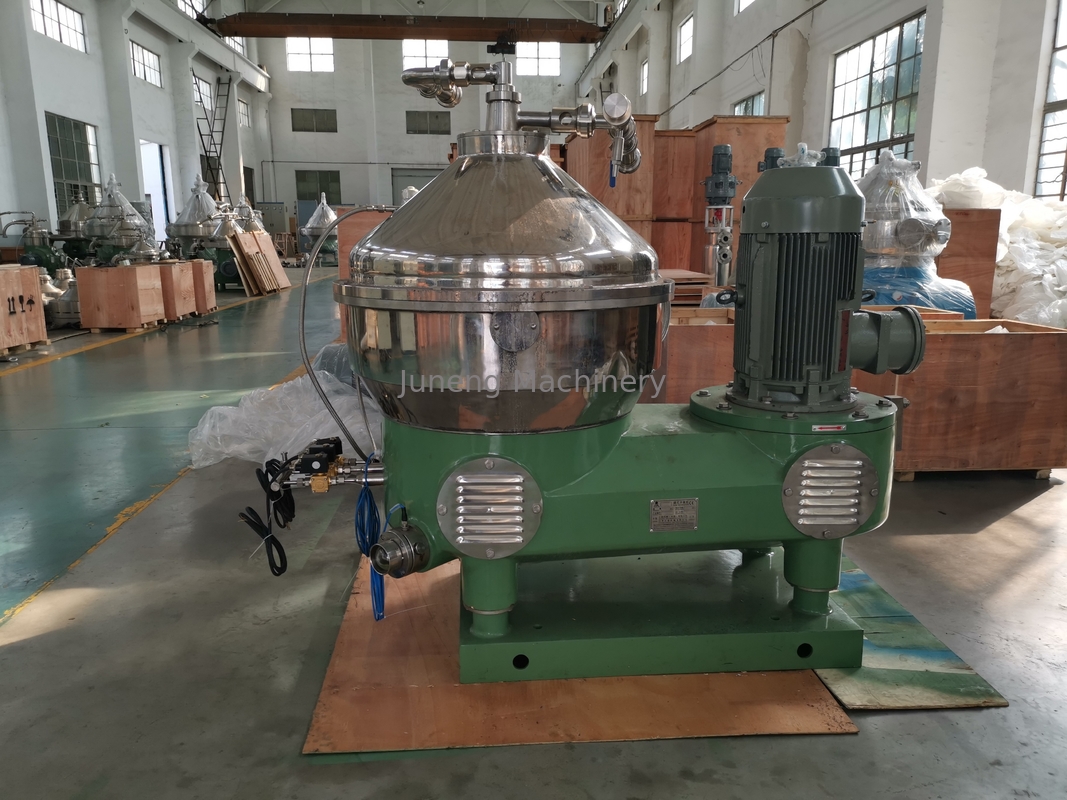

Low Noise Oil Separator Machine / Stainless Steel Disc Stack Separator
Oil Separator Machine Feature
1. Automatic discharge mode, include partly discharge and fully discharge
2. Applied Labyrinth seal mode, centripetal pump discharge light liquid, with a big outlet pressure, separated light liquid can be directly transported.
3. Centripetal pump system with stable output pressure, large adjustment range, easy operation.
4. Power transmission applied frequency conversion start, running smoothly, no noise and odor pollution.
5. This series disc centrifuge specially designed with safety protection device of automatic control cabinet, all parameters can be adjusted directly r on the touch screen, so that the separation of discharge achieve the best effect.
6. With electric motor protection device (including automatic start-up and normal operation).
7. Small piston with double piston structure, large amount of discharge and more stable, low power consumption, more energy saving.
8. Light or heavy liquid phase outlet could be adjusted by online pressure regulating structure, clarity of light or heavy phase can be adjusted according to end user request.
9. Panel control clear and intuitive, simple and easy operation
Oil Separator Machine Specification
|
Model |
Treatment capacity (L/H) |
Inlet pressure (Mpa) |
Outlet pressure (Mpa) |
Motor power (Kw) |
Weight(Kg) |
Outline dimension (mm) |
|
DRJY205 |
100-150 |
0.01-0.1 |
0.1-0.2 |
4 |
520 |
810*850*1350 |
Oil Separator Machine Applications
Milk cream separator
Beverage orange juice industry
Any Liquid-solid separator,algae separator
