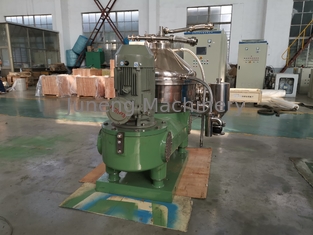

Two Phases Lube Oil Separator , High Centrifugal Oil Water Separator Filter

Product Details:
Place of Origin: China(Yixing, Jiangsu)
Brand Name: Juneng Machinery
Certification: CE
Model Number: DHSY470
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Standard Wooden Case
Delivery Time: 60 days
Payment Terms: TT
Supply Ability: 40 set / months
Contact Now

Detail Information

Name: Lube Oil Separator Phases: Two Phases
Feature: High Centrifugal Other Name: Oil Water Separator Filter

Product Description

Two Phases Lube Oil Separator , High Centrifugal Oil Water Separator Filter


Lube Oil Separator Operating principle:



After entering the rotating drum with high speed, the turbid liquid enters the disc pile along the channel. The multi-components of different densities form three dynamic concentric rings under the action of strong eccentricity, and the small density of solid particles is outward. The movement accumulates on the peripheral wall of the drum to form the outermost layer; the dense phase heavy liquid is thrown to the lower surface of the disc, and slides down the disc area to form an intermediate layer; the light phase liquid with a lower density is turned to the drum The center moves to form the innermost. then. The three components formed are discharged from the respective drums by respective channels.


Lube Oil Separator Applications:

1 , Separation of methyl ester, glycerin, catalyst, de-soap, methanol
2, Methyl washing
3, Extraction of fatty acids
4, Glycerol desalination

History:

Juneng Group was established at 1987. It has 23 year history. Now its three production bases with a total capacity of 280000 square meters in Nanjing City and Yixing City of Jiangsu Province.

Juneng’s success is contributed by the commitment of every member of the Company. In addition, the specialty and potential of each member is being respected and disinterred.

Lube Oil Separator advantage:
High speed, stable operation, fully closed of inlet and outlet system, low noise, good separation, high oil rate, fully automatic control , easy to operate.

Lube Oil Separator Specifications:


Model

Treatment
capacity (L/H)

Inlet
pressure (Mpa)

Outlet
pressure (Mpa)

Motor
power (Kw)

Weight(Kg)

Outline
dimension (mm)

DHSY470

4000-7000

0.05

0.1-0.3

15

1880

1800*1200*1800

DHSY550

6000-15000

0.05

0.1-0.3

22

2200

1850*1550*2050


Two Phases Lube Oil Separator , High Centrifugal Oil Water Separator Filter
