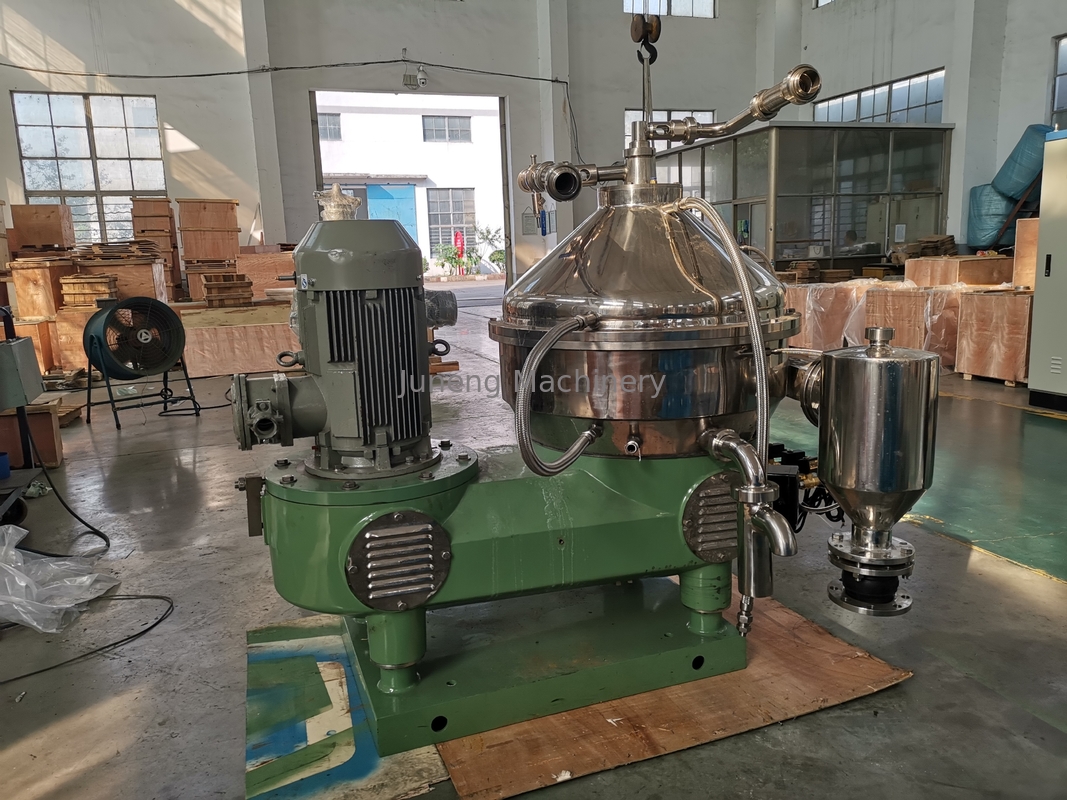

Automatic Industrial Oil Separators With PLC Control Operated 1000-10000L/H

Product Details:
Place of Origin: China(Yixing, Jiangsu)
Brand Name: Juneng Machinery
Certification: CE
Model Number: DHSY360
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Wooden Case
Delivery Time: 30 days
Payment Terms: TT, L/C
Supply Ability: 30 set / months
Contact Now

Detail Information

Capacity: 1000-10000L/H Name: Industrial Oil Separators
Feature: Automatic Control: PLC Control

Product Description

Automatic Industrial Oil Separators With PLC Control Operated 1000-10000L/H



Industrial Oil Separators Description:



the disc stack separator separates solids and one or two liquid phases from each other in one single continuous process, using extremely high centrifugal forces. When the denser solids are subjected to such forces, they are forced outwards against the rotating bowl wall, while the less dense liquid phases form concentric inner layers. The area where these two different liquid phases meet is called the interface position. This can be easily varied in order to ensure that the separation takes place with maximum efficiency. Inserting special plates (the "disc stack") provides additional surface settling area, which contributes to speeding up the separation process dramatically. It is the particular configuration, shape and design of these plates that make it possible for a disc stack centrifuge to undertake the continuous separation of a wide range of different solids from either one or two liquids. The concentrated solids phase formed by the particles can be removed continuously, intermittently or manually, depending on centrifuge type and the amount of solids involved in the specific application.


Industrial Oil Separators Applications:

1 , Separation of methyl ester, glycerin, catalyst, de-soap, methanol

2, Methyl washing

3, Extraction of fatty acids

4, Glycerol desalination




Industrial Oil Separators advantage:



PLC program control with easy operatin , High speed, stable operation, fully closed of inlet and outlet system, low noise, good separation, high oil rate, fully automatic control , easy to operate.


Product Specifications:



Model

Treatment
capacity (L/H)

Inlet
pressure (Mpa)

Outlet
pressure (Mpa)

Motor
power (Kw)

Weight(Kg)

Outline
dimension (mm)

DHSY360

1200-2500

0.05

0.1-0.25

7.5

1280

1500*1150*1500



Industrial Oil Separators PLC



Automatic Industrial Oil Separators With PLC Control Operated 1000-10000L/H
